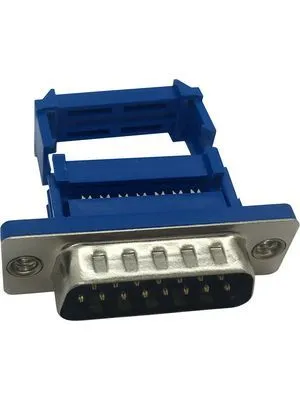

D-Sub Plug - 9 pol han til fladkabel
Varenummer:
87-936
Varekode: LPSL09RZ
Vægt: 7 g
7 stk.
på lager
Specifikationer
| Stik-familie | D-SUB |
|---|---|
| Antal poler | 9 |
Features
| • Compatible with all D-Sub connectors • With strain relief |
 |
| Technical Specifications |
|
|
| Insulation Shell: | PBT, UL94V-0 |
| Contact Material: | Copper Alloy |
| Contact Surface: | Selective Gold |
| Housing Frame: | Steel, Tin-plated |
| Rated Current: | 3,0A |
| Dielectric Strength (1Min.): | 500VRMS |
| Temperature Range: | -55...+105°C |
|
|
| Dimensions |
| Part Nr. | A | B | C | E |
| [mm] | [mm] | [mm] | [mm] | |
| LPSL09RZM | 30,81 | 24,99 | 16,92 | 10,16 |
| LPSL15RZM | 39,14 | 33,32 | 25,50 | 17,78 |
| LPSL25RZM | 53,04 | 47,04 | 38,96 | 30,48 |
Inkl. moms
Kr. 12,50
- v/10 – Kr. 10,62
- v/25 – Kr. 9,06
- v/100 – Kr. 6,25
