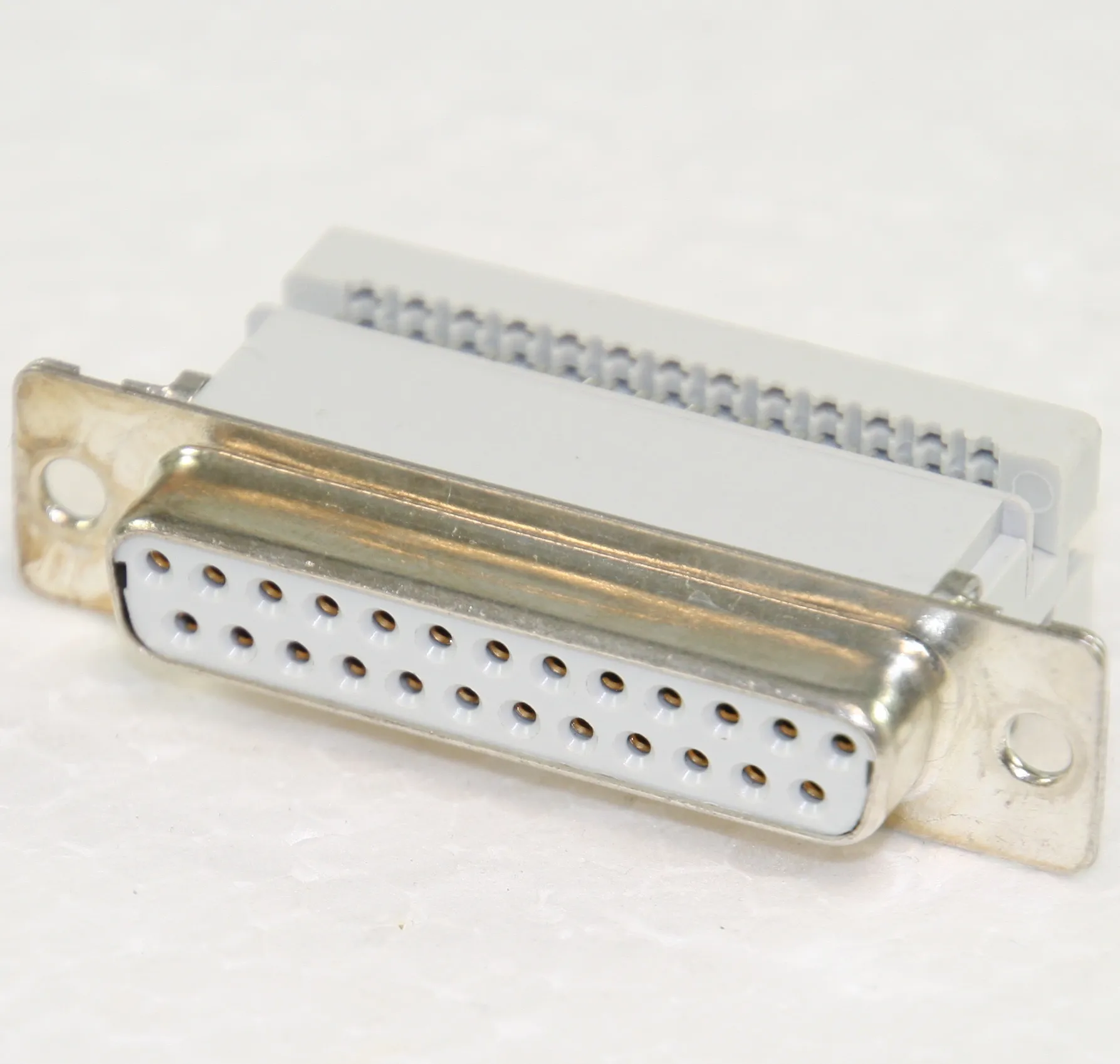

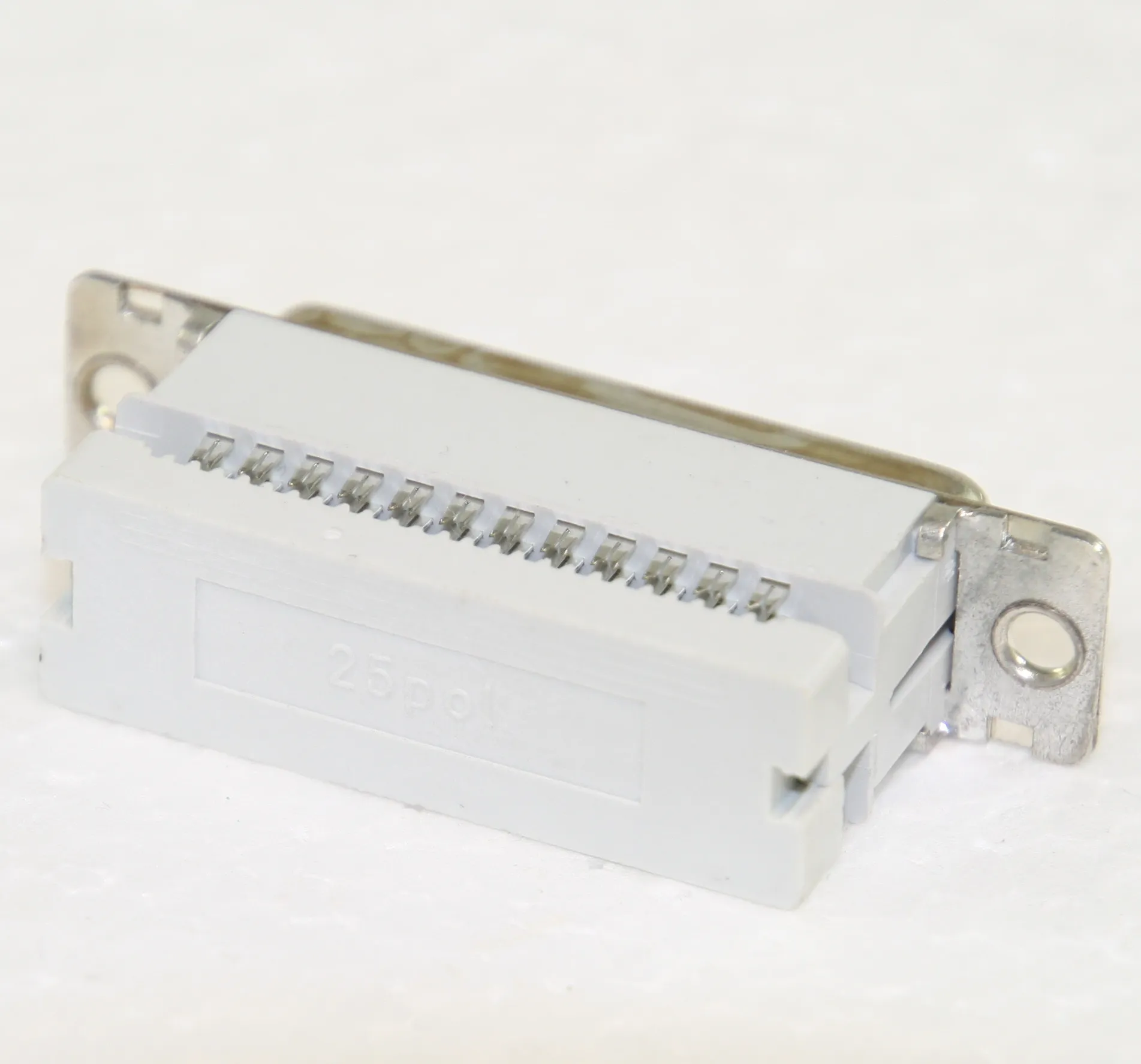

D-Sub-Socket 25-Pole for FLAT Cable
Varenummer:
87-934
Varekode: LPBL25RZ
Vægt: 13 g
22 stk.
på lager
Specifikationer
| Stik-familie | D-SUB |
|---|---|
| Antal poler | 25 |
Gruppe: F4691
GSN D-Sub Sockets
Series: LPBL_RZ
Low Profile IDC for Flat Cables
| Features |
| • Compatible with all D-Sub connectors • With Strain Relief |
| Technical Specifications |
 |
|
| Insulation Shell: | PBT, UL94V-0 |
| Contact Material: | Copper Alloy |
| Contact Surface: | Selective Gold |
| Housing Frame: | Steel, Tin-plated |
| Rated Current: | 3,0A |
| Dielectric Strength (1Min.): | 500VRMS |
| Temperature Range: | -55...+105°C |
|
|
| Dimensions |
| Part Nr. | A | B | D | E |
| [mm] | [mm] | [mm] | [mm] | |
| LPBL09RZM | 30,81 | 24,99 | 16,33 | 10,16 |
| LPBL15RZM | 39,14 | 33,32 | 24,66 | 17,78 |
| LPBL25RZM | 53,04 | 47,04 | 38,38 | 30,48 |
| LPBL37RZM | 69,32 | 63,50 | 54,84 | 45,72 |
|
||||
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 5 pieces |
|
| Manufacturer |
 |
