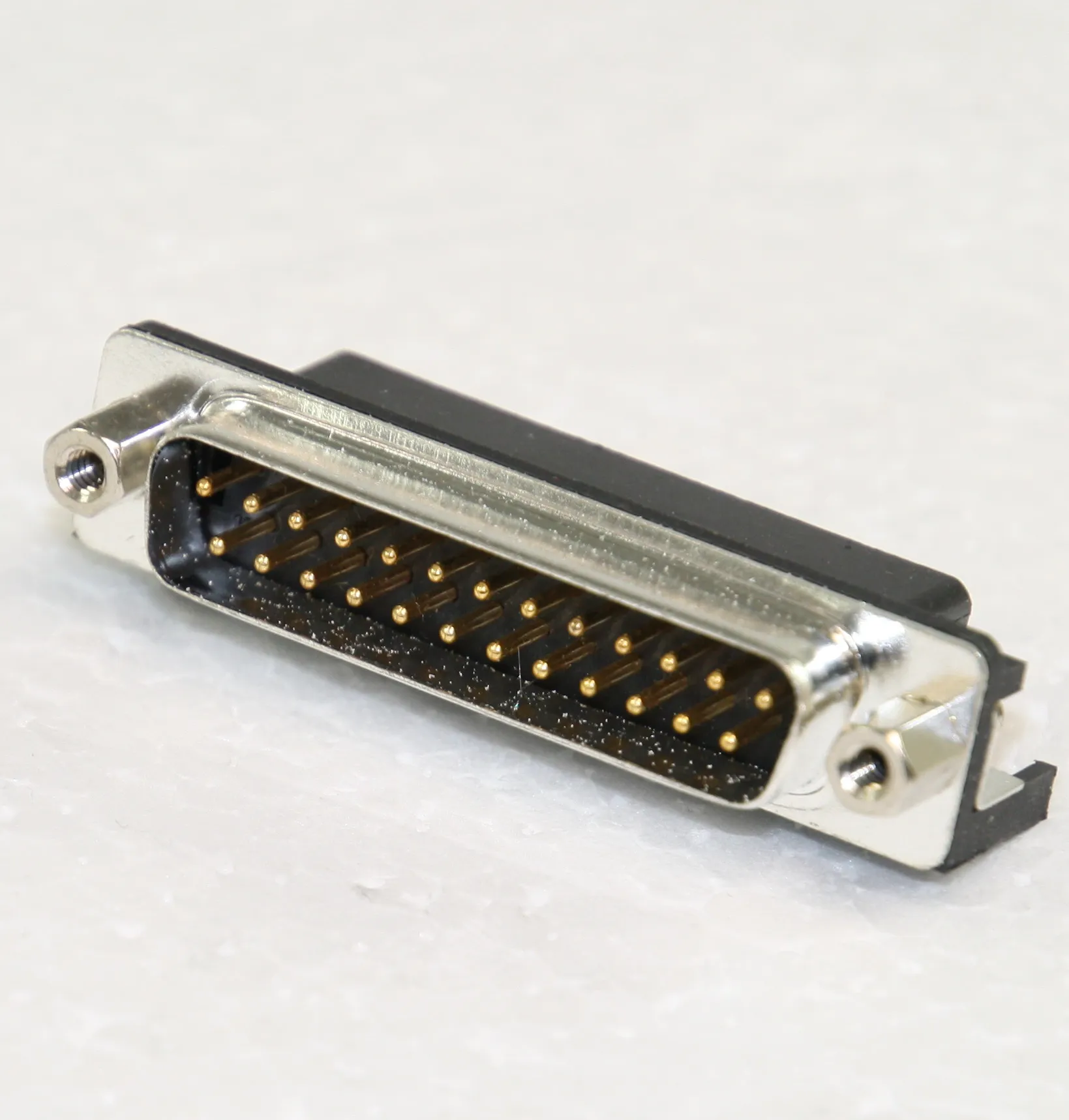

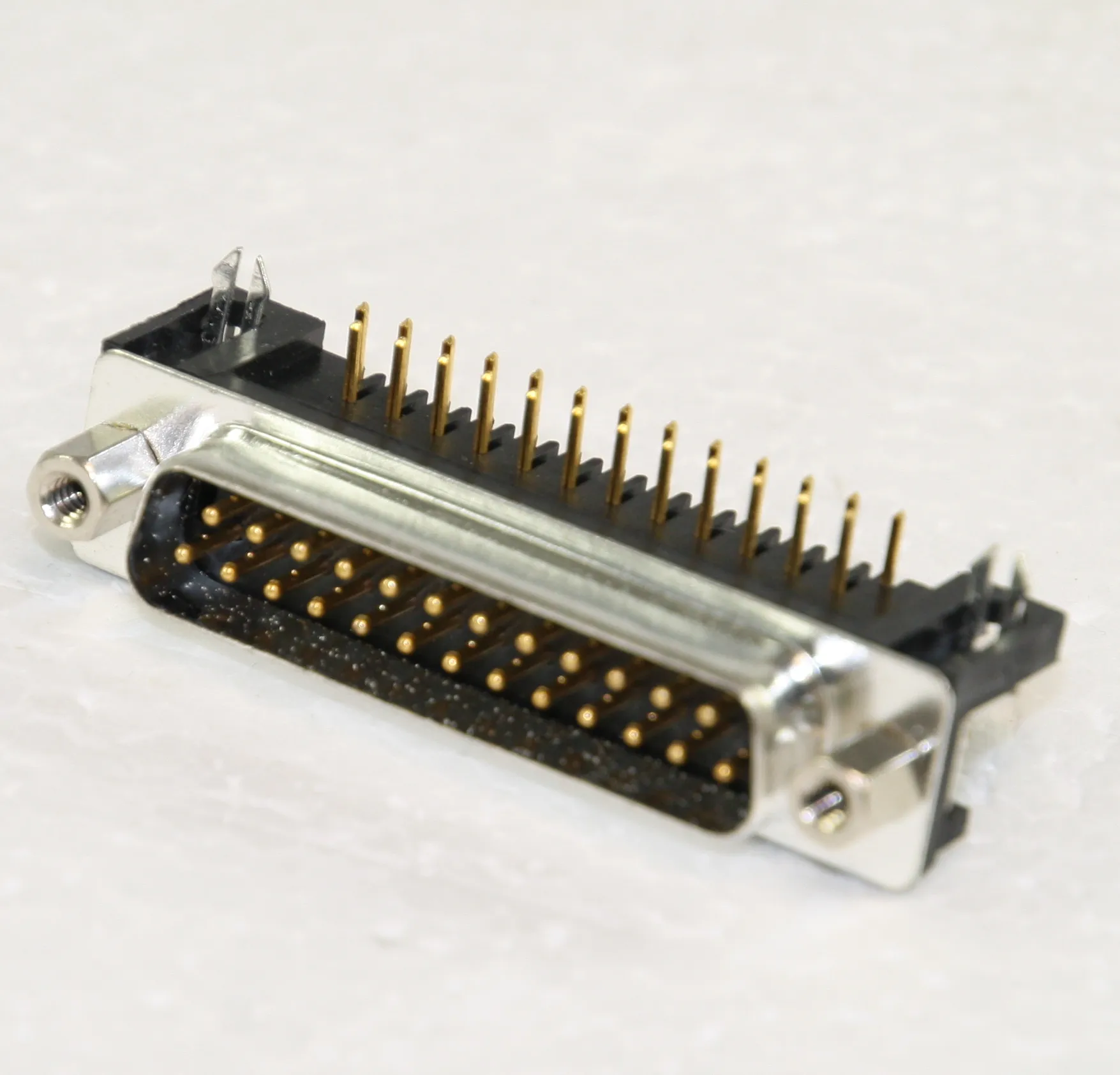

D-Sub-Plug 25-Pole Solder Pin FP8,08
Varenummer:
87-901
Varekode: SL25WSI
Vægt: 12 g
113 stk.
på lager
Specifikationer
| Stik-familie | D-Sub |
|---|---|
| Antal poler | 25 |
Gruppe:
F4616
GSN D-Sub Plugs
Series: SL_WSI
Snap-In, Angled
Footprint: 8,08mm
Contacts: Stamped
GSN D-Sub Plugs
Series: SL_WSI
Snap-In, Angled
Footprint: 8,08mm
Contacts: Stamped
| Technical Specifications |
 | |
| Insulating Shell: | PBT, UL94V-0 |
| Contacts: | Cu-Alloy |
| Contact Surface: | Selective Flash Gold |
| Housing Frame: | Steel, Tin-plated |
| Operating Current: | 5A |
| Dielectric Strength: | 1000V AC |
| Insulation Resistance, Min.: | 500MW |
| Contact Resistance, Max.: | 30mW |
| Temperature Range: | -40...+85C |
| |
| Dimensions |
| Part Nr. | Poles | A | B | C |
| [mm] | [mm] | [mm] | ||
| SL09WSI | 9 | 16,92 | 24,99 | 30,81 |
| SL15WSI | 15 | 25,25 | 33,32 | 39,14 |
| SL25WSI | 25 | 38,96 | 47,04 | 53,04 |
| ||||
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces Delivery contents: Adapter bolts with thread UNC4-40 |
|
| Manufacturer |
 |
| http://www.gsn.cn.com |
|
