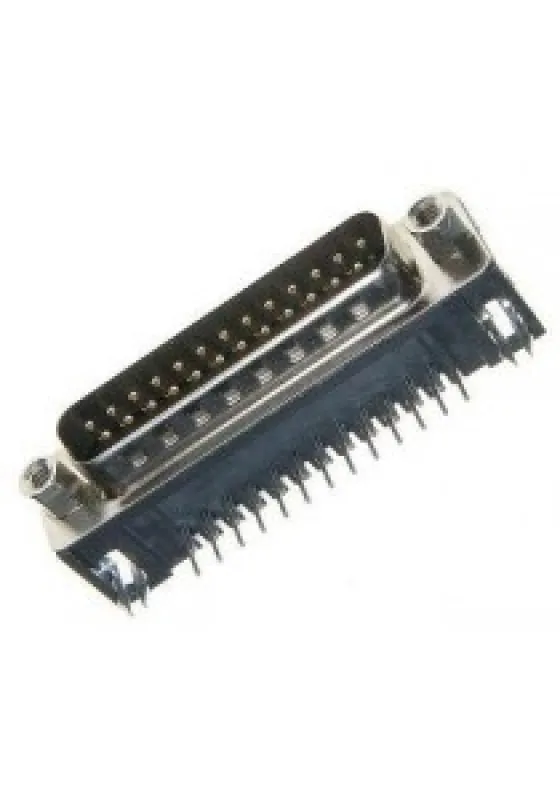

D-Sub-Plug 25-Pole Solder Pin FP10.3
Varenummer:
87-893
Varekode: SL25EU
Vægt: 15 g
27 stk.
på lager
Bestil inden kl. 14 i dag for afsendelse i dag
Yderligere kan skaffes tirsdag d. 10/11
Specifikationer
| Stik-familie | D-Sub |
|---|---|
| Antal poler | 25 |
Gruppe: F4614
GSN D-Sub Plugs
Series: SL_EU
Snap-In, Angled
Footprint: 10,3mm
Contacts: Stamped
Technical Specifications
 |
|
| Insulation Shell: | Thermoplastic, UL94V-0 |
| Contact Material: | Copper Alloy |
| Contact Surface: | Au-plated |
| Rated Current: | 3,0A |
| Rated Voltage: | 125VRMS/V DC |
| Dielectric Strength (1Min.): | 500VRMS |
| Temperature Range: | -55...+105°C |
| Short Term (10s): | +230°C |
|
|

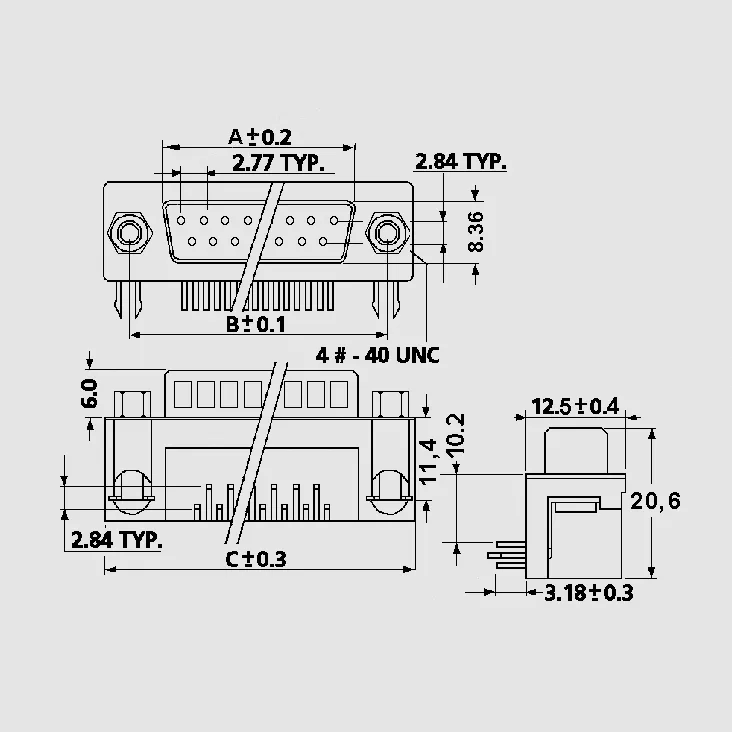

| Dimensions |
| Part Nr. | A | B | C |
| [mm] | [mm] | [mm] | |
| SL09EU | 30,81 | 24,99 | 16,92 |
| SL15EU | 39,14 | 33,32 | 25,25 |
| SL25EU | 53,04 | 47,04 | 38,96 |
|
|||
