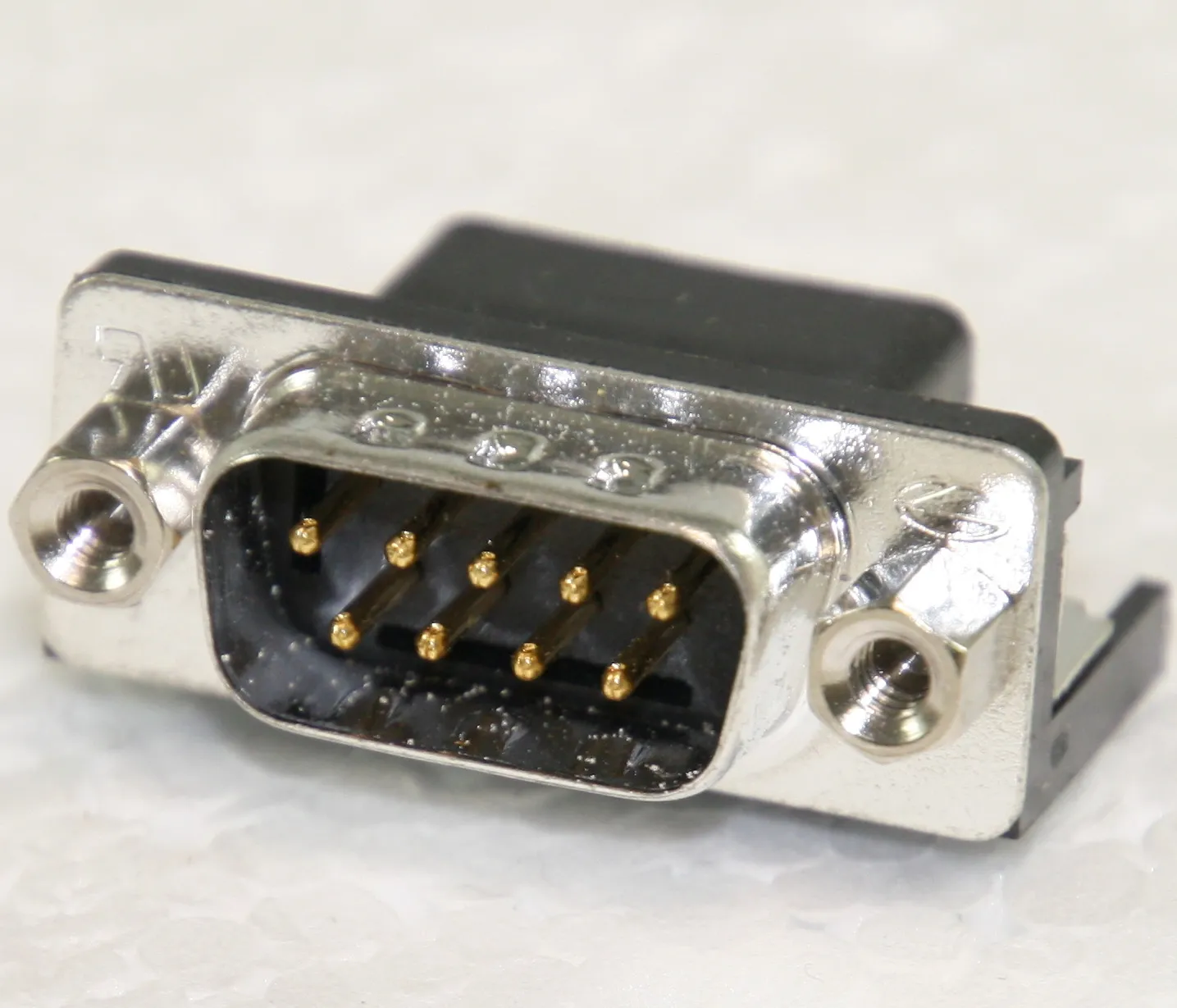

D-Sub Plug 9-Pole Solder Pin FP9,4
Varenummer:
87-891
Varekode: SL09EU
Vægt: 9 g
164 stk.
på lager
Specifikationer
| Stik-familie | D-Sub |
|---|---|
| Antal poler | 9 |
Technical Specifications
 |
|
| Insulation Shell: | Thermoplastic, UL94V-0 |
| Contact Material: | Copper Alloy |
| Contact Surface: | Au-plated |
| Rated Current: | 3,0A |
| Rated Voltage: | 125VRMS/V DC |
| Dielectric Strength (1Min.): | 500VRMS |
| Temperature Range: | -55...+105°C |
| Short Term (10s): | +230°C |
|
|
| Dimensions |
| Part Nr. | A | B | C |
| [mm] | [mm] | [mm] | |
| BL09EU | 30,81 | 24,99 | 16,92 |
| BL15EU | 39,14 | 33,32 | 25,25 |
| BL25EU | 53,04 | 47,04 | 38,96 |
Inkl. moms
Kr. 10,10
- v/10 – Kr. 8,82
- v/25 – Kr. 8,18
- v/100 – Kr. 6,30
- v/1000 – Kr. 5,66
