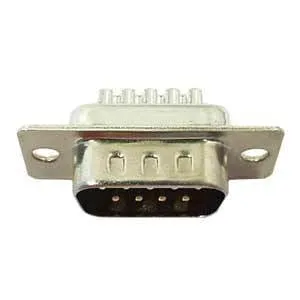

D-Sub Plug 9-Pole Solder Han
Varenummer:
87-883
Varekode: SL09LR
Vægt: 4 g
279 stk.
på lager
Specifikationer
| Stik-familie | D-Sub |
|---|---|
| Antal poler | 9 |
Gruppe:
F4612
GSN D-Sub Plugs
Series: SL_LR
Solder Cup
Contacts: Stamped
| Technical Specifications |
 |
|||||||||||||||||||
| Insulating Shell: | PBT, UL94V-0 | Contacts: | Cu-Alloy | Contact Surface: | Selective Flash Gold | Housing Frame: | Steel, Tin-plated | Operating Current: | 5A | Dielectric Strength: | 1000V AC | Insulation Resistance, Min.: | 1000MW | Contact Resistance, Max.: | 30mW | Temperature Range: | -40...+85°C | ||
|
|||||||||||||||||||
| Dimensions |
| Part Nr. | Poles | A | B | C | D | [mm] | [mm] | [mm] | [mm] | SL09LR | 9 | 16,92 | 24,99 | 30,78 | 19,28 | SL15LR | 15 | 25,25 | 33,32 | 39,18 | 27,65 | SL25LR | 25 | 38,96 | 47,04 | 53,04 | 41,30 | SL37LR | 37 | 55,42 | 63,50 | 69,32 | 57,44 | ||||||||
|
|||||||||||||||||||||||||||||||||||||||||
| Note |
| • You will find suitable mounting brackets and assemblies (bolts, nuts, washers and spring rings) in product group F4793. |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
 |
| http://www.gsn.cn.com |
|
Inkl. moms
Kr. 9,34
- v/10 – Kr. 6,64
- v/25 – Kr. 4,67
- v/100 – Kr. 2,69
- v/1000 – Kr. 1,73
