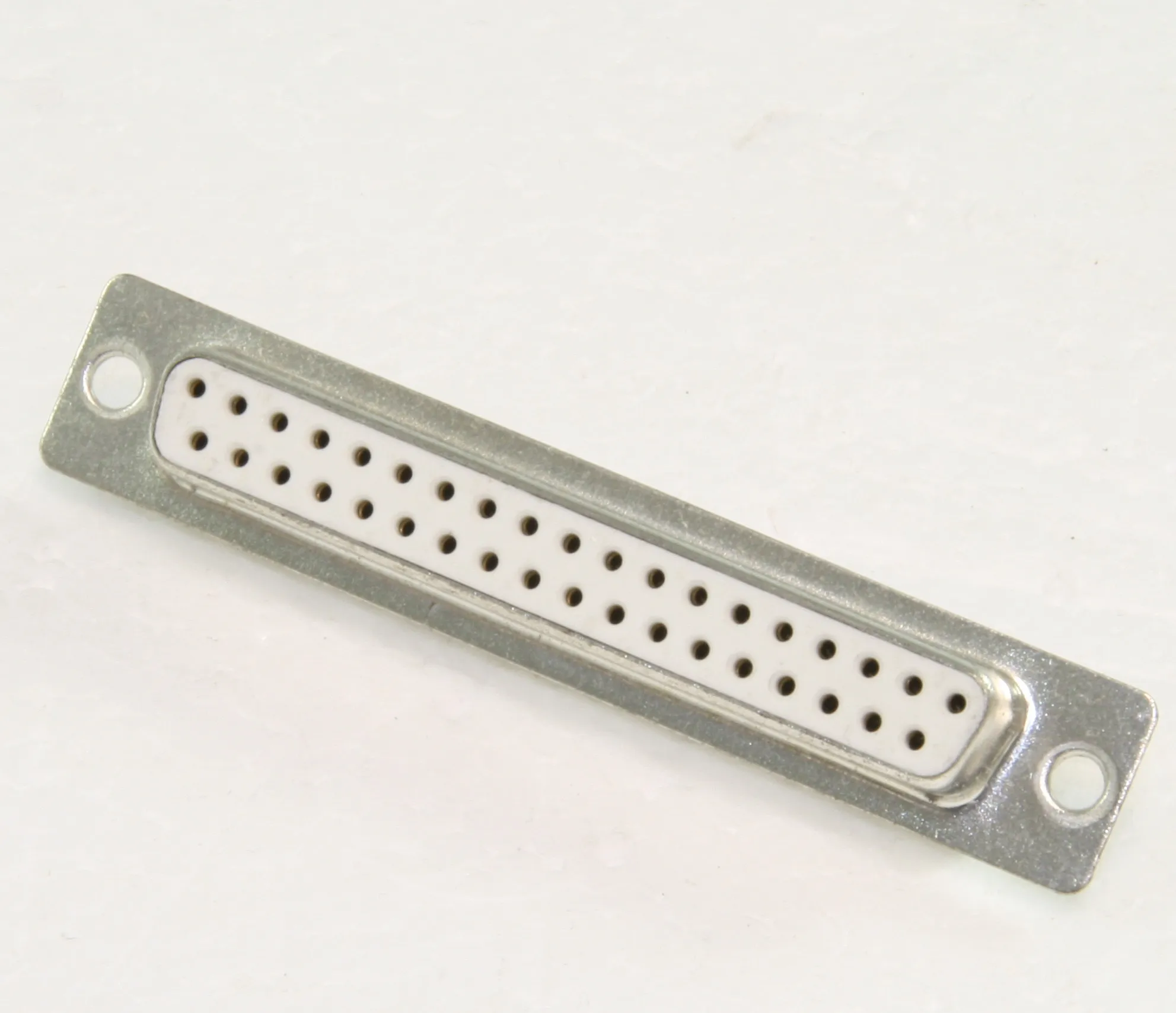

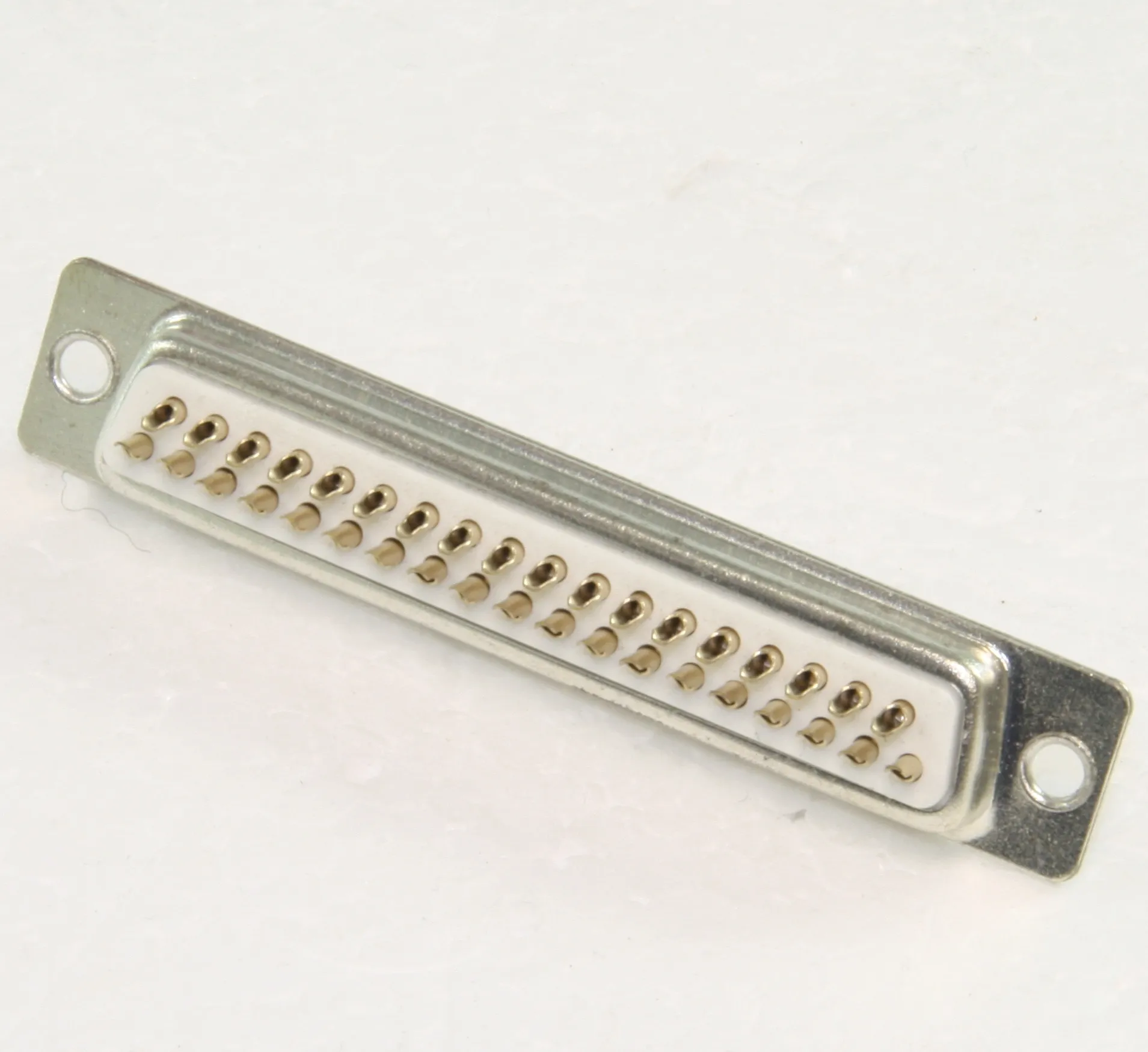

D-Sub-Socket 37-Pole Solder Cup
Varenummer:
87-882
Varekode: BL37LR
Vægt: 14 g
1010 stk.
på lager
Bestil inden kl. 14 i dag for afsendelse i dag
Yderligere 1270 stk. kan skaffes tirsdag d. 10/11
Specifikationer
| Stik-familie | D-Sub |
|---|---|
| Antal poler | 37 |
Gruppe:
F4611
GSN D-Sub Sockets
Series: BL_LR
Solder Cup
Contacts: Stamped
GSN D-Sub Sockets
Series: BL_LR
Solder Cup
Contacts: Stamped
| Technical Specifications |
 | |
| Insulating Shell: | PBT, UL94V-0 |
| Contacts: | Cu-Alloy |
| Contact Surface: | Selective Flash Gold |
| Housing Frame: | Steel, Tin-plated |
| Operating Current: | 5A |
| Dielectric Strength: | 1000V AC |
| Insulation Resistance, Min.: | 1000MW |
| Contact Resistance, Max.: | 30mW |
| Temperature Range: | -40...+85C |
| |
| Dimensions |
| Part Nr. | Poles | A | B | C | D |
| [mm] | [mm] | [mm] | [mm] | ||
| BL09LR | 9 | 16,33 | 24,99 | 30,85 | 19,20 |
| BL15LR | 15 | 24,66 | 33,32 | 39,10 | 27,70 |
| BL25LR | 25 | 38,38 | 47,04 | 53,00 | 41,10 |
| BL37LR | 37 | 54,84 | 63,50 | 69,32 | 57,30 |
| |||||
| Note |
| You will find suitable mounting brackets and assemblies (bolts, nuts, washers and spring rings) in product group F4793. |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
 |
| http://www.gsn.cn.com |
|
