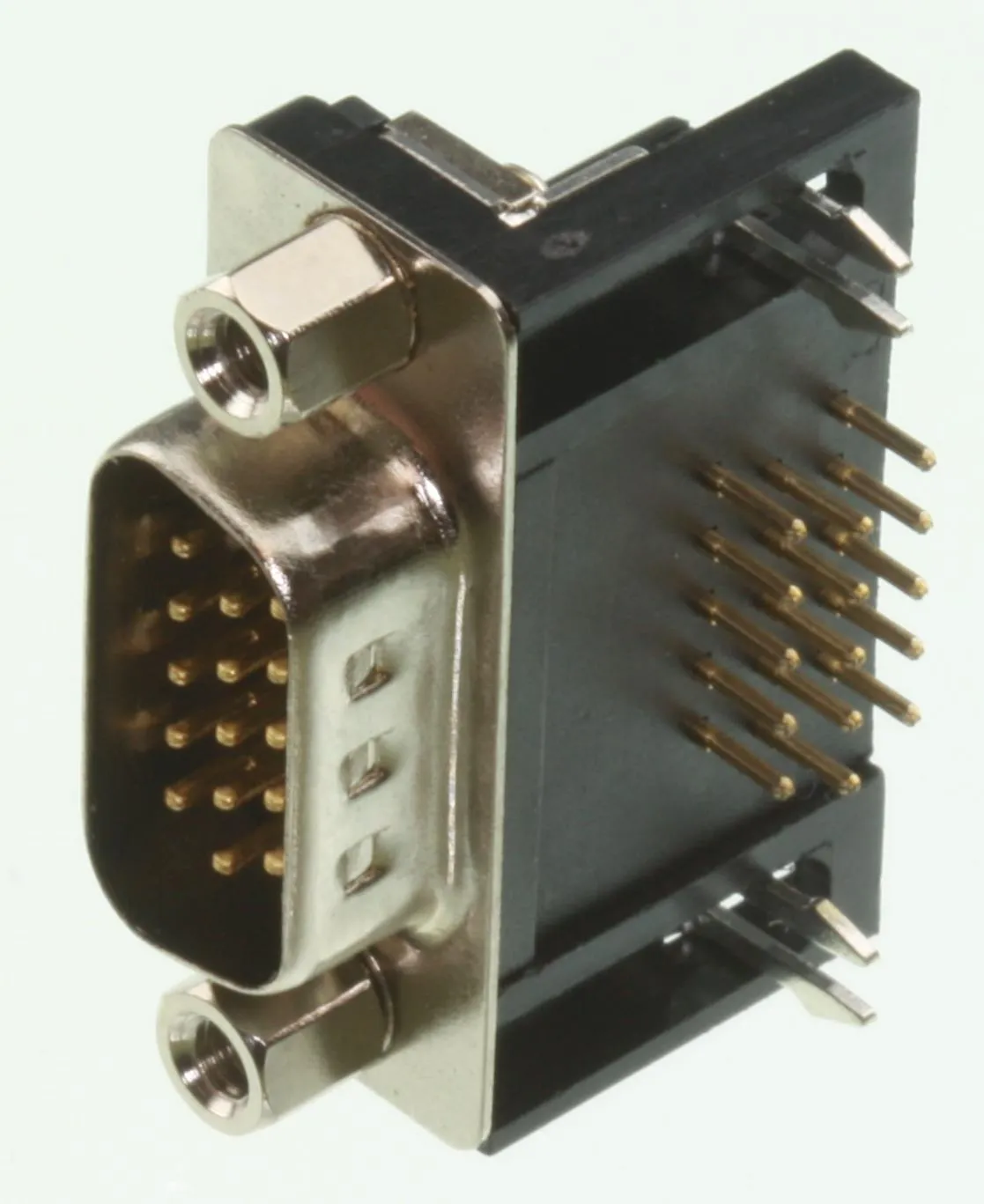

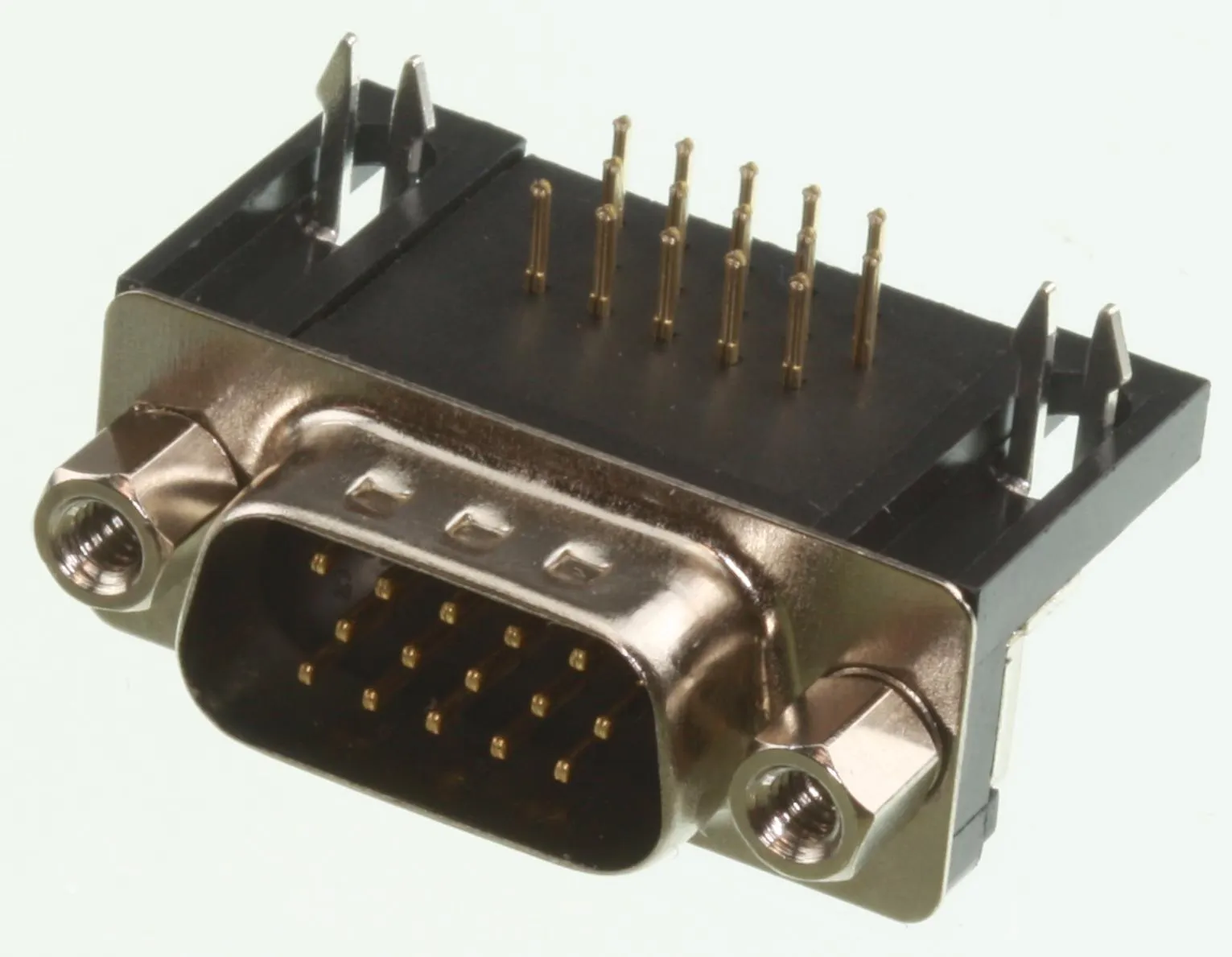

HD D-Sub-Plug 15-Pole Solder Pin
Varenummer:
87-877
Varekode: HDSL15WSI
Vægt: 11 g
9 stk.
på lager
Specifikationer
| Stik-familie | D-Sub HD |
|---|---|
| Antal poler | 15 |
Gruppe:
F4534
GSN HD D-Sub Plugs
Series: HDSL_WSI
Snap-In, Angled
Contacts: Stamped
GSN HD D-Sub Plugs
Series: HDSL_WSI
Snap-In, Angled
Contacts: Stamped
| Technical Specifications |
 | |
| Insulating Shell: | PBT, UL94V-0 |
| Contacts: | Cu-Alloy |
| Contact Surface: | Selective Flash Gold |
| Housing Frame: | Steel, Tin-plated |
| Operating Current: | 5A |
| Dielectric Strength: | 1000V AC |
| Insulation Resistance, Min.: | 500MW |
| Contact Resistance, Max.: | 30mW |
| Temperature Range: | -40...+85C |
| |
| Dimensions |
| Part Nr. | Poles | A | B | C | D |
| [mm] | [mm] | [mm] | [mm] | ||
| HDSL15WSI | 15 | 16,92 | 24,99 | 30,81 | 2,29 |
| HDSL44WSI | 44 | 38,96 | 47,04 | 53,04 | 2,29 |
| |||||
| Note |
| You will find adapter screw bolts with thread UNC4-40 in this catalogue at product group G8285. |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces HDSL44WSI: 1 PKU = 5 pieces |
|
| Manufacturer |
 |
| http://www.gsn.cn.com |
|
