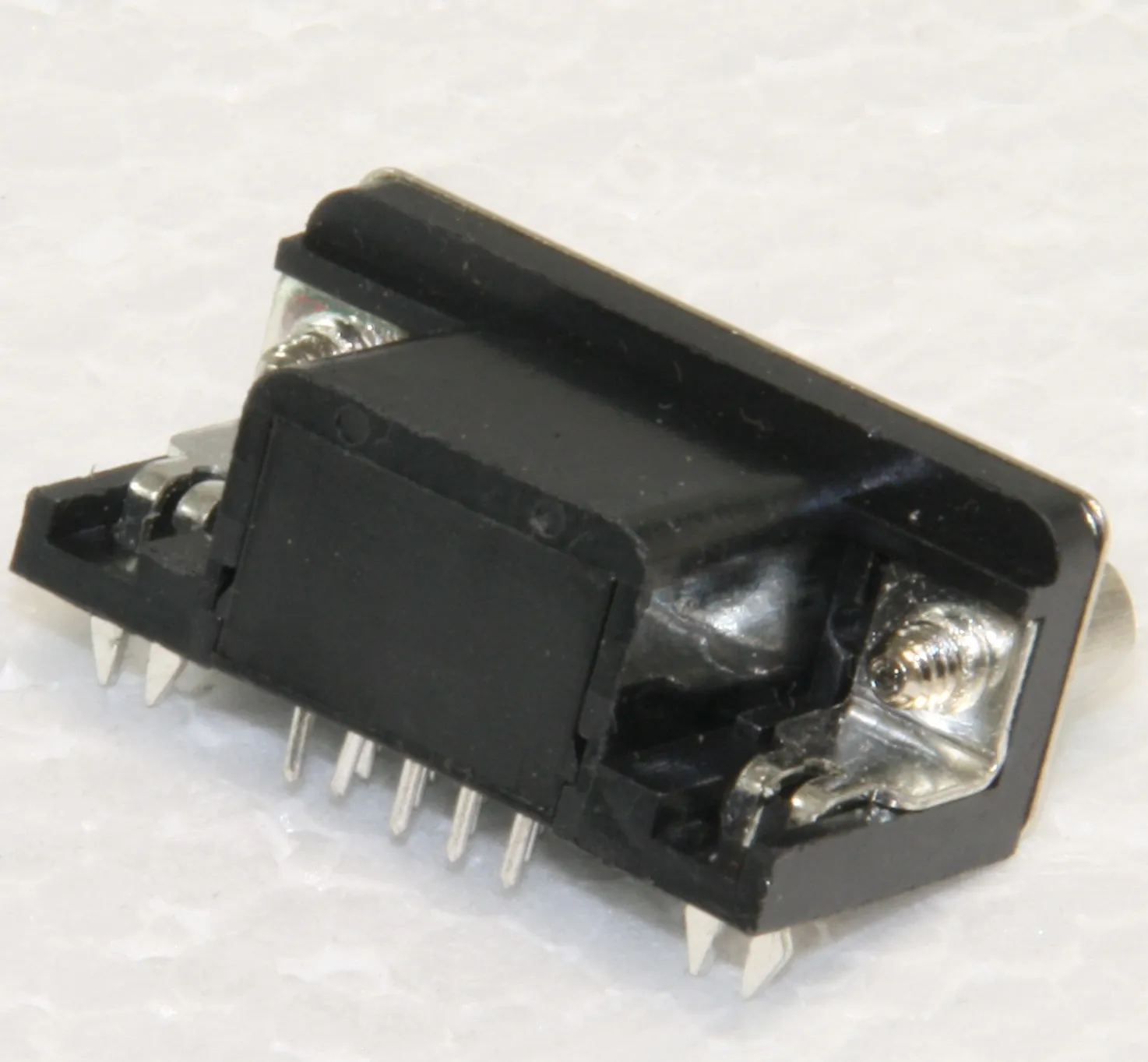

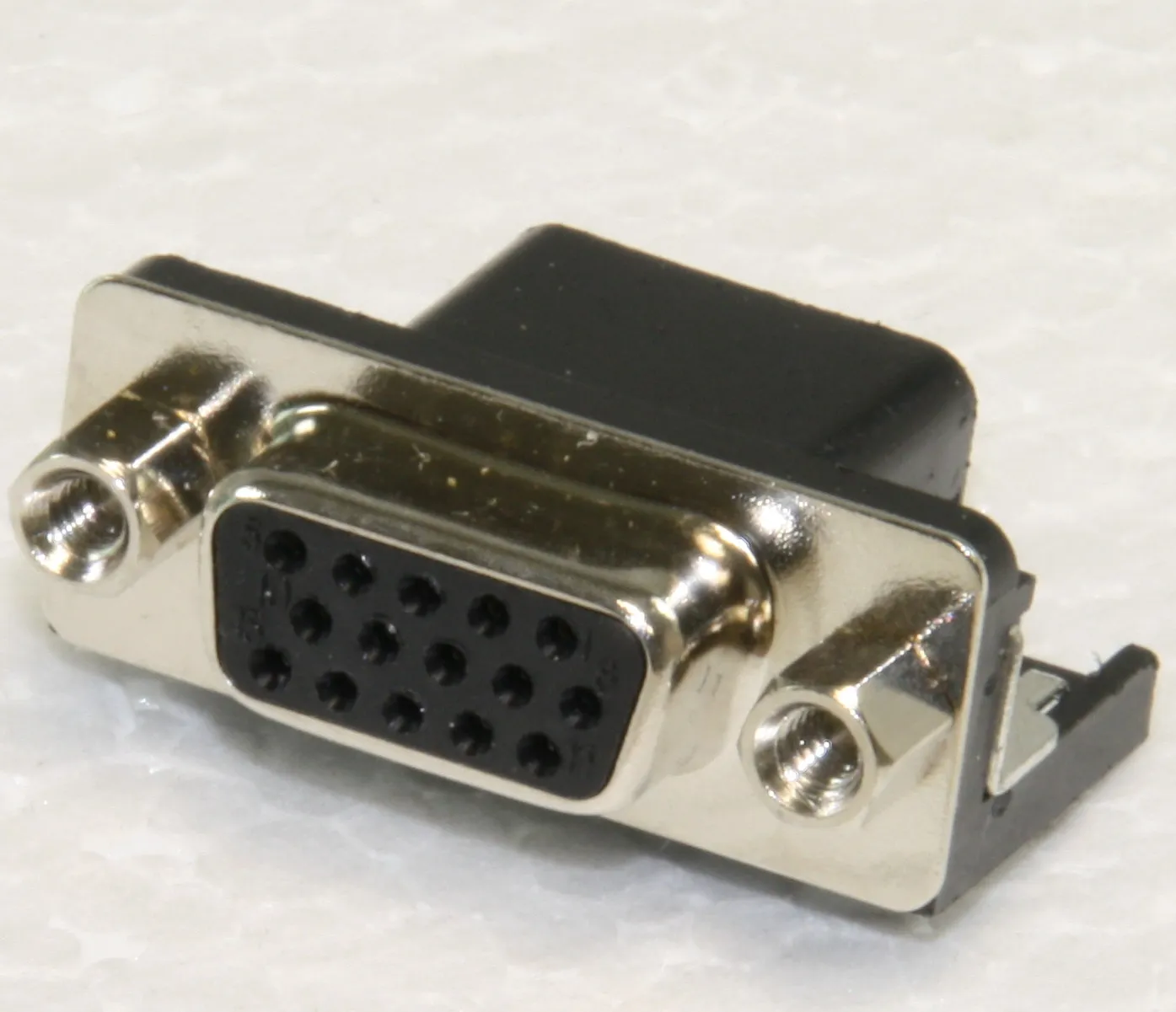

HD D-Sub-Socket 15-Pole Solder Pin/EU
Varenummer:
87-875
Varekode: HDBL15WSI
Vægt: 9 g
39 stk.
på lager
Specifikationer
| Stik-familie | D-Sub |
|---|---|
| Antal poler | 15 |
Gruppe: F4533
GSN HD D-Sub Sockets
Series: HDBL_WSI
Snap-In, Angled
Contacts: Stamped
Euro-standard
| Technical Specifications |
 |
|||||||||||||||||||
| Insulating Shell: | PBT, UL94V-0 | Contacts: | Cu-Alloy | Contact Surface: | Selective Flash Gold | Housing Frame: | Steel, Tin-plated | Operating Current: | 5A | Dielectric Strength: | 1000V AC | Insulation Resistance, Min.: | 500MW | Contact Resistance, Max.: | 30mW | Temperature Range: | -40...+85°C | ||
|
|||||||||||||||||||
| Dimensions |
| Part Nr. | Poles | A | B | C | D | [mm] | [mm] | [mm] | [mm] | HDBL15WSI | 15 | 16,33 | 24,99 | 30,81 | 2,29 | HDBL44WSI | 44 | 38,38 | 47,04 | 53,04 | 2,29 | ||||||||
|
|||||||||||||||||||||||||||||
| Note |
| • You will find adapter screw bolts with thread UNC4-40 in this catalogue at product group G8285. |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces HDBL44WSI: 1PKU = 5 pieces |
|
| Manufacturer |
 |
| http://www.gsn.cn.com |
|
