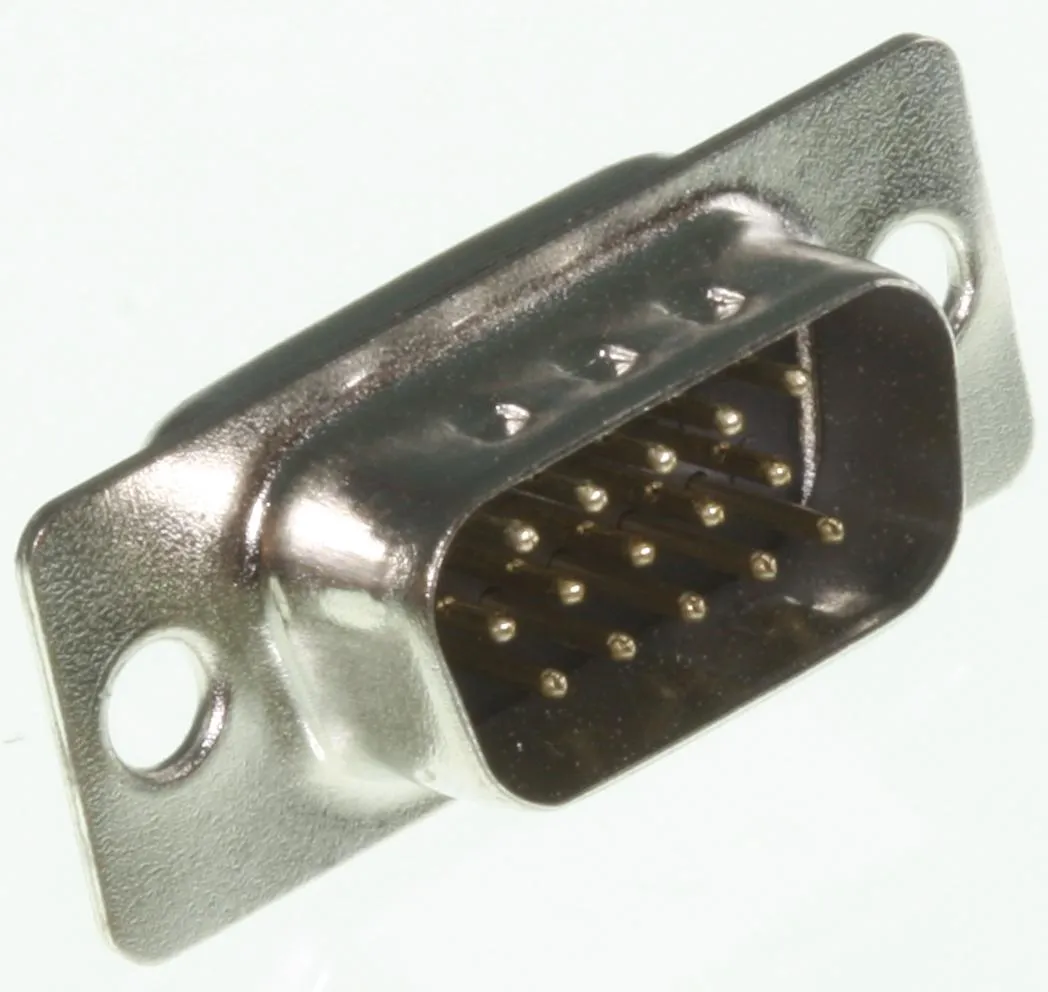

HD-D-Sub-Plug 15-Pole Solder Cup
Varenummer:
87-873
Varekode: HDSL15LR
Vægt: 4 g
251 stk.
på lager
Specifikationer
| Stik-familie | D-Sub HD |
|---|---|
| Antal poler | 15 |
Gruppe:
F4532
GSN HD D-Sub Plugs
Series: HDSL
Solder Cup
Contacts: Stamped
GSN HD D-Sub Plugs
Series: HDSL
Solder Cup
Contacts: Stamped
| Technical Specifications |
 | |
| Insulating Shell: | PBT, UL94V-0 |
| Contacts: | Cu-Alloy |
| Contact Surface: | Selective Flash Gold |
| Housing Frame: | Steel, Tin-plated |
| Operating Current: | 5A |
| Dielectric Strength: | 1000V AC |
| Insulation Resistance, Min.: | 1000MW |
| Contact Resistance, Max.: | 30mW |
| Temperature Range: | -40...+85C |
| |
| Dimensions |
| Part Nr. | Poles | A | B | C | D | E |
| [mm] | [mm] | [mm] | [mm] | [mm] | ||
| HDSL15LR | 15 | 16,92 | 24,99 | 30,78 | 19,28 | 2,29 |
| ||||||
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
 |
| http://www.gsn.cn.com |
|
