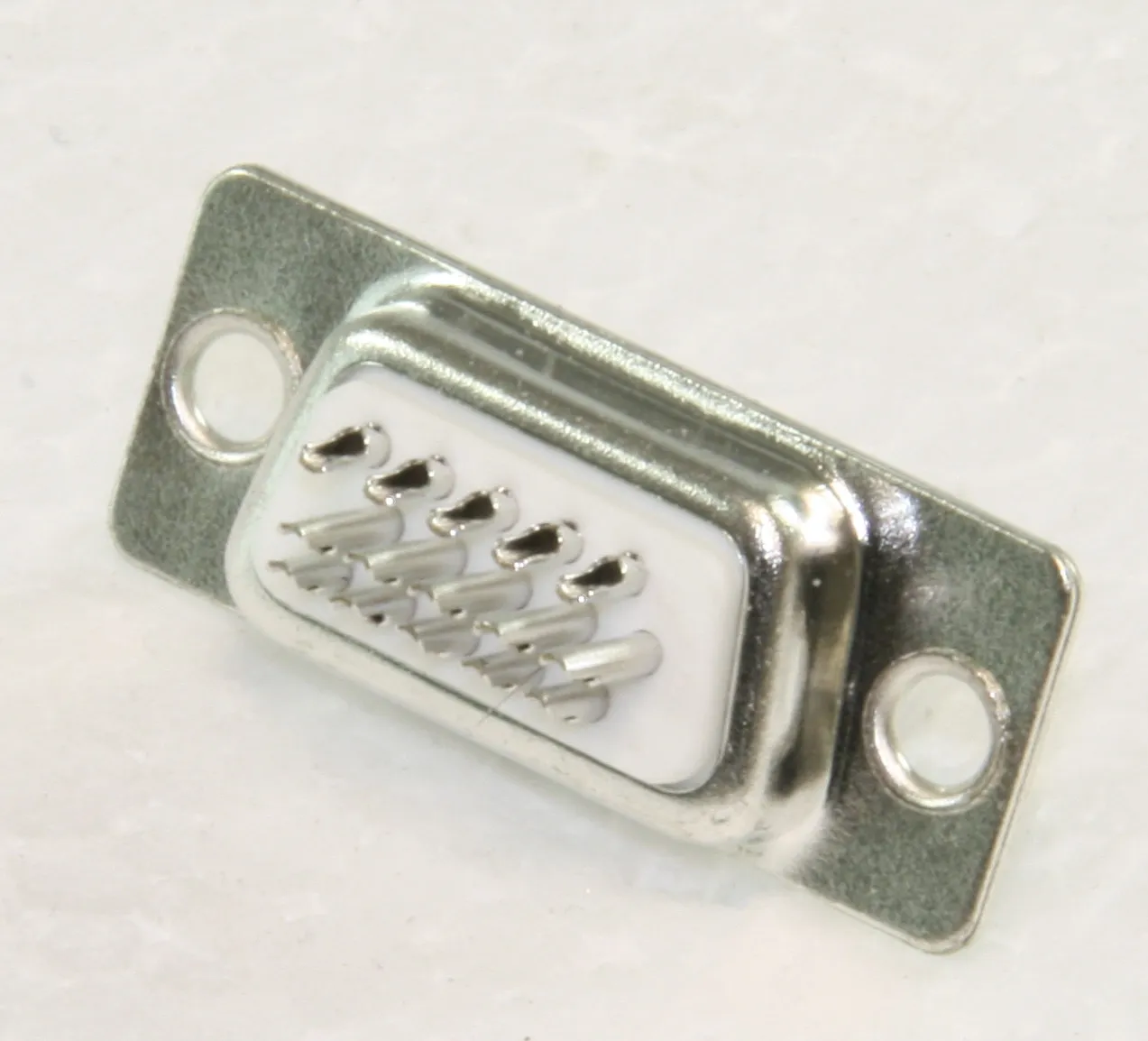

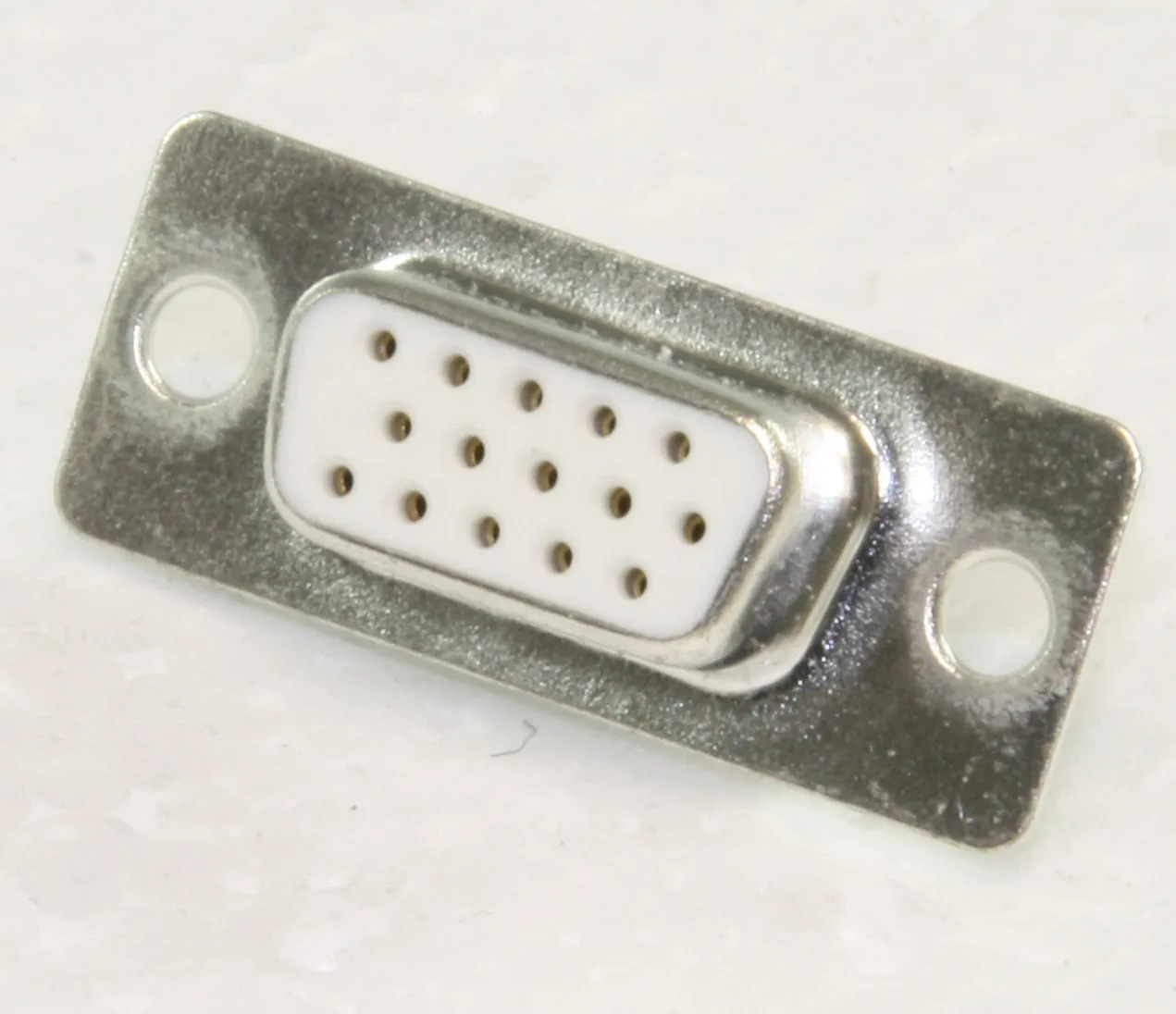

HD-D-Sub Sockets 15-Pole Solder Cup
Varenummer:
87-871
Varekode: HDBL15LR
Vægt: 5 g
64 stk.
på lager
Specifikationer
| Stik-familie | D-Sub HD |
|---|---|
| Antal poler | 15 |
Gruppe:
F4531
GSN HD D-Sub Sockets
Series: HDBL
Solder Cup
Contacts: Stamped
GSN HD D-Sub Sockets
Series: HDBL
Solder Cup
Contacts: Stamped
| Technical Specifications |
 | |
| Insulating Shell: | PBT, UL94V-0 |
| Contacts: | Cu-Alloy |
| Contact Surface: | Selective Flash Gold |
| Housing Frame: | Steel, Tin-plated |
| Operating Current: | 5A |
| Dielectric Strength: | 1000V AC |
| Insulation Resistance, Min.: | 1000MW |
| Contact Resistance, Max.: | 30mW |
| Temperature Range: | -40...+85C |
| |
| Dimensions |
| Part Nr. | Poles | A | B | C | D |
| [mm] | [mm] | [mm] | [mm] | ||
| HDBL15LR | 15 | 16,33 | 24,99 | 30,85 | 19,20 |
| |||||
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
 |
| http://www.gsn.cn.com |
|
