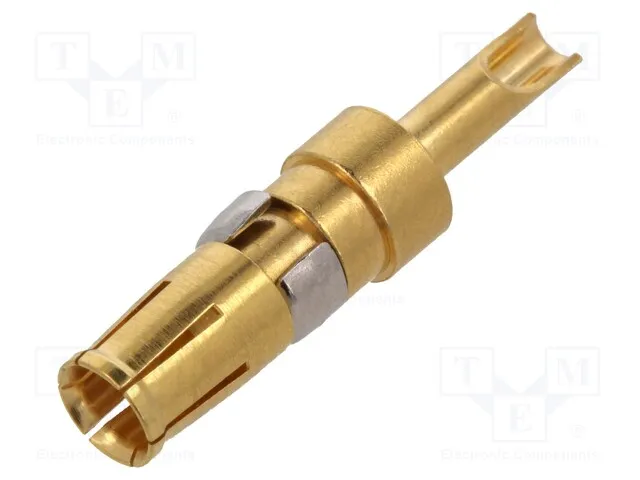

High-Current Plug 10A, Solder Cup
Varenummer:
87-868
Varekode: HBK10AL
Vægt: 1 g
0 stk.
på lager
Ved bestilling nu, får vi dem hjem onsdag d. 28/10
Gruppe:
F4527
CONEC High Current Sockets
Series: HBK_AL
For Combi D-Sub Connectors, Solder Cup
CONEC High Current Sockets
Series: HBK_AL
For Combi D-Sub Connectors, Solder Cup
| Technical Specifications |
 | |
| Contacts: | Cu-Alloy |
| Contact Surface: | Gold Over Nickel |
| Holding Clip: | Cu-Alloy |
| Current Strength, Max.: | See Table |
| Insulation Resistance: | ³5GW |
| Contact Resistance: | £1mW |
| Operating Temperature: | - 55...+155C |
| Contact Engaging/Separating Force: | 7N/5N |
| Quality Level: | 500 Cycles |
| |
| Part Nr. | Cable Size | Imax. | A | B |
| [A] | [mm] | [mm] | ||
| HBK10AL | AWG 16-20 | 10 | 1,8 | 1,8 |
| HBK20AL | AWG 12-14 | 20 | 2,7 | 2,7 |
| HBK40AL | AWG 8-10 | 40 | 4,8 | 4,8 |
| ||||
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 5 pieces |
|
| Manufacturer |
 |
| http://www.conec.com |
|
Inkl. moms
v/5
Kr. 22,79
- v/10 – Kr. 18,98
- v/25 – Kr. 15,19
- v/100 – Kr. 12,91
