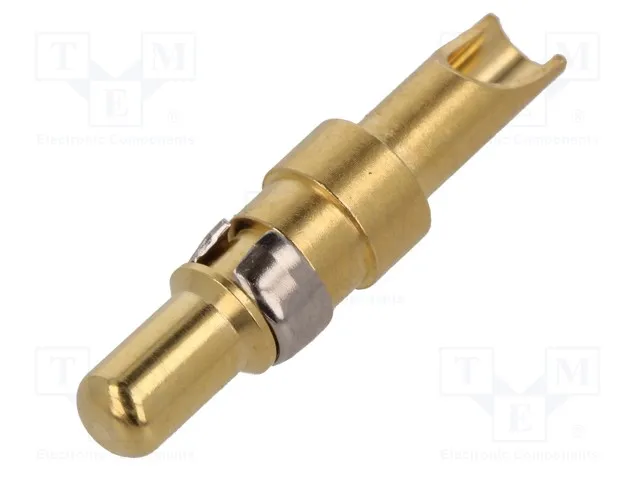

High-Current Plug 20A, Solder Cup
Varenummer:
87-866
Varekode: HSK20AL
Vægt: 2 g
0 stk.
på lager
Ved bestilling nu, får vi dem hjem onsdag d. 28/10
Gruppe:
F4525
CONEC High Current Plugs
Series: HSK_AL
For Combi D-Sub Connectors, Solder Cup
CONEC High Current Plugs
Series: HSK_AL
For Combi D-Sub Connectors, Solder Cup
| Technical Specifications |
 | |
| Contacts: | Cu-Alloy |
| Contact Surface: | Gold Over Nickel |
| Holding Clip: | Cu-Alloy |
| Current Strength, Max.: | See Table |
| Insulation Resistance: | ³5GW |
| Contact Resistance: | £1mW |
| Operating Temperature: | -55...+155C |
| Contact Engaging/Separating Force: | 7N/5N |
| Quality Level: | 500 Cycles |
| |
| Part Nr. | Cable Size | Imax. | A | B |
| [A] | [mm] | [mm] | ||
| HSK10AL | AWG 16-20 | 10 | 1,8 | 1,8 |
| HSK20AL | AWG 12-14 | 20 | 2,7 | 2,7 |
| HSK40AL | AWG 8-10 | 40 | 4,8 | 4,8 |
| ||||
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 5 pieces |
|
| Manufacturer |
 |
| http://www.conec.com |
|
Inkl. moms
v/5
Kr. 16,31
- v/10 – Kr. 13,59
- v/25 – Kr. 10,88
- v/100 – Kr. 9,24
