Filter-Adapter 25-Pole S/P
Varenummer:
87-850
Varekode: ASB25-F4
Vægt: 22 g
0 stk.
på lager
Gruppe:
F4511
CONEC D-Sub Filter Adapters
Series: ASB
Socket/Plug with Spring
CONEC D-Sub Filter Adapters
Series: ASB
Socket/Plug with Spring
| Features |
| Due to the electromagnetic compatibility of high-performance, complex electronic systems (EMV), they must always be protected against external and transmitting radiation interferences. |
 |
| Technical Specifications |
| |
| Insulating Shell: | Polyester, Glass-filled, UL94V-0 |
| Contacts: | Cu Alloy |
| Contact Surface: | Hard Gold Over Nickel |
| Solder Area Tin-plated | |
| Housing Frame: | Steel, Tin Over Nickel |
| Operating Voltage, Max.: | 100V DC |
| Insulation Class A in Accordance with VDE100 | |
| Contact Resistance | |
| Before/After Stress, (DR) Max.: | 10mW |
| Insulation Resistance: | ³108W |
| Current Capacity, Max. (20C) | |
| Straight/Angled Version: | 5,0A/2,5A |
| Operating Temperature Range: | -25...+105C |
| Quality Level | 3 (50 Cycles) |
| Min./Max.: | 664pF/996pF |
| |

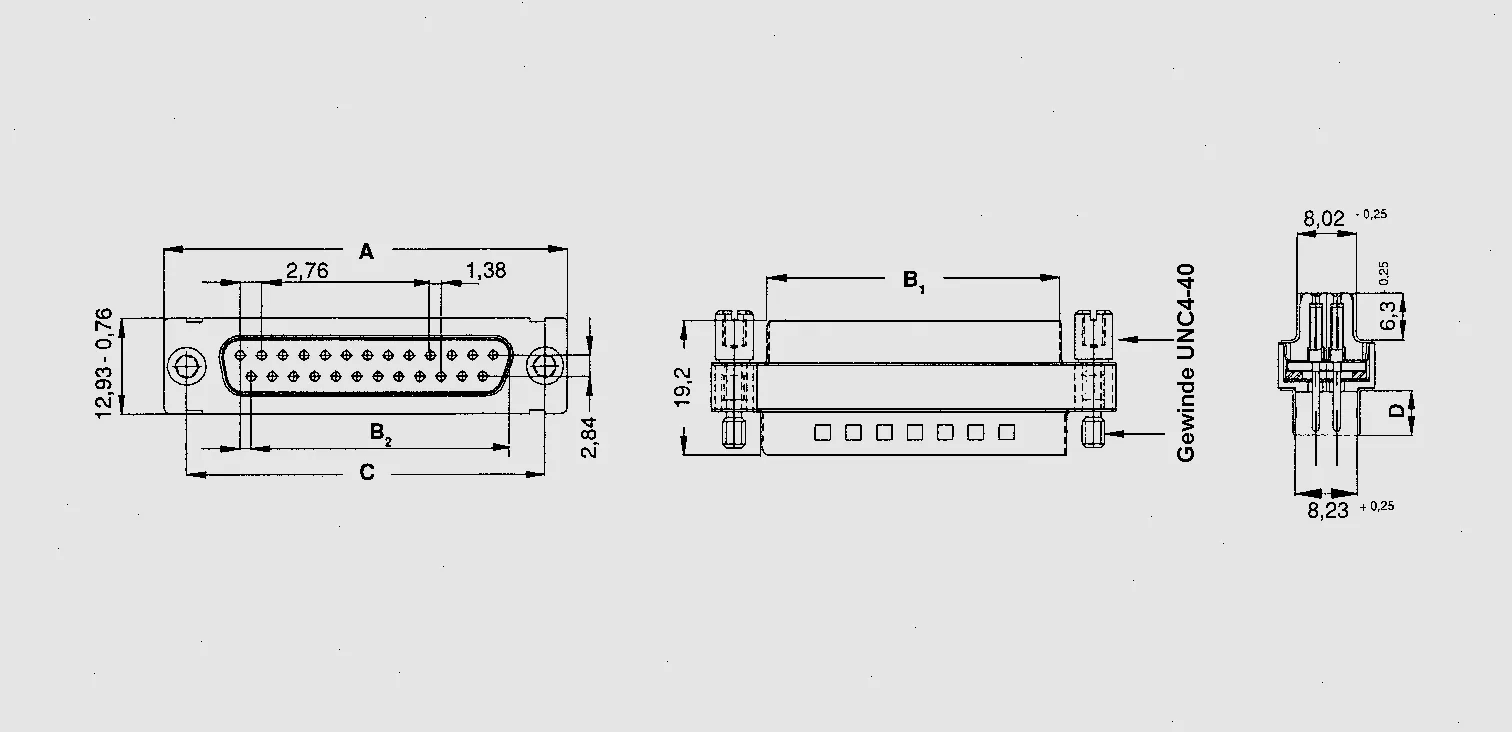

| Dimensions |
| Part Nr. | Pole | A-0,76 | B1-0,25 | B2+0,25 | C | D-0,3 |
| [mm] | [mm] | [mm] | [mm] | [mm] | ||
| ASB09-F4 | 9 | 31,19 | 16,46 | 16,79 | 25,00 | 6,12 |
| ASB25-F4 | 25 | 53,42 | 38,50 | 38,84 | 47,04 | 5,99 |
| ||||||
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece Delivery contents: UNC4-40 screws included in delivery |
|
| Manufacturer |
 |
| http://www.conec.com |
|
Produktfiler
