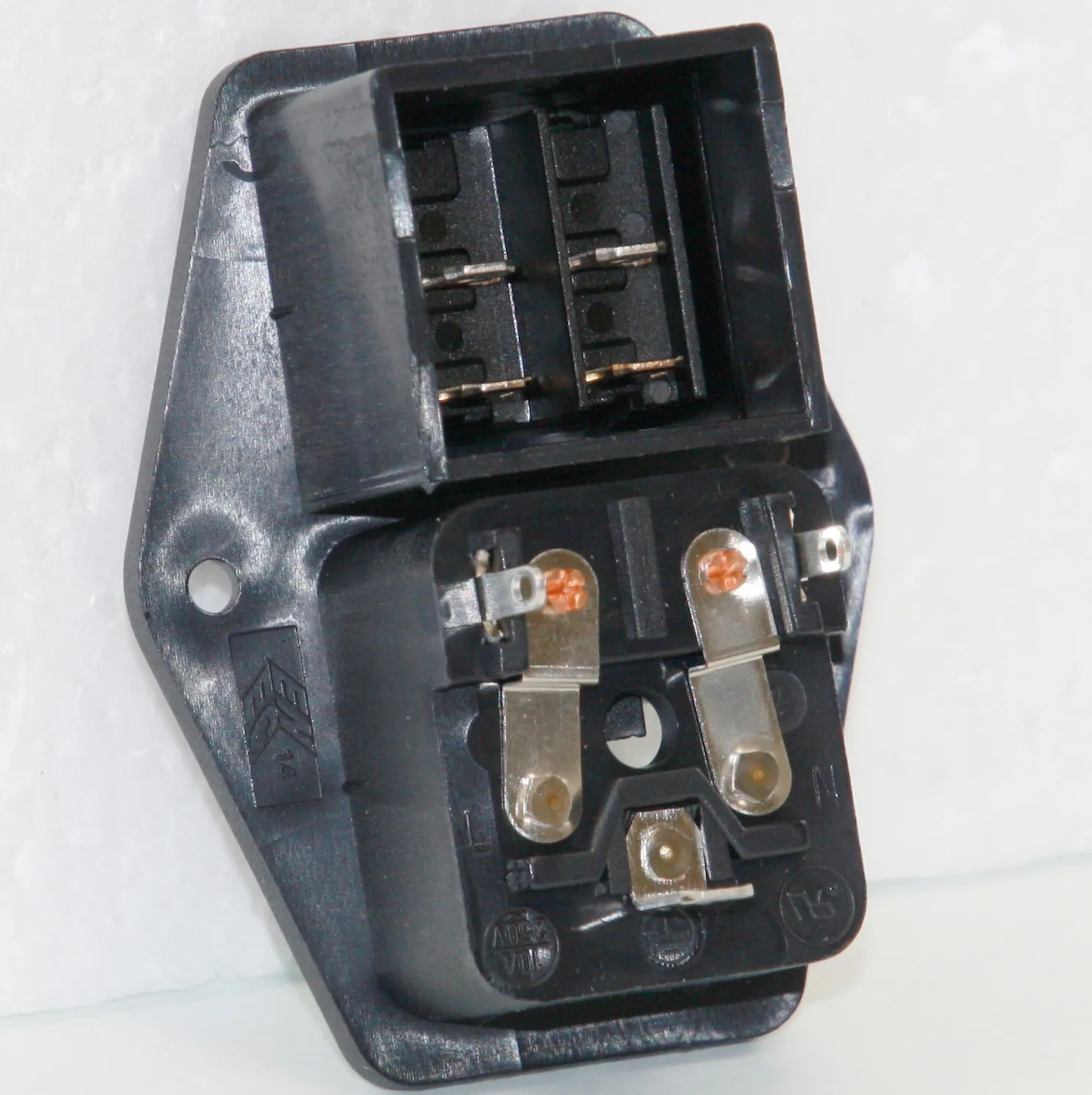

IEC C14 Power Connector Switch, Sikring både i fase og nul
Varenummer:
87-826
Varekode: GSW6765
Vægt: 37 g
4 stk.
på lager
To sikringer, både en i fase og en i nul.
Gruppe:
F5561
SCHURTER IEC Male Power Insert Connectors
Series: GSW
With Rocker Switch and Fuseholder
| Technical Specifications |
 |
|
| Nr. of Poles: | 2+PE |
| Continuous Current: | 10A |
| Fuse Holder: | 6,3A |
| Pin Temperature: | 70°C |
| Rated Voltage: | 250V AC |
|
|
| GSW6762_ |
|
| Features |
| • Combination consists of: - Appliance plug C14 - 2-pole rocker switch - Fuse holder for a fuse 5x20mm and an integrated compartment for spare fuse • Connection by 4,8mm flat cable plug • GSW6762SI: Snap-in assembly • GSW6762: Screw assembly, hole distance 40mm |
|
| GSW6765 |
|
| Features |
| • Combination consists of: - Appliance plug C14 - 2-pole rocker switch - Fuse holder for two fuses (5x20mm) • Connection by 4,8mm flat cable plug (switch) solder terminals for fuse holder • Screw assembly, hole distance 40mm |
|
| Norms |
| Connector: according to IEC/EN 60320-1, UL 498, CSA C22.2 no. 42 Fuseholder: according to IEC 60127-6 |
|
| Approvals |
   14 |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece |
|
| Manufacturer |
 |
