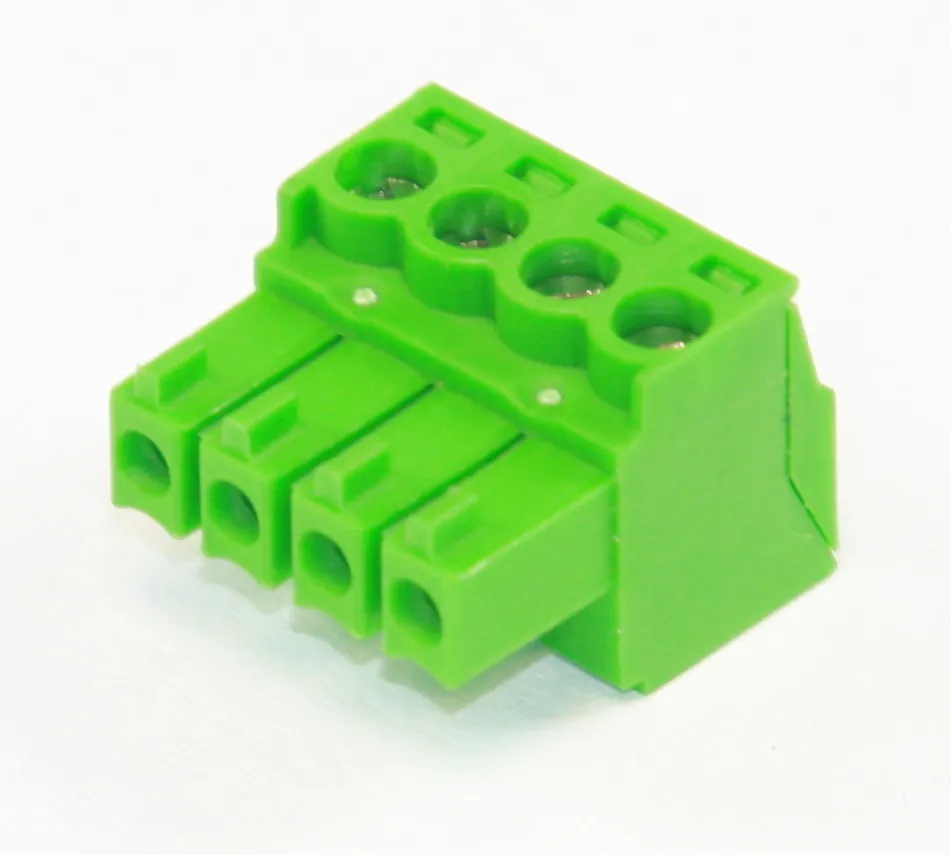

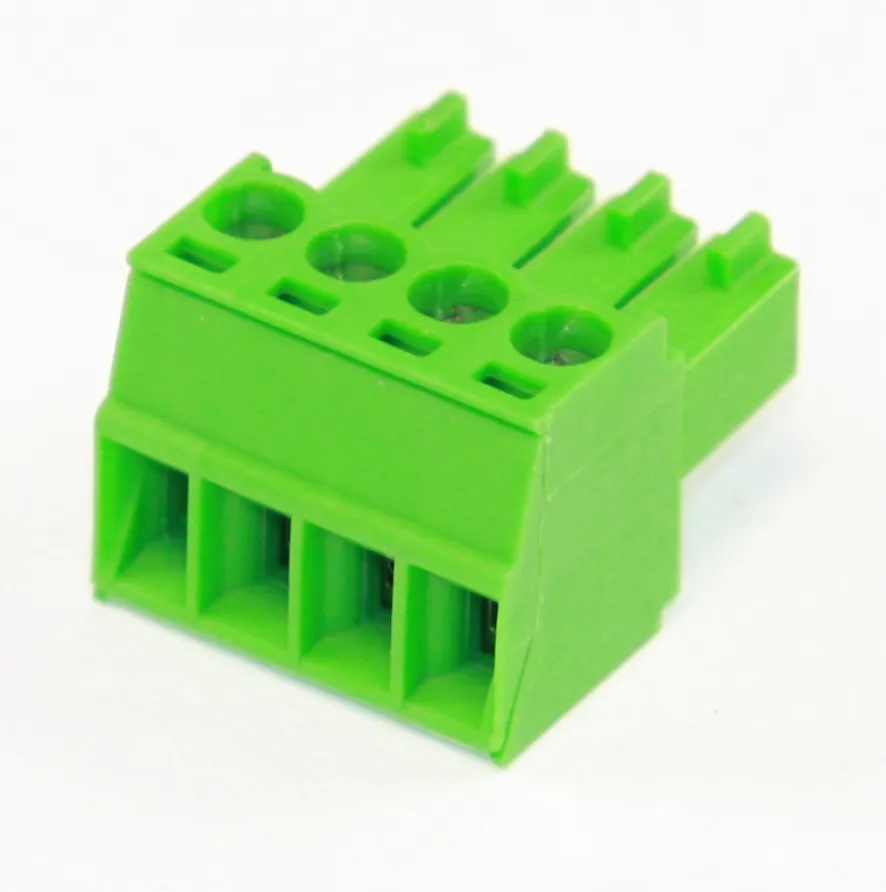

Multiconnector 3,5 Hor. 4-Pole
Varenummer:
87-664
Varekode: AK1550/4
Vægt: 3 g
13 stk.
på lager
Bestil inden kl. 14 i dag for afsendelse i dag
Yderligere 6050 stk. kan skaffes tirsdag d. 10/11
Gruppe: F9551
PTR Multiconnectors
Series: AK1550
Screw-cage Clamp Principle
Conductor: Vertical
Pitch: 3,5mm
| Technical Specifications |
 |
|
| Rated Voltage (EN 61984): | 160V |
| Rated Current (T60): | 9A |
| Rated Surge Voltage: | 4kV |
| Rated Cross Section Single Stranded Wire: | 1,5mm2 |
| Rated Cross Section Fine Stranded Wire: | 1,0mm2 |
| Stripped Length: | 7,0mm |
| Insulating Material: | PA |
| Temperature Range: | -30°C...+105°C |
| Flammability Class: | UL94V-0 |
| Colour: | Green |
|
|
| Dimensions |
| Part Nr. | L | H | T |
| [mm] | |||
| AK1550/2 | 7,00 | 11,1 | 15,5 |
| AK1550/3 | 10,5 | 11,1 | 15,5 |
| AK1550/4 | 14,0 | 11,1 | 15,5 |
| AK1550/5 | 17,5 | 11,1 | 15,5 |
| AK1550/6 | 21,0 | 11,1 | 15,5 |
| AK1550/8 | 28,0 | 11,1 | 15,5 |
| AK1550/10 | 35,0 | 11,1 | 15,5 |
| AK1550/12 | 42,0 | 11,1 | 15,5 |
| AK1550/15 | 56,0 | 11,1 | 15,5 |
|
|||
| Approvals |
 DIN VDE 0627,  1059,  |
