Term.Block 3-Pole Grey
Varenummer:
87-659
Varekode: ARK130/3
Vægt: 2 g
3907 stk.
på lager
Gruppe:
F9541
PTR Terminal Blocks and Box Headers
Series: AK130, STL130
Screw Principle with Wire Guard
Conductor: Horizontal
Pitch: 5mm
PTR Terminal Blocks and Box Headers
Series: AK130, STL130
Screw Principle with Wire Guard
Conductor: Horizontal
Pitch: 5mm
| ARK130_ |
 |
| Features |
| Attach vertically or horizontally to the PCB |
|
| Technical Specifications |
| |
| Rated Voltage (EN 61984): | 250V |
| Rated Current (T60): | 10A |
| Test Voltage: | 4kV |
| Rated Cross Section Single Stranded Wire: | 1,5mm2 |
| Rated Cross Section Fine Stranded Wire: | 1,0mm2 |
| Stripped Length: | 6,0mm |
| Insulating Material: | PA |
| Temperature Range: | -30...+105C |
| Flammability Class: | UL94V-0 |
| Colour: | Dark Grey |
| |

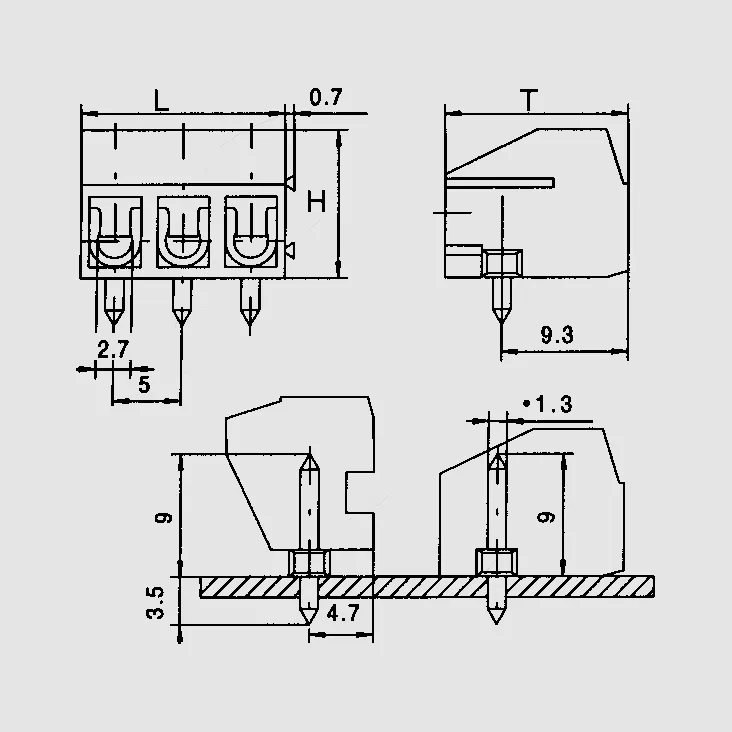

| Dimensions |
| |||
| Part Nr. | L | H | T |
| [mm] | |||
| ARK130/2 | 10,0 | 10,8 | 13,5 |
| ARK130/3 | 15,0 | 10,8 | 13,5 |
| |||
| STL130/24 |
| 24 Pole Pin Block |
|
| Construction |
| 24 pole pin block, refractive in 5mm pitch |
|
| Technical Specifications |
| |
| Rated Voltage (DIN VDE 0627)1): | 250V |
| Rated Current (T60): | 10A |
| Test Voltage: | 4kV |
| Holes in PCB: | 1,5mm |
| Insulating Material: | PA |
| Temperature Range: | -30...+105C |
| Flammability Class: | UL94V-0 |
| 1)Applied For VDE Approval | |
| |
| Approvals |
 EN 60998,  1059,  |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 50 pieces STL130/24: 1 PKU = 25 pieces |
|
| Manufacturer |
 |
| http://www.ptr-messtechnik.de |
|
