Box Header 5,0 Hor. 6-Pole Closed End
Varenummer:
87-657
Varekode: STL950WH6
Vægt: 2 g
20 stk.
på lager
Gruppe:
F9534
PTR Box Headers
Series: STL950
Pin Direction: Horizontal
Pitch: 5mm
PTR Box Headers
Series: STL950
Pin Direction: Horizontal
Pitch: 5mm
| Technical Specifications |
 | |
| Rated Voltage (EN 61984): | 250V |
| Rated Current (T60): | 12A |
| Test Voltage: | 4kV |
| Holes in PCB: | 1,4mm |
| Insulating Material: | PA |
| Temperature Range: | -30C...+105C |
| Flammability Class: | UL94V-0 |
| Colour: | Green |
| |

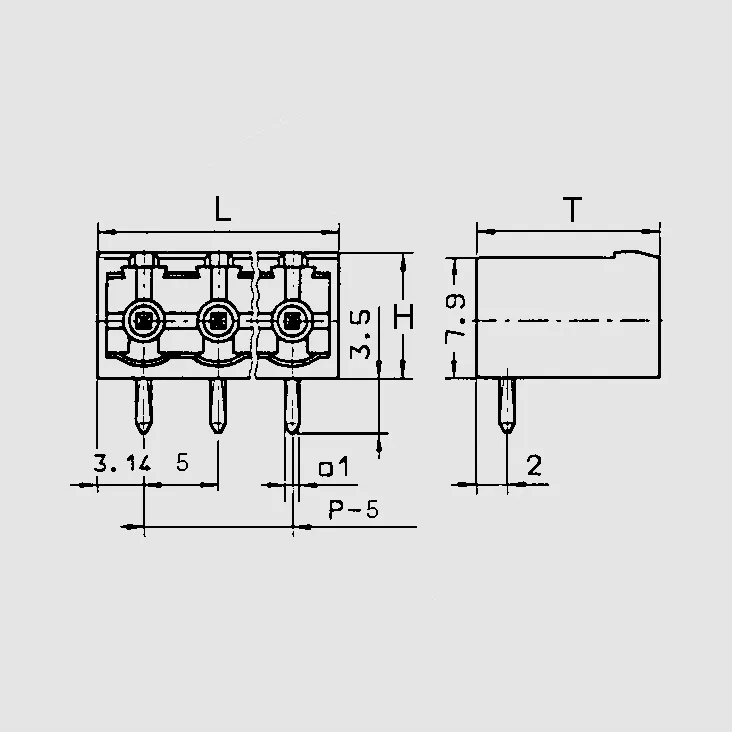

| Dimensions |
| Part Nr. | L | H | T |
| [mm] | |||
| STL950WH2 | 11,2 | 8,4 | 12,0 |
| STL950WH3 | 16,2 | 8,4 | 12,0 |
| STL950WH4 | 21,2 | 8,4 | 12,0 |
| STL950WH5 | 26,2 | 8,4 | 12,0 |
| STL950WH6 | 31,2 | 8,4 | 12,0 |
| |||
| Note |
| You will find suitable plugable multiconnectors in product group F9532. |
|
| Approvals |
 EN 60998,  1059,  |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
 |
| http://www.ptr-messtechnik.de |
|
