Box Header 5,0 Vert. 3-Pole Closed End
Varenummer:
87-649
Varekode: STL950WV3
Vægt: 2 g
2 stk.
på lager
Gruppe:
F9533
PTR Box Headers
Series: STL950
Pin Direction: Vertical
Pitch: 5mm
PTR Box Headers
Series: STL950
Pin Direction: Vertical
Pitch: 5mm
| Technical Specifications |
 | |
| Rated Voltage (EN 61984): | 250V |
| Rated Current (T60): | 12A |
| Test Voltage: | 4kV |
| Holes in PCB: | 1,4mm |
| Insulating Material: | PA |
| Temperature Range: | -30...+105C |
| Flammability Class: | UL94V-0 |
| Colour: | Green |
| |

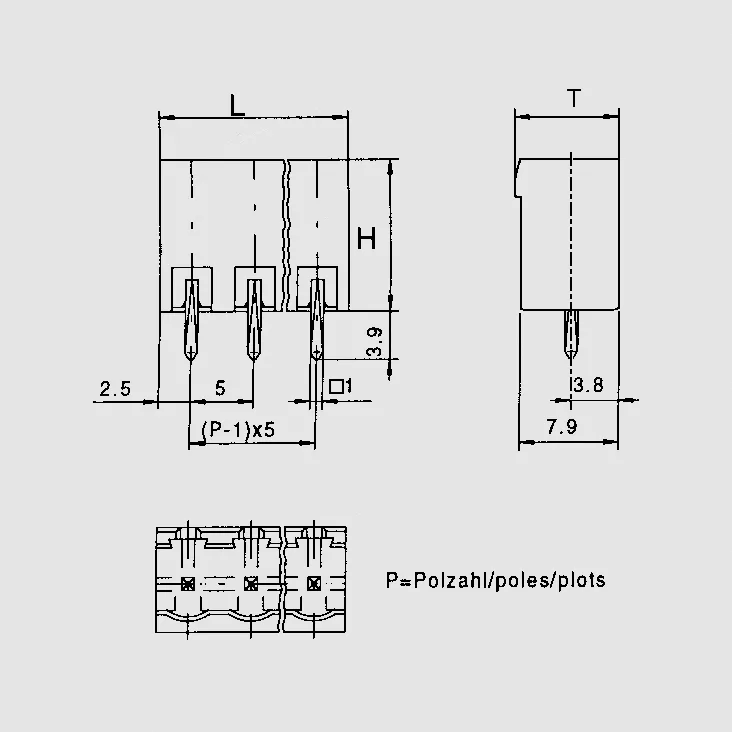

| Dimensions |
| Part Nr. | L | H | T |
| [mm] | |||
| STL950WV2 | 11,2 | 12,0 | 8,4 |
| STL950WV3 | 16,2 | 12,0 | 8,4 |
| STL950WV4 | 21,2 | 12,0 | 8,4 |
| STL950WV5 | 26,2 | 12,0 | 8,4 |
| STL950WV6 | 31,2 | 12,0 | 8,4 |
| |||
| Note |
| You will find suitable plugable multiconnectors in product group F9532. |
|
| Approvals |
 EN 60998,  1059,  |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
 |
| http://www.ptr-messtechnik.de |
|
