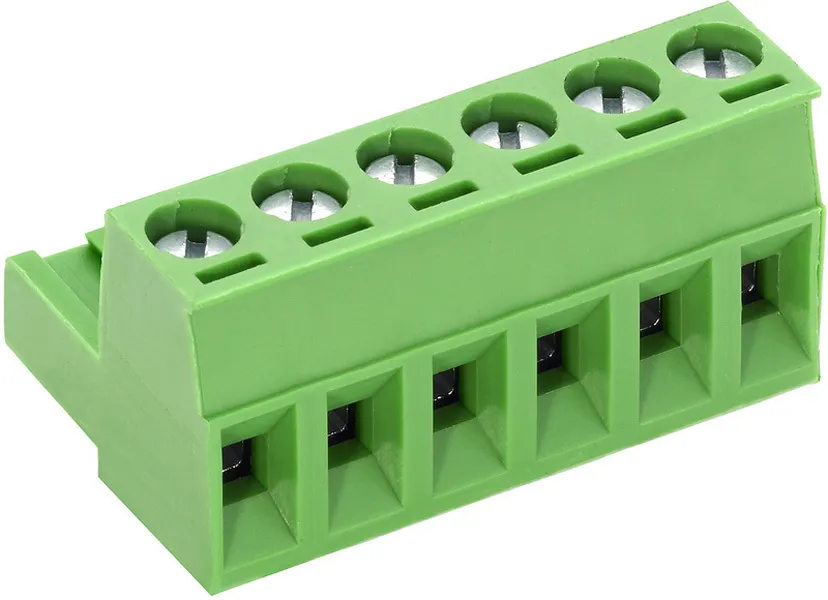

Multiconnector 5,0 Vert. 6-Pole
Varenummer:
87-647
Varekode: ARK950/6
Vægt: 9 g
8 stk.
på lager
AK950/..-5.0-GREEN
- 6 poles
- Lift type
- Spacing 5.0 mm
- Wire entry parallel to plugging direction
- Coding with coding star
- With snap-in hooks to snap onto the pin strip
| Wire Size | ||
|---|---|---|
| Solid | 0.2 mm² - 4.0 mm² | |
| Stranded | 0.2 mm² - 2.5 mm² | |
| Stranded with ferrule | 0.25 mm² - 2.5 mm² | |
| Dimensions | ||
| Stripped length | 6.0 mm | |
| Materials | ||
| Clamp | Brass | |
| Screw | Steel | |
| Contact spring | Bronze | |
| Insulating Material | ||
| Material | PA 6.6 | |
| Flammability class | UL 94 V-0 | |
| Temperatures | ||
| Operating temperature | -40 °C - 105 °C | |
| Store temperature | -40 °C - 105 °C |
