Multiconnector 5,0 Vert. 2-Pole
Varenummer:
87-643
Varekode: ARK950/2
Vægt: 3 g
85 stk.
på lager
Gruppe:
F9532
PTR Multiconnectors
Series: AK950
Screw-cage Clamp Principle
Conductor: Vertical
Pitch: 5mm
PTR Multiconnectors
Series: AK950
Screw-cage Clamp Principle
Conductor: Vertical
Pitch: 5mm
| Technical Specifications |
 | |
| Rated Voltage (EN 61984): | 250V |
| Rated Current (T60): | 12A |
| Measured Impulse Voltage: | 4kV |
| Rated Cross Section, Single and Fine Stranded Wire: | 2,5mm2 |
| Stripped Length: | 6,0mm |
| Insulating Material: | PA |
| Temperature Range: | -30C ...+105C |
| Flammability Class: | UL94V-0 |
| Colour: | Green |
| |

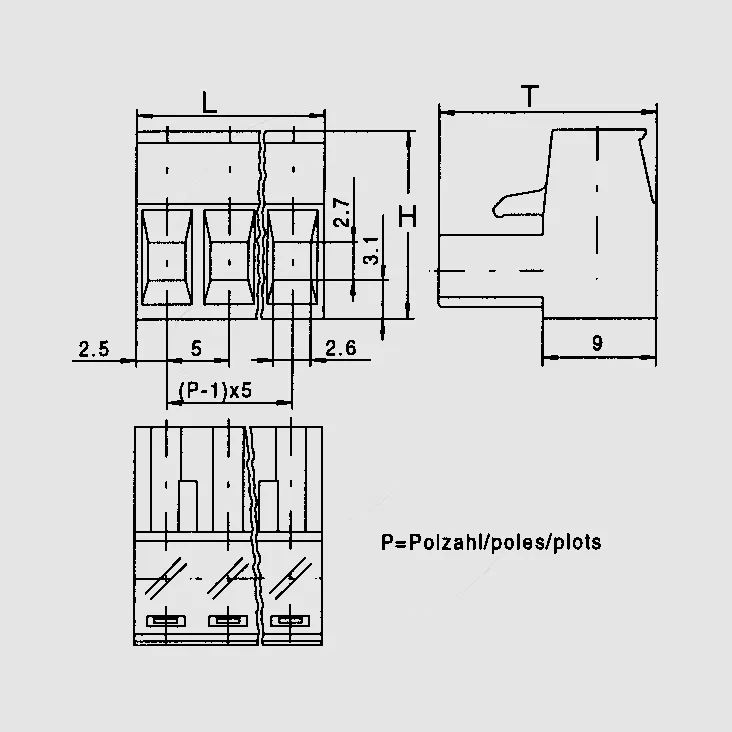

| Dimensions |
| Part Nr. | L | H | T |
| [mm] | |||
| ARK950/2 | 10,0 | 15,0 | 17,3 |
| ARK950/3 | 15,0 | 15,0 | 17,3 |
| ARK950/4 | 20,0 | 15,0 | 17,3 |
| ARK950/5 | 25,0 | 15,0 | 17,3 |
| ARK950/6 | 30,0 | 15,0 | 17,3 |
| |||
| Note |
| You will find suitable box headers in product groups F9533 and F9534. |
|
| Approvals |
 EN 60998,  1059,  |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
 |
| http://www.ptr-messtechnik.de |
|
