Terminal Block 250V 6-Pole Grey
Varenummer:
87-624
Varekode: ARKZ950/6
Vægt: 9 g
2 stk.
på lager
| Technical Specifications |
 |
|
| Rated Voltage (EN 61984): | 250V |
| Rated Current (T60): | 12A |
| Measured Impulse Voltage: | 4kV |
| Rated Wire Size: | 0,5...2,5mm2 |
| Stripped Length: | 6,0mm |
| Insulating Material: | PA |
| Temperature Range: | -30°C...+105°C |
| Flammability Class: | UL94V-0 |
| Colour: | Green |
|
|

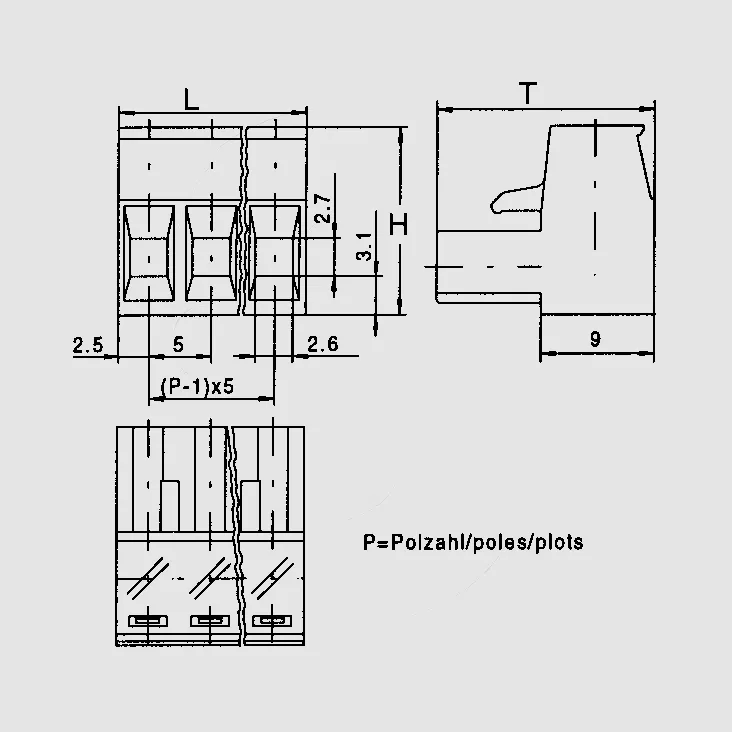

| Dimensions |
| Part Nr. | Length | Hight | Depth |
| [mm] | |||
| ARKZ950/2 | 10,16 | 15 | 17,3 |
| ARKZ950/3 | 15,24 | 15 | 17,3 |
| ARKZ950/4 | 20,32 | 15 | 17,3 |
| ARKZ950/5 | 25,40 | 15 | 17,3 |
| ARKZ950/6 | 30,48 | 15 | 17,3 |
| ARKZ950/8-GN | 40,46 | 15 | 17,3 |
| ARKZ950/10-GN | 50,80 | 15 | 17,3 |
|
|||
| Approvals |
 EN 60998,  1059,  |
