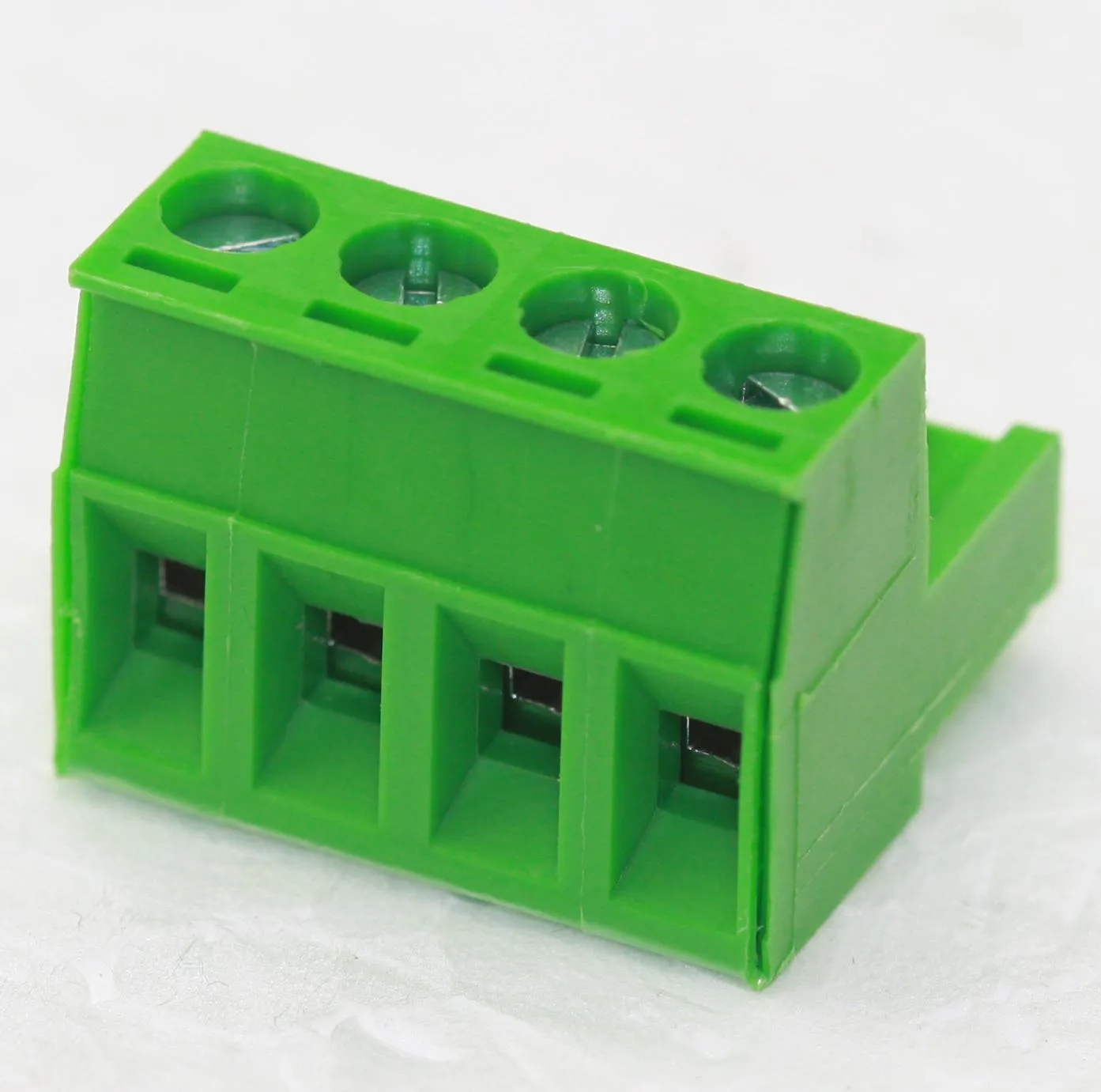

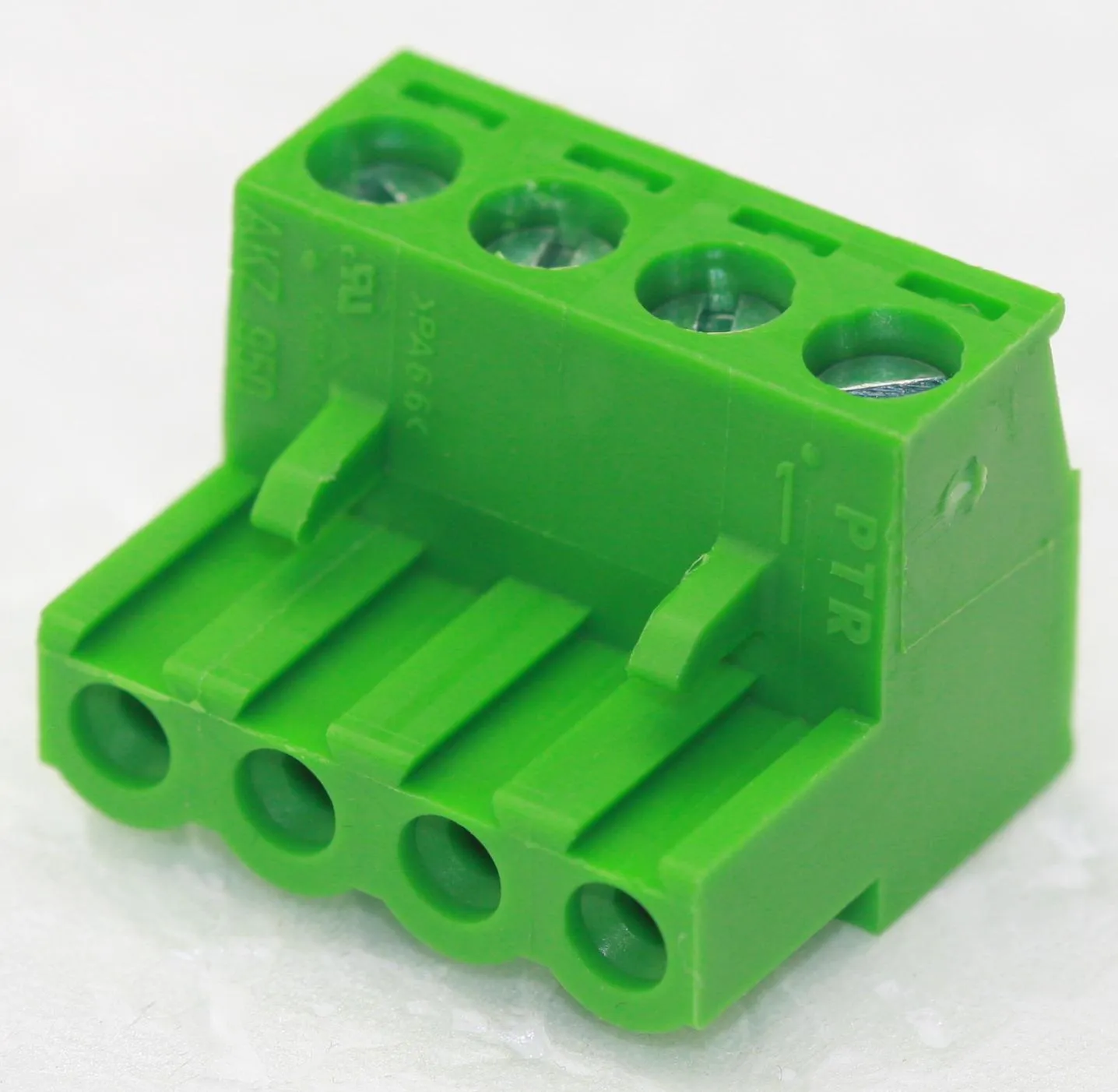

Multiconnector 5,08 Vert. 4-Pole Grøn
Varenummer:
87-622
Varekode: ARKZ950/4
Vægt: 7 g
37 stk.
på lager
Bestil inden kl. 14 i dag for afsendelse i dag
Yderligere 290 stk. kan skaffes tirsdag d. 10/11
Gruppe: F9512
PTR Multiconnectors
Series: AKZ950
Screw-cage Clamp Principle
Conductor: Vertical
Pitch: 5,08mm
| Technical Specifications |
 |
|||||||||||||||||||
| Rated Voltage (EN 61984): | 250V | Rated Current (T60): | 12A | Measured Impulse Voltage: | 4kV | Rated Cross Section, Single and Fine Stranded Wire: | 2,5mm2 | Stripped Length: | 6,0mm | Insulating Material: | PA | Temperature Range: | -30°C...+105°C | Flammability Class: | UL94V-0 | Colour: | Green | ||
|
|||||||||||||||||||
| Dimensions |
| Part Nr. | L | H | T | [mm] | ARKZ950/2 | 10,16 | 15,0 | 17,3 | ARKZ950/3 | 15,24 | 15,0 | 17,3 | ARKZ950/4 | 20,32 | 15,0 | 17,3 | ARKZ950/5 | 25,40 | 15,0 | 17,3 | ARKZ950/6 | 30,48 | 15,0 | 17,3 | |||||||
|
|||||||||||||||||||||||||||||||
| Note |
| You will find suitable box headers in product groups F9513 and F9514. |
|
| Approvals |
 EN 60998,  1059,  |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
 |
| http://www.ptr-messtechnik.de |
|
Produktfiler
Multiconnector 5,08 Vert. 4-Pole Grøn
87-622
/ ARKZ950/4
37 stk.
på lager
Bestil inden kl. 14 i dag for afsendelse i dag
Ved bestilling nu, får vi dem hjem tirsdag d. 10/11
Gruppe: F9512
PTR Multiconnectors
Series: AKZ950
Screw-cage Clamp Principle
Conductor: Vertical
Pitch: 5,08mm
| Technical Specifications |
|
|||||||||||||||||||
| Rated Voltage (EN 61984): | 250V | Rated Current (T60): | 12A | Measured Impulse Voltage: | 4kV | Rated Cross Section, Single and Fine Stranded Wire: | 2,5mm2 | Stripped Length: | 6,0mm | Insulating Material: | PA | Temperature Range: | -30°C...+105°C | Flammability Class: | UL94V-0 | Colour: | Green | ||
|
|||||||||||||||||||
| Dimensions |
| Part Nr. | L | H | T | [mm] | ARKZ950/2 | 10,16 | 15,0 | 17,3 | ARKZ950/3 | 15,24 | 15,0 | 17,3 | ARKZ950/4 | 20,32 | 15,0 | 17,3 | ARKZ950/5 | 25,40 | 15,0 | 17,3 | ARKZ950/6 | 30,48 | 15,0 | 17,3 | |||||||
|
|||||||||||||||||||||||||||||||
| Note |
| You will find suitable box headers in product groups F9513 and F9514. |
|
| Approvals |
| EN 60998, 1059, |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
| |
| http://www.ptr-messtechnik.de |
|
