Multiconnector 5,08 Vert. 3-Pole
Varenummer:
87-621
Varekode: ARKZ950/3
Vægt: 5 g
8 stk.
på lager
Gruppe:
F9512
PTR Multiconnectors
Series: AKZ950
Screw-cage Clamp Principle
Conductor: Vertical
Pitch: 5,08mm
PTR Multiconnectors
Series: AKZ950
Screw-cage Clamp Principle
Conductor: Vertical
Pitch: 5,08mm
| Technical Specifications |
 | |
| Rated Voltage (EN 61984): | 250V |
| Rated Current (T60): | 12A |
| Measured Impulse Voltage: | 4kV |
| Rated Cross Section, Single and Fine Stranded Wire: | 2,5mm2 |
| Stripped Length: | 6,0mm |
| Insulating Material: | PA |
| Temperature Range: | -30C...+105C |
| Flammability Class: | UL94V-0 |
| Colour: | Green |
| |

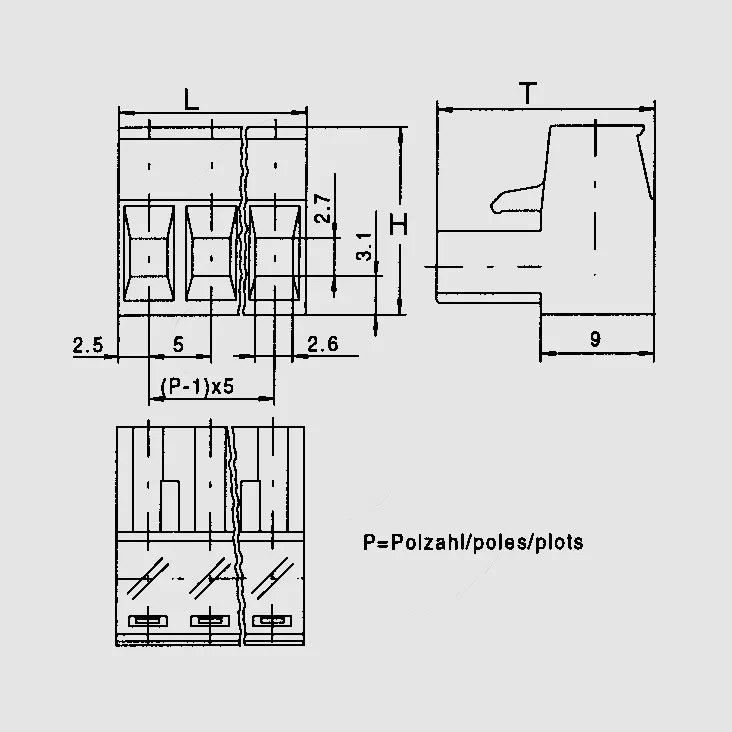

| Dimensions |
| Part Nr. | L | H | T |
| [mm] | |||
| ARKZ950/2 | 10,16 | 15,0 | 17,3 |
| ARKZ950/3 | 15,24 | 15,0 | 17,3 |
| ARKZ950/4 | 20,32 | 15,0 | 17,3 |
| ARKZ950/5 | 25,40 | 15,0 | 17,3 |
| ARKZ950/6 | 30,48 | 15,0 | 17,3 |
| |||
| Note |
| You will find suitable box headers in product groups F9513 and F9514. |
|
| Approvals |
 EN 60998,  1059,  |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
 |
| http://www.ptr-messtechnik.de |
|
