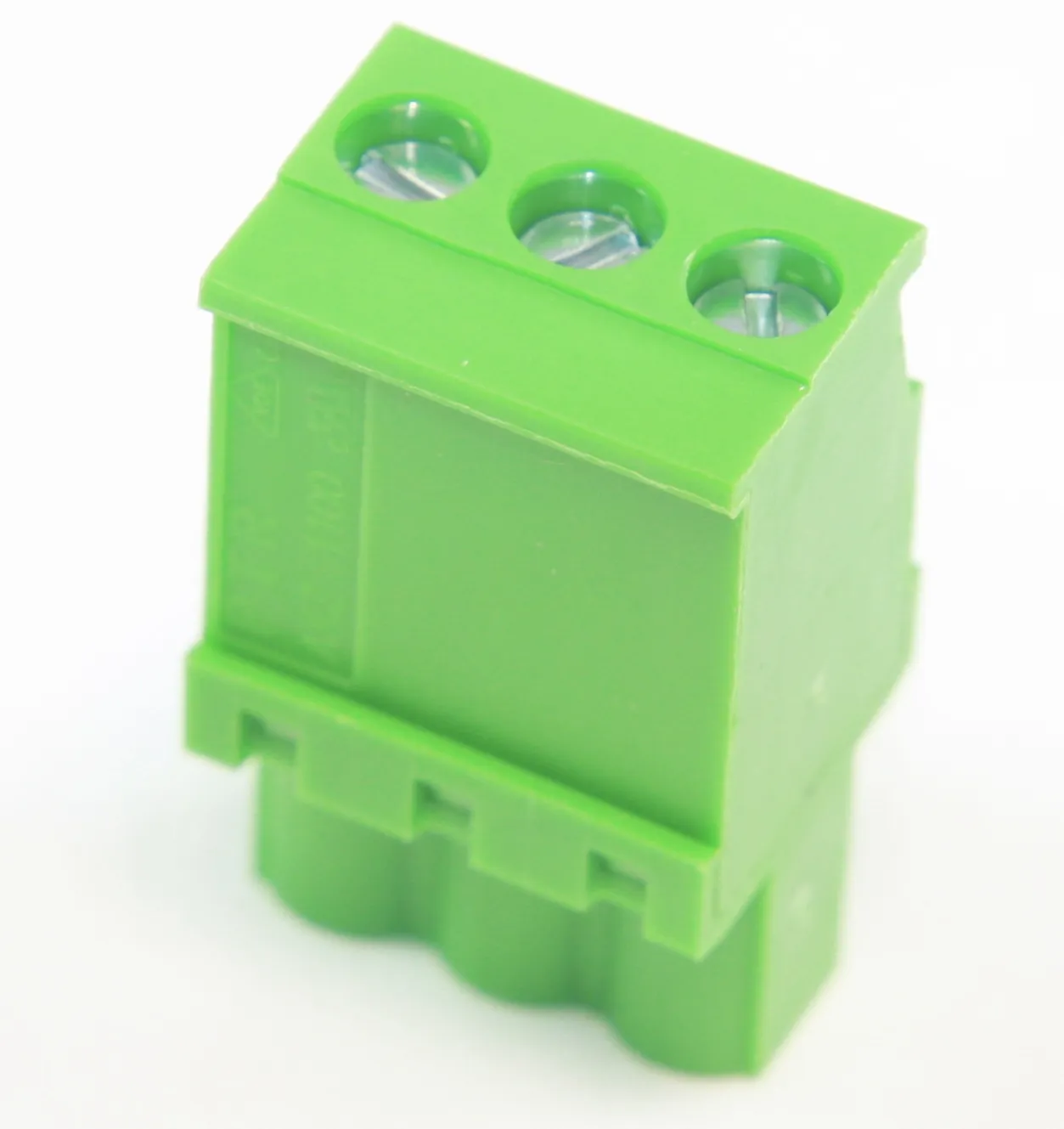

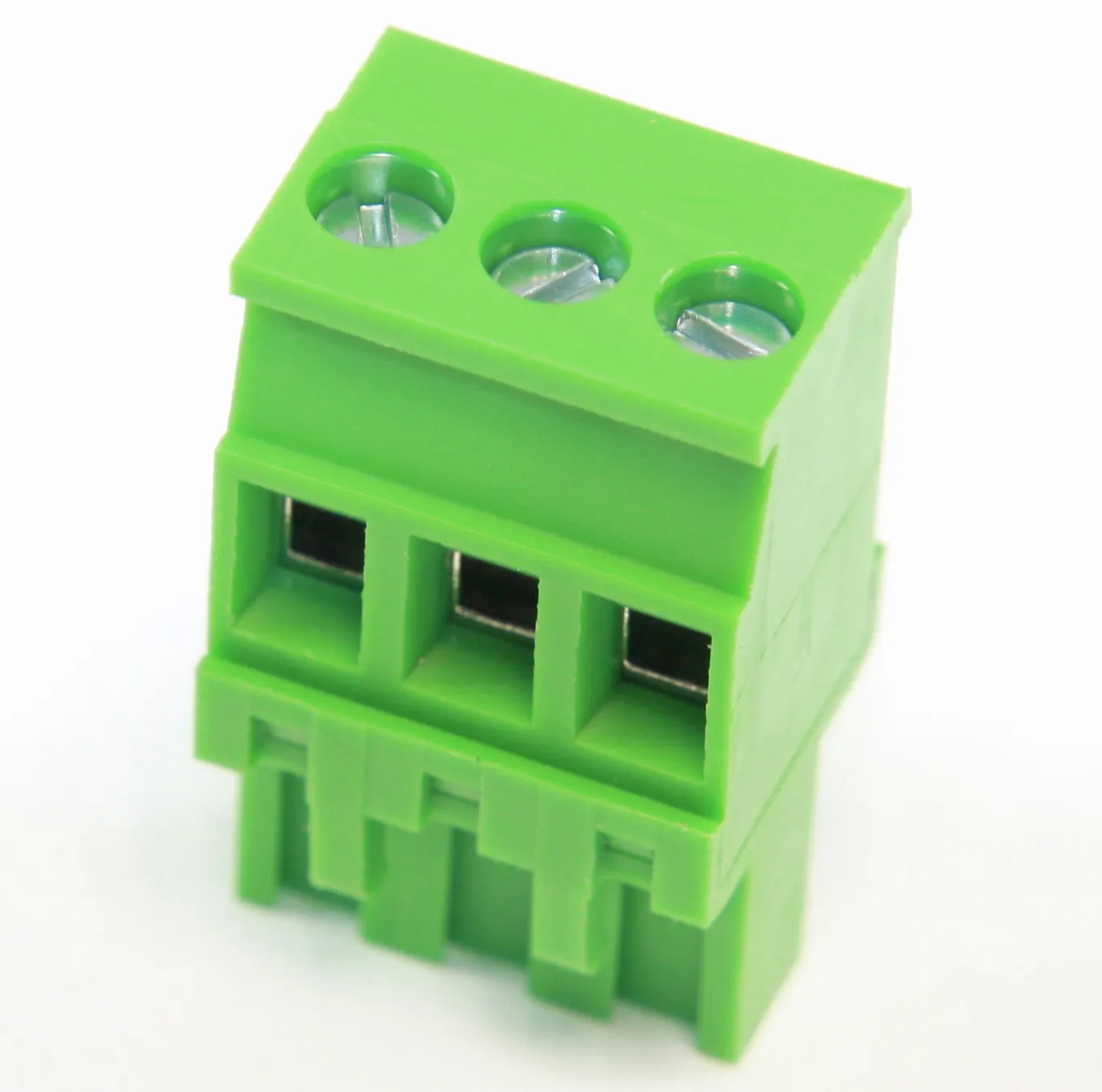

Multiconnector 5,08 Hor.3-Pole
Varenummer:
87-617
Varekode: AKZ1100/3-5,08/GRUEN
Vægt: 6 g
10 stk.
på lager
Bestil inden kl. 14 i dag for afsendelse i dag
Yderligere 1020 stk. kan skaffes tirsdag d. 10/11
Gruppe:
F9511
PTR Multiconnectors
Series: AKZ1100
Screw-cage Clamp Principle
Conductor: Horizontal
Pitch: 5,08mm
F9511
PTR Multiconnectors
Series: AKZ1100
Screw-cage Clamp Principle
Conductor: Horizontal
Pitch: 5,08mm
| Technical Specifications |
 | |
| Rated Voltage (EN 61984): | 250V |
| Rated Current (T60): | 12A |
| Measured Impulse Voltage: | 4kV |
| Rated Cross Section, Single and Fine Stranded Wire: | 2,5mm2 |
| Stripped Length: | 7,0mm |
| Insulating Material: | PA |
| Temperature Range: | -30°C...+105°C |
| Flammability Class: | UL94V-0 |
| Colour: | Green |
| |
| Dimensions |
| Part Nr. | L | H | T |
| [mm] | |||
| AKZ1100/2 | 10,16 | 26,5 | 12,5 |
| AKZ1100/3 | 15,24 | 26,5 | 12,5 |
| AKZ1100/4 | 20,32 | 26,5 | 12,5 |
| AKZ1100/5 | 25,40 | 26,5 | 12,5 |
| |||
| Note |
| You will find suitable box headers in product groups F9513 and F9514. |
|
| Approvals |
 EN 60998,  1059,  |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
 |
| http://www.ptr-messtechnik.de |
|
