Term.Block 250V 3-Pole 45° Grey
Varenummer:
87-609
Varekode: ARK300/3
Vægt: 3 g
630 stk.
på lager
Bestil inden kl. 14 i dag for afsendelse i dag
Yderligere 4400 stk. kan skaffes tirsdag d. 3/11
Gruppe:
F9371
PTR Terminal Blocks
Series: AK300
Screw-cage Clamp Principle
Conductor: 45°
Pitch: 5mm
PTR Terminal Blocks
Series: AK300
Screw-cage Clamp Principle
Conductor: 45°
Pitch: 5mm
| Technical Specifications |
 | |
| Rated Voltage (EN 60998): | 250V |
| Rated Current (T60): | 24A |
| Test Voltage: | 2kV |
| Rated Cross Section Single Stranded Wire: | 2,5mm2 |
| Rated Cross Section Fine Stranded Wire: | 1,5mm2 |
| Stripped Length: | 7,0mm |
| Insulating Material: | PA |
| Temperature Range: | -30C ...+105C |
| Flammability Class: | UL94V-0 |
| Colour: | Dark Grey |
| |

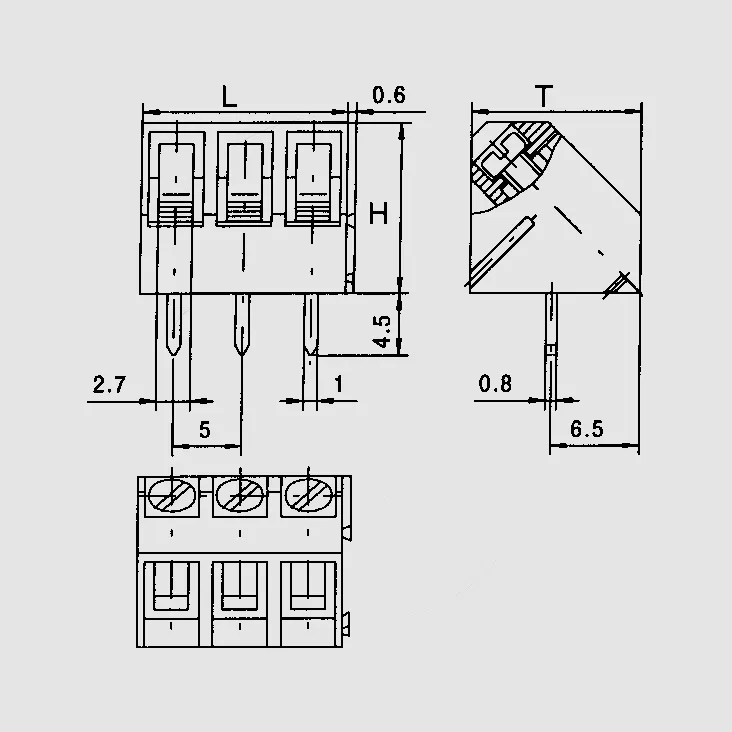

| Dimensions |
| Part Nr. | L | H | T |
| [mm] | |||
| ARK300/2 | 10,0 | 12,5 | 12,5 |
| ARK300/3 | 15,0 | 12,5 | 12,5 |
| |||
| Approvals |
 EN 60998,  1059,  |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 50 pieces |
|
| Manufacturer |
 |
| http://www.ptr-messtechnik.de |
|
