Term.Block 250V 3-pol. (h)
Varenummer:
87-605
Varekode: ARK500/3
Vægt: 2 g
329 stk.
på lager
Gruppe: F9357
PTR Terminal Blocks
Series: AK500
Screw Principle with Wire Guard
Conductor: Horizontal
Pitch: 5mm
| Technical Specifications |
 |
|||||||||||||||||||||
| Rated Voltage (EN 60998): | 250V | Rated Current (T60): | 17,5A | Test Voltage: | 2kV | Rated Cross Section Single Stranded Wire: | 1,5mm2 | Rated Cross Section Fine Stranded Wire: | 1,5mm2 | Stripped Length: | 6,0mm | Insulating Material: | PA | Temperature Range: | -30°C...+105°C | Flammability Class: | UL94V-0 | Colour: | Dark Grey | ||
|
|||||||||||||||||||||

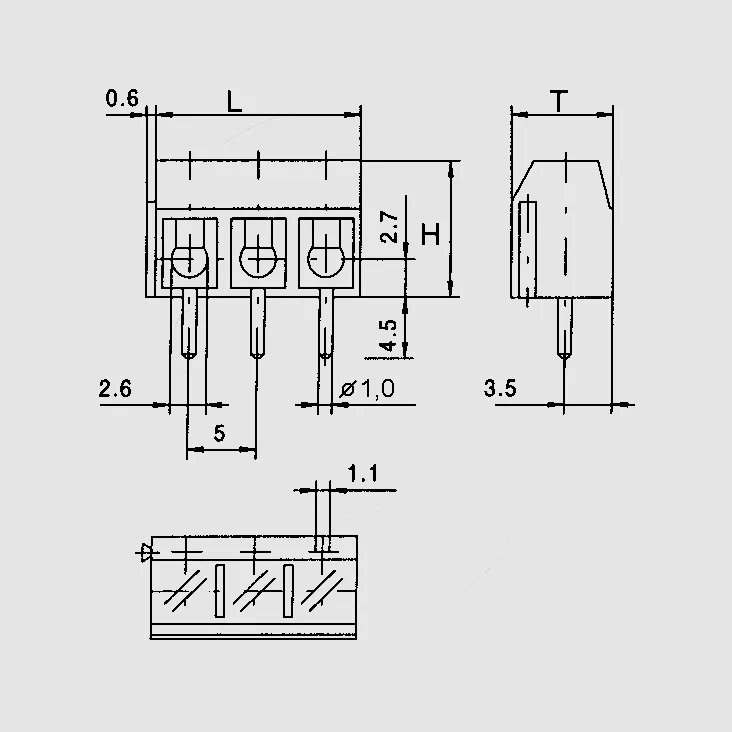

| Dimensions |
| Part Nr. | L | H | T | [mm] | ARK500/2 | 10,0 | 10,0 | 7,5 | ARK500/3 | 15,0 | 10,0 | 7,5 | |||||||
|
|||||||||||||||||||
| Approvals |
 EN 60998,  1059,  |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 50 pieces |
|
| Manufacturer |
 |
| http://www.ptr-messtechnik.de |
|
Produktfiler
Term.Block 250V 3-pol. (h)
87-605
/ ARK500/3
329 stk.
på lager
Gruppe: F9357
PTR Terminal Blocks
Series: AK500
Screw Principle with Wire Guard
Conductor: Horizontal
Pitch: 5mm
| Technical Specifications |
|
|||||||||||||||||||||
| Rated Voltage (EN 60998): | 250V | Rated Current (T60): | 17,5A | Test Voltage: | 2kV | Rated Cross Section Single Stranded Wire: | 1,5mm2 | Rated Cross Section Fine Stranded Wire: | 1,5mm2 | Stripped Length: | 6,0mm | Insulating Material: | PA | Temperature Range: | -30°C...+105°C | Flammability Class: | UL94V-0 | Colour: | Dark Grey | ||
|
|||||||||||||||||||||
| Dimensions |
| Part Nr. | L | H | T | [mm] | ARK500/2 | 10,0 | 10,0 | 7,5 | ARK500/3 | 15,0 | 10,0 | 7,5 | |||||||
|
|||||||||||||||||||
| Approvals |
| EN 60998, 1059, |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 50 pieces |
|
| Manufacturer |
| |
| http://www.ptr-messtechnik.de |
|
