Term.Block 250V 3-Pole (h) Green
Varenummer:
87-594
Varekode: ARK700/3
Vægt: 6 g
10 stk.
på lager
Bestil nu for afsendelse i morgen
Yderligere 17520 stk. kan skaffes lørdag d. 31/10
Gruppe:
F9345
PTR Terminal Blocks
Series: AK700
Screw-cage Clamp Principle
Conductor: Horizontal
Pitch: 5mm
PTR Terminal Blocks
Series: AK700
Screw-cage Clamp Principle
Conductor: Horizontal
Pitch: 5mm
| Technical Specifications |
 | |
| Rated Voltage (EN 60998): | 250V |
| Rated Current (T60): | 24A |
| Test Voltage: | 2kV |
| Rated Cross Section Single Stranded Wire: | 4,0mm2 |
| Rated Cross Section Fine Stranded Wire: | 2,5mm2 |
| Stripped Length: | 8,0 mm |
| Insulating Material: | PA |
| Temperature Range: | -30...+105C |
| Flammability Class: | UL94V-0 |
| Colour: | Green |
| |

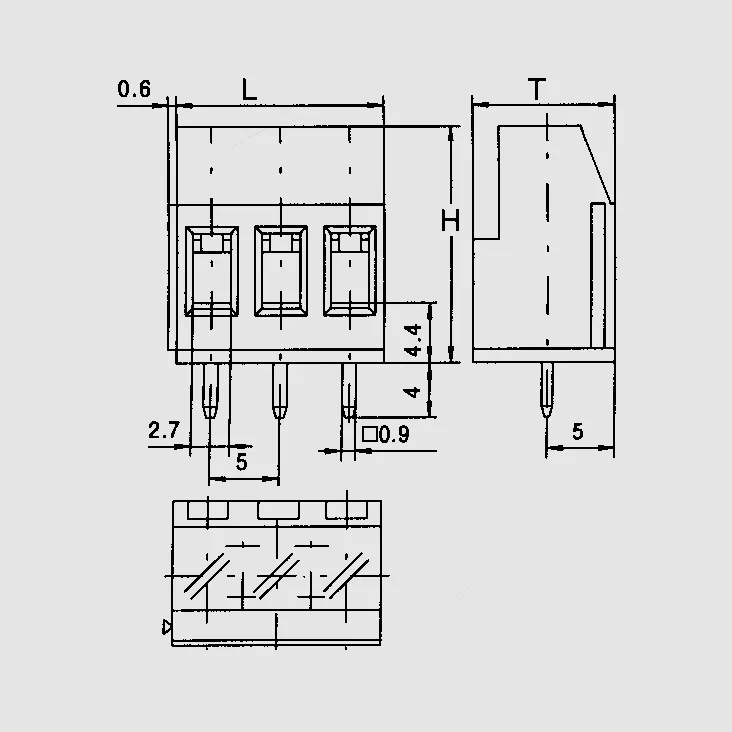

| Dimensions |
| Part Nr. | L | H | T |
| [mm] | |||
| ARK700/2 | 10,0 | 19,0 | 10,5 |
| ARK700/3 | 15,0 | 19,0 | 10,5 |
| |||
| Approvals |
 EN 60998,  1059,  |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 50 pieces |
|
| Manufacturer |
 |
| http://www.ptr-messtechnik.de |
|
Produktfiler
Term.Block 250V 3-Pole (h) Green
87-594
/ ARK700/3
10 stk.
på lager
Bestil nu for afsendelse i morgen
Ved bestilling nu, får vi dem hjem lørdag d. 31/10
Gruppe:
F9345
PTR Terminal Blocks
Series: AK700
Screw-cage Clamp Principle
Conductor: Horizontal
Pitch: 5mm
PTR Terminal Blocks
Series: AK700
Screw-cage Clamp Principle
Conductor: Horizontal
Pitch: 5mm
| Technical Specifications |
| |
| Rated Voltage (EN 60998): | 250V |
| Rated Current (T60): | 24A |
| Test Voltage: | 2kV |
| Rated Cross Section Single Stranded Wire: | 4,0mm2 |
| Rated Cross Section Fine Stranded Wire: | 2,5mm2 |
| Stripped Length: | 8,0 mm |
| Insulating Material: | PA |
| Temperature Range: | -30...+105C |
| Flammability Class: | UL94V-0 |
| Colour: | Green |
| |
| Dimensions |
| Part Nr. | L | H | T |
| [mm] | |||
| ARK700/2 | 10,0 | 19,0 | 10,5 |
| ARK700/3 | 15,0 | 19,0 | 10,5 |
| |||
| Approvals |
| EN 60998, 1059, |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 50 pieces |
|
| Manufacturer |
| |
| http://www.ptr-messtechnik.de |
|
