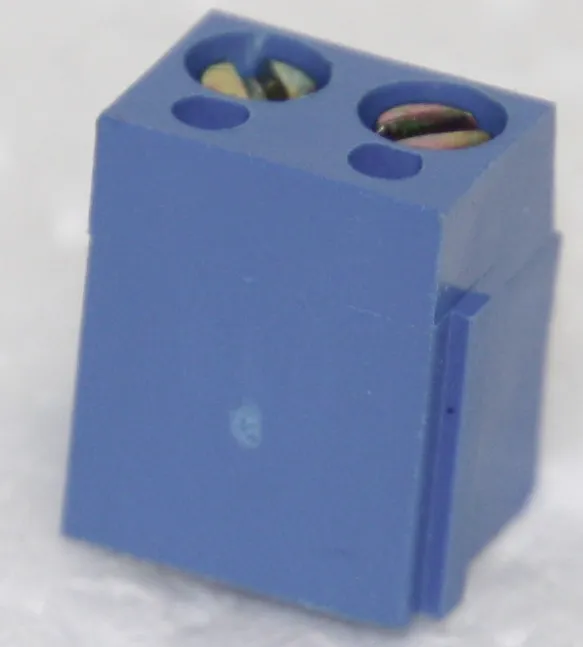

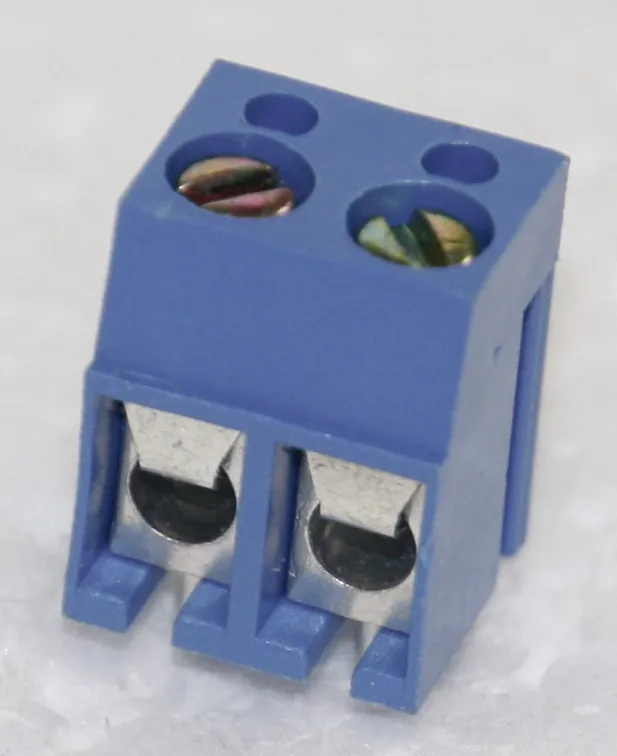

Terminal Block 250V 2-Pole Blue
Varenummer:
87-589
Varekode: ARK120/2
Vægt: 2 g
31 stk.
på lager
Bestil nu for afsendelse i morgen
Yderligere 10850 stk. kan skaffes lørdag d. 31/10
Gruppe:
F9323
PTR Terminal Blocks
Series: AKZ120
Screw Principle with Wire Guard
Conductor: Horizontal
Pitch: 5,08mm
PTR Terminal Blocks
Series: AKZ120
Screw Principle with Wire Guard
Conductor: Horizontal
Pitch: 5,08mm
| Technical Specifications |
 | |
| Rated Voltage (EN 60998): | 250V |
| Rated Current (T60): | 24A |
| Test Voltage: | 2kV |
| Rated Cross Section Single Stranded Wire: | 2,5mm2 |
| Rated Cross Section Fine Stranded Wire: | 1,5mm2 |
| Stripped Length: | 7,0mm |
| Insulating Material: | PA |
| Temperature Range: | -30...+105C |
| Flammability Class: | UL94V-0 |
| Colour: | Blue |
| |
| Dimensions |
| Part Nr. | L | H | T |
| [mm] | |||
| ARK120/2 | 10,16 | 12,5 | 9 |
| ARK120/3 | 15,24 | 12,5 | 9 |
| |||
| Approvals |
 EN 60998,  1059,  |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 50 pieces |
|
| Manufacturer |
 |
| http://www.ptr-messtechnik.de |
|
Produktfiler
