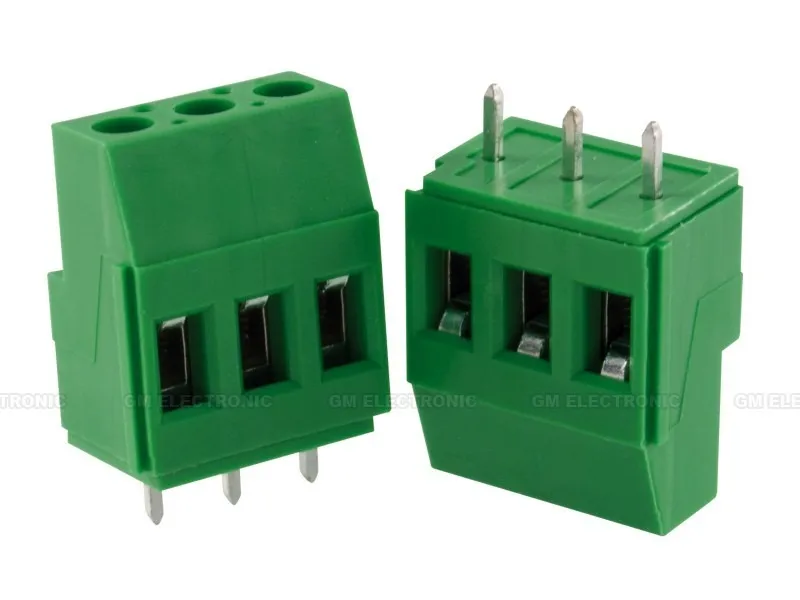

Terminal Block 24A 250V 3-Pole Green
Varenummer:
87-588
Varekode: AKZ700/3
Vægt: 7 g
24 stk.
på lager
Gruppe:
F9321
PTR Terminal Blocks
Series: AKZ700
Screw-cage Clamp Principle
Conductor: Horizontal
Pitch: 5,08mm
F9321
PTR Terminal Blocks
Series: AKZ700
Screw-cage Clamp Principle
Conductor: Horizontal
Pitch: 5,08mm
| Technical Specifications |
 | |
| Rated Voltage (EN 60998): | 250V AC |
| Rated Current (T60): | 24A |
| Test Voltage: | 2kV |
| Rated Cross Section Single Stranded Wire: | 4,0mm2 |
| Rated Cross Section Fine Stranded Wire: | 2,5mm2 |
| Stripped Length: | 8,0mm |
| Insulating Material: | PA |
| Temperature Range: | -30...+105°C |
| Flammability Class: | UL94V-0 |
| Colour: | Green |
| |
| Dimensions |
| Part Nr. | L | H | T |
| [mm] | |||
| AKZ700/2 | 10,16 | 19,0 | 10,5 |
| AKZ700/3 | 15,24 | 19,0 | 10,5 |
| |||
| Approvals |
 EN 60998,  1059,  |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 50 pieces |
|
| Manufacturer |
 |
| http://www.ptr-messtechnik.de |
|
Produktfiler
