Spring Term. Blck 250V 2-Pole Lever Grey
Varenummer:
87-572
Varekode: AK4101/2
Vægt: 2 g
0 stk.
på lager
Gruppe:
F9113
PTR Spring Force Terminals
Series: AK4101
With Lever
Conductor: Horizontal
Pitch: 5mm
PTR Spring Force Terminals
Series: AK4101
With Lever
Conductor: Horizontal
Pitch: 5mm
| Technical Specifications |
 | |
| Rated Voltage (EN 60998): | 250V AC |
| Rated Current (T60): | 17,5A |
| Test Voltage: | 2kV |
| Rated Cross Section Single Stranded Wire: | 1,5mm2 |
| Stripped Length: | 9,0mm |
| Insulating Material: | PA |
| Temperature Range: | -30...+105C |
| Flammability Class: | UL94V-0 |
| Colour: | Pebble Grey |
| |

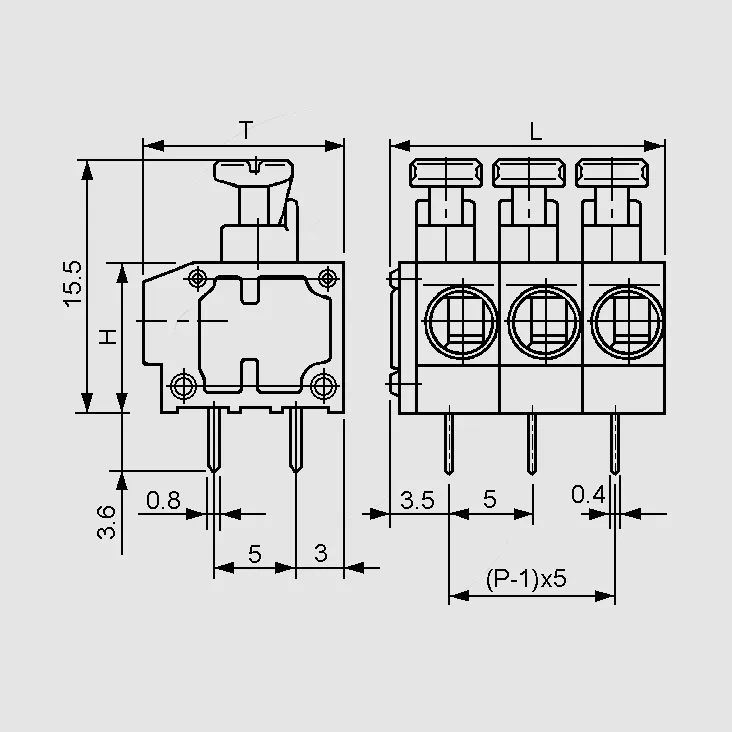

| Dimensions |
| Part Nr. | L | H | T |
| [mm] | |||
| AK4101/2 | 11,6 | 9,2 | 12,5 |
| AK4101/3 | 16,6 | 9,2 | 12,5 |
| AK4101/4 | 21,6 | 9,2 | 12,5 |
| AK4101/5 | 26,6 | 9,2 | 12,5 |
| |||
| Approvals |
 EN 60998,  1059,  |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
 |
| http://www.ptr-messtechnik.de |
|
Produktfiler
