Spring Terminal Block 250V 5-Pole Lever
Varenummer:
87-565
Varekode: AK3001/5
Vægt: 5 g
33 stk.
på lager
Gruppe:
F9111
PTR Spring Force Terminals
Series: AK3001
With Lever
Conductor: Horizontal
Pitch: 5mm to 5,08mm Adjustable
PTR Spring Force Terminals
Series: AK3001
With Lever
Conductor: Horizontal
Pitch: 5mm to 5,08mm Adjustable
| Technical Specifications |
 | |
| Rated Voltage (EN 60998): | 250V AC |
| Rated Current (T60): | 24A |
| Test Voltage: | 2kV |
| Rated Cross Section Single Stranded Wire: | 2,5mm2 |
| Rated Cross Section Fine Stranded Wire: | 2,5mm2 |
| Stripped Length: | 6,0mm |
| Insulating Material: | PA |
| Temperature Range: | -30...+105C |
| Flammability Class | UL94V-0 |
| Colour: | Pebble Grey |
| |

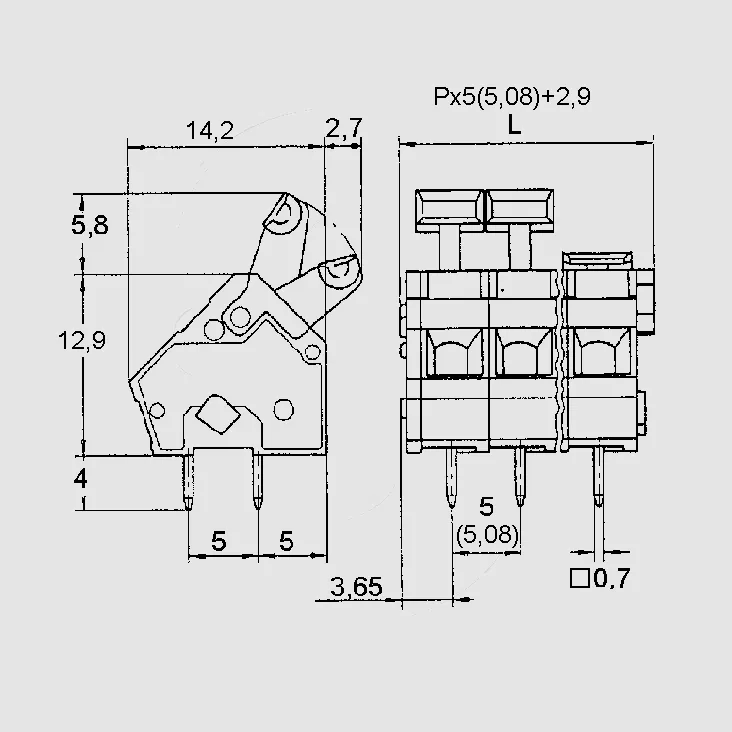

| Dimensions |
| Part Nr. | L | H | T |
| [mm] | |||
| AK3001/2 | 12,9 | 12,9 | 14,2 |
| AK3001/3 | 17,9 | 12,9 | 14,2 |
| AK3001/4 | 22,9 | 12,9 | 14,2 |
| AK3001/5 | 27,9 | 12,9 | 14,2 |
| AK3001/6 | 32,9 | 12,9 | 14,2 |
| |||
| Approvals |
 EN 60998,  1059,  |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
 |
| http://www.ptr-messtechnik.de |
|
