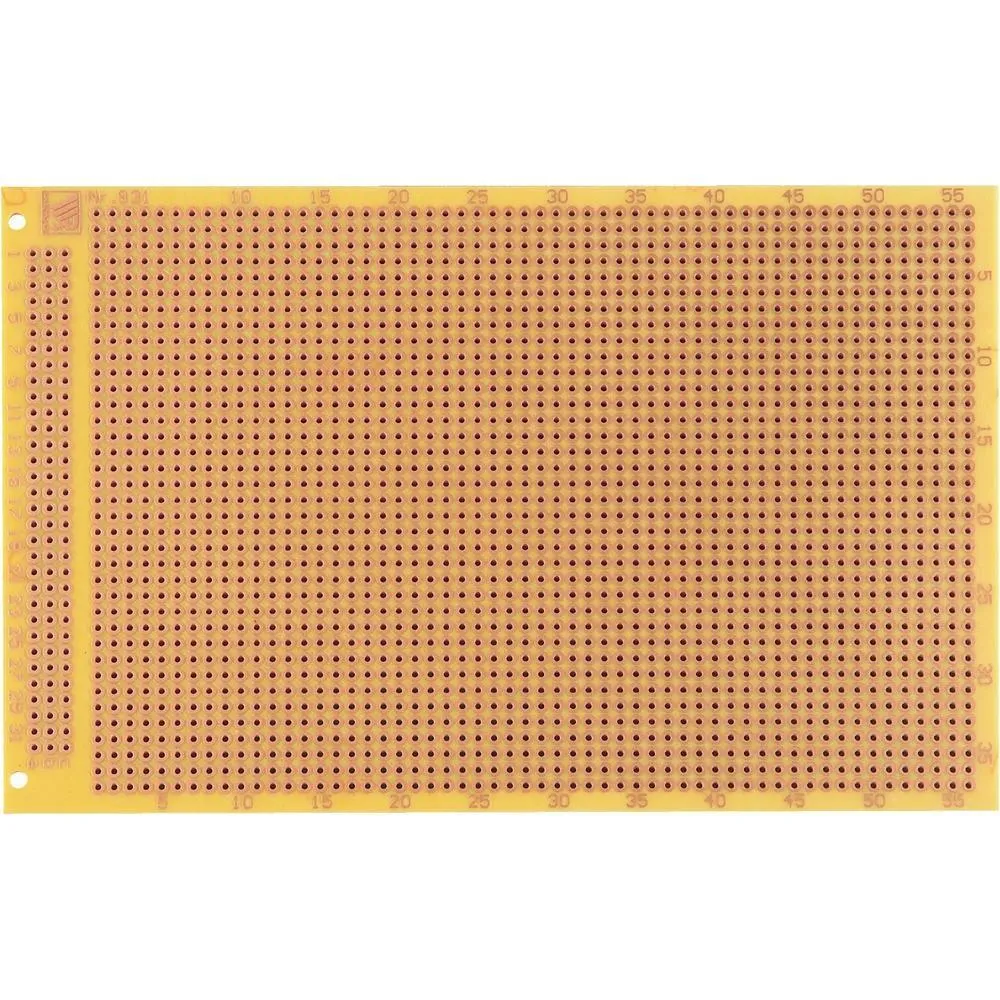

Board with Dots 160x100mm. HP
Varenummer:
87-417
Varekode: UP931HP
Vægt: 29 g
14 stk.
på lager
WR Rademacher 931-HP Test Circuit Board 931
Technical data
- Rows of holes: 37
- with multipoint connection and location holes for 32, 64 or 96 pin plugs in accordance with DIN41612
| Category | Prototyping PCB |
|---|---|
| Features | IHK standard |
| Type | single sided |
| Type | With connector strip connection and fixing holes for 32-, 64- or 96-pin. Connector according to DIN 41612 |
| Material | Phenolic paper |
| Length | 100 mm |
| Width | 160 mm |
| CS | 2.54 mm |
| Connector spacing | 5.08 mm |
| No. of conductor strips | 37 |
| Copper coating (thickness) | 35 µm |
| Hole Ø | 1 mm |
| Material thickness | 1.5 mm |
| Content | 1 pc(s) |
| Type | WR-Typ 931 |
Highlights & details
- Testing board for electronics professions according to IHK-Guidelines(L x W) 100 mm x 160 mm
- Hard paper with Cu.-plating ·
Description
For telecommunications technicians and information technicians.
Inkl. moms
Kr. 42,75
- v/10 – Kr. 35,62
- v/25 – Kr. 28,50
- v/100 – Kr. 24,22
