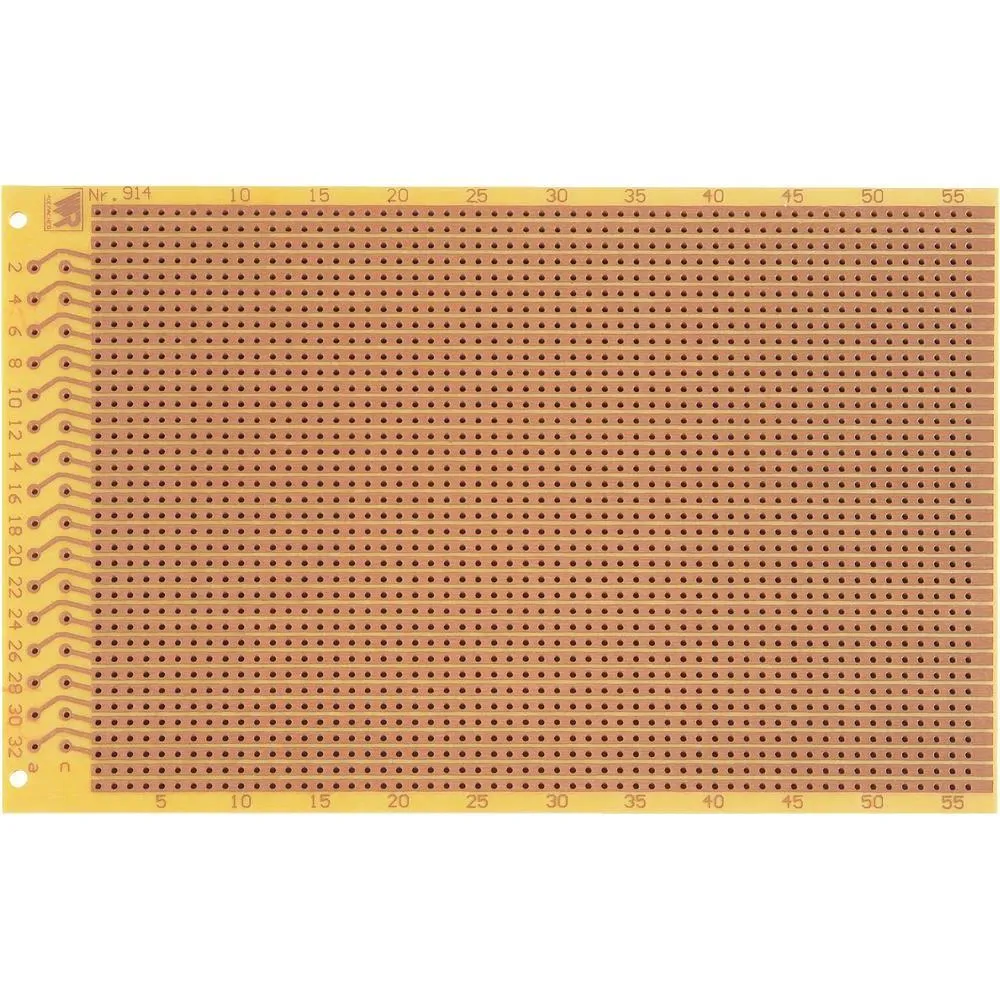

Hulprint special veroboard HP
Varenummer:
87-414
Varekode: UP914HP
Vægt: 32 g
11 stk.
på lager
Gruppe: G3231
RADEMACHER Prototyping and Test Boards
Series: UP
For Electronic Professions
Pitch: 2,54mm
| Features |
| • Test boards with Cu layer made of Laminated Paper or Epoxy resin glass fabric • For electronic professions in accordance with IHK regulations |
 |
| Technical Specifications |
|
|||||||||||
| Dimensions: | 160x100mm | Pitch: | 2,54mm | Holes Ø: | 1mm | Cu Layer: | 35µm | Material Thickness: | 1,5mm | ||
|
|||||||||||
| UP913EP |
| Dot Matrix, Cu single-sided, Test Boards for Industrial Electronics, Equipment/Manufacturing Technology |
|
| Material: Epoxy Hole sequence: 37 Multi-point connector and mounting holes for 32-pin socket DIN 41612 housing D, pitch: 2,54mm |
|
| UP914EP/UP914HP |
| Dot Matrix, Cu single-sided, Test Board for Power Electronics, Equipment/Technology |
|
| Material: _EP = Epoxy, _HP = Laminated Paper Conductor line: 37 Socket: 32 pin, DIN 41612, housing D, pitch: 2,54mm UP914EP: with rear position print for clear and easy assembly UP914HP: without position print |
|
| UP931EP/UP931HP |
| Dot Matrix, Cu single-sided, Test Boards for Electronic Communications, Information Technology |
|
| Material: _EP = Epoxy, _HP = Laminated Paper Hole sequence: 37 Socket: 32-/64-/96-pin, DIN 41612, pitch: 2,54mm |
|
| UP931EP-Q |
| Square Matrix, Cu single-sided, Test Boards for Electronic Communications, Information Technology |
|
| Material: Epoxy Hole sequence: 37 Socket: 32-/64-/96-pin, DIN 41612, pitch: 2,54mm |
|
| UP933HP |
| Strip Pitch, Cu single-sided, Test Boards for Electronic Communications, Information Technology |
|
| With rear position print Material: Laminated Paper Hole sequence: 37 Multi-point connector and mounting holes for 32-/64-/96-pin socket DIN 41612 |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 5 pieces |
|
| Manufacturer |
 |
| http://www.rademacher.de |
|
Inkl. moms
Kr. 42,48
- v/10 – Kr. 35,39
- v/25 – Kr. 28,31
- v/100 – Kr. 24,07
