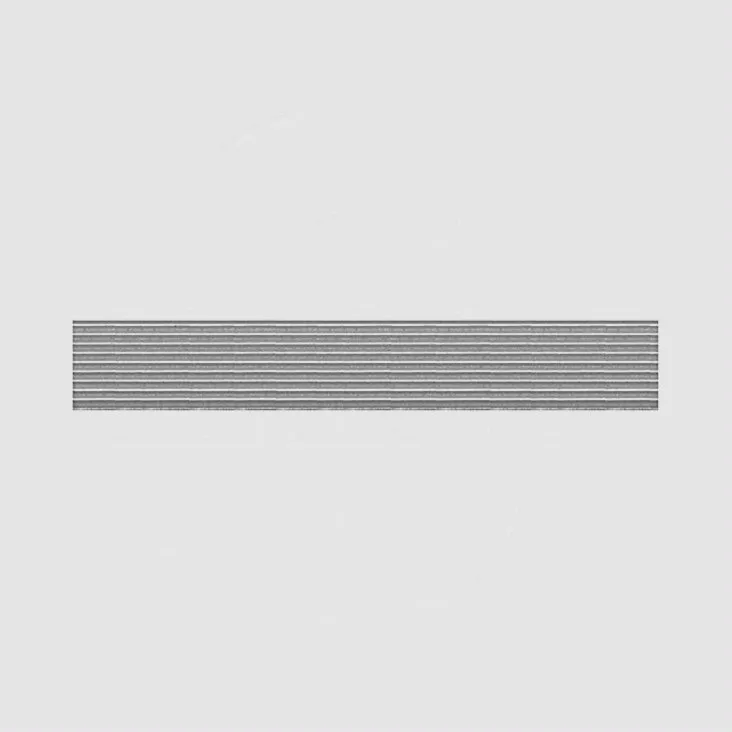

Flat Cable Grey 16 Wire
Varenummer:
87-336
Varekode: FBK28-16G
Vægt: 1124 g
79 stk.
på lager
Gruppe:
G1833
KLASING PVC Flat Cables
Series: FBK_G
Cross-Section: AWG28
Pitch: 1,27mm
Colour: Grey
KLASING PVC Flat Cables
Series: FBK_G
Cross-Section: AWG28
Pitch: 1,27mm
Colour: Grey
| Features |
| Extruding strip cable, solid tinned copper wire AWG28 (0,09mm2), pitch: 1,27mm, grey, special PVC insulation (Similar Y18 according to VDE0207) with blue polarity marking. Flame retardant according to VDE 0472 and UL |
 |
| Technical Specifications |
| |
| Temperature Range: | -20...+105C |
| Rated Voltage: | 300V |
| Rated Current: | 1A |
| Test Voltage: | 2000V |
| Insulation Resistance: | >20MW*km |
| Capacitance (@1MHz): | 45pF/m |
| Inductance (@1MHz): | 0,46µH/m |
| Impedance: | 104W |
| Crosstalk, Near (@1MHz): | 60dB |
| Crosstalk, Far (@1MHz): | 50dB |
| |
| Approvals |
 2651 |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 30,5m on unireel |
|
| Manufacturer |
| Klasing http://www.klasing-kabel.de |
|
