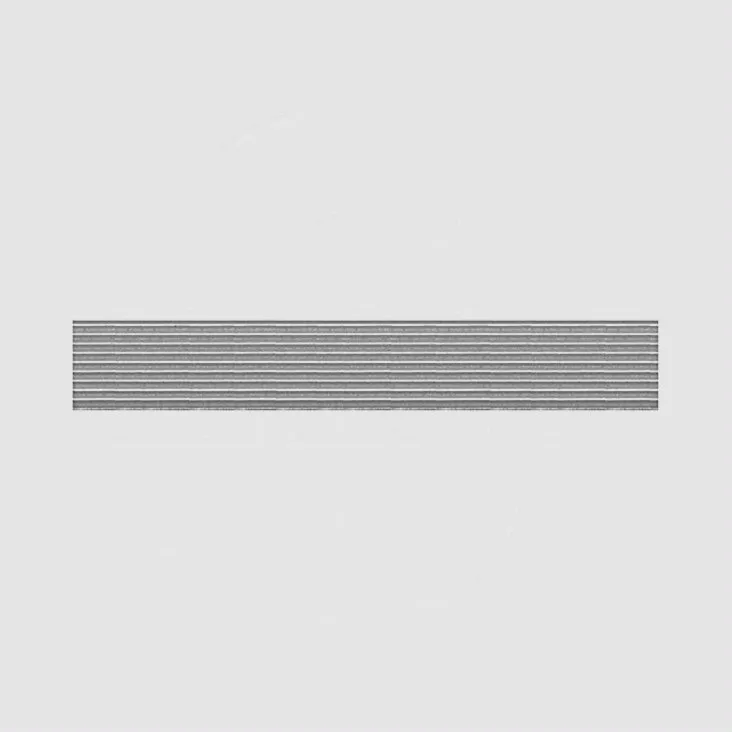

Flat Cable Grey 10 Wire
Varenummer:
87-333
Varekode: FBK28-10G
Vægt: 20 g
90 stk.
på lager
Bestil inden kl. 14 i dag for afsendelse i dag
Yderligere 22905 stk. kan skaffes fredag d. 6/11
Features

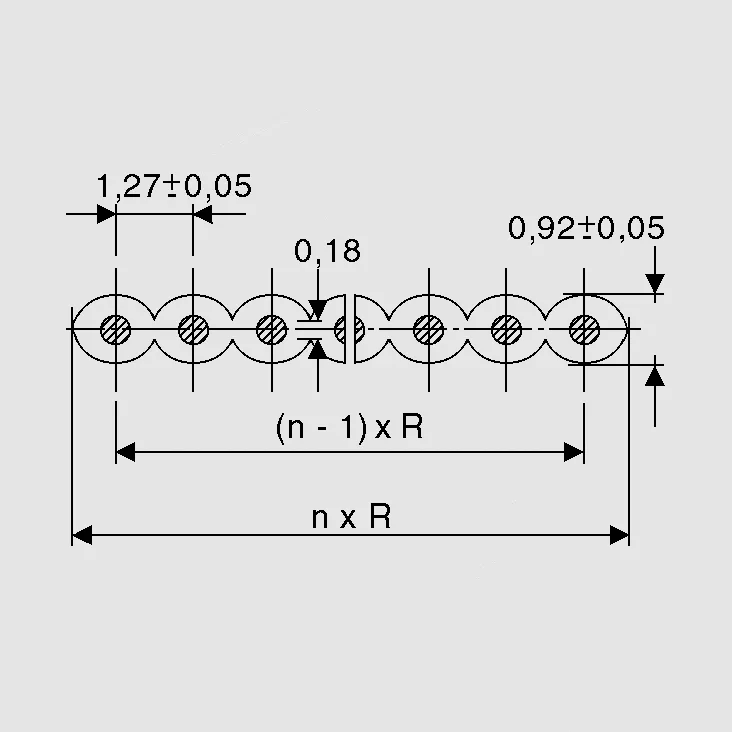

| Extruding strip cable, solid tinned copper wire AWG28 (0,09mm2), pitch: 1,27mm, grey, special PVC insulation (Similar Y18 according to VDE0207) with blue polarity marking. Flame retardant according to DIN VDE 0482 Teil 332-1-2 / IEC 60332-1-2, UL VW-1 / CSA FT-1 |
 |
| Technical Specifications |
|
|
| Temperature Range: | -20...+105°C |
| Operating Voltage, Max.: | 300V |
| Current Capability, Max.: | 2,1A |
| Test Voltage, 50Hz, 1Min.: | 2kV |
| Insulation Resistance: | >20MOhm*km |
| Capacitance (@1kHz): | 60pF/m |
| Impedance: | 100Ohm/1MHz |
|
|
| Approvals |
   |
Produktfiler
Flat Cable Grey 10 Wire
87-333
/ FBK28-10G
90 stk.
på lager
Bestil inden kl. 14 i dag for afsendelse i dag
Ved bestilling nu, får vi dem hjem fredag d. 6/11
Features
| Extruding strip cable, solid tinned copper wire AWG28 (0,09mm2), pitch: 1,27mm, grey, special PVC insulation (Similar Y18 according to VDE0207) with blue polarity marking. Flame retardant according to DIN VDE 0482 Teil 332-1-2 / IEC 60332-1-2, UL VW-1 / CSA FT-1 |
|
| Technical Specifications |
|
|
| Temperature Range: | -20...+105°C |
| Operating Voltage, Max.: | 300V |
| Current Capability, Max.: | 2,1A |
| Test Voltage, 50Hz, 1Min.: | 2kV |
| Insulation Resistance: | >20MOhm*km |
| Capacitance (@1kHz): | 60pF/m |
| Impedance: | 100Ohm/1MHz |
|
|
| Approvals |
| |
Produktfiler
