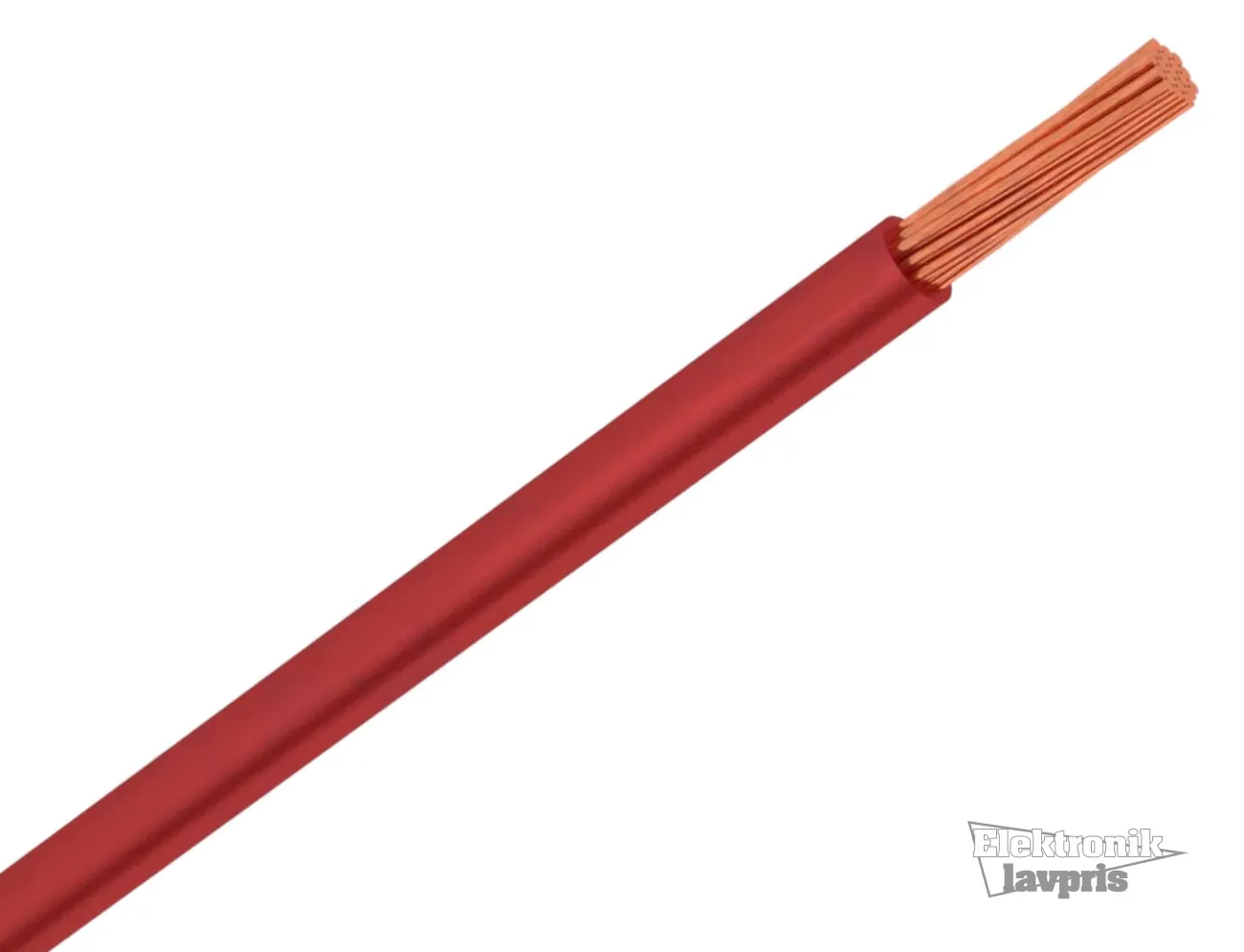

Wire H05V-K 0,5mm² Rød
Varenummer:
87-244
Varekode: H05VK05RT
Vægt: 9 g
820 stk.
på lager
Gruppe:
G1243
XBK PVC Stranded Hook-Up Wires
Series: H05VK
Cross-Section: 0,5mm2
Colours: Various
| Features |
| • Harmonized PVC stranded hook-up wires • For internal wiring of devices • Being used to wire lighting, tubes, surfaces and concealed installations for signal systems |
 |
| Construction |
| • Stranded copper wire conductor according to VDE 0295 class 5 • Insulated with PVC TI 1 according to HD 21.1 S3 • Conductor identification meets VDE 0293 |
|
| Technical Specifications |
|
|
| Outer Diameter: | 2,15mm |
| Rated Voltage, UO / U: | 300V/500V |
| Test Voltage: | 2000V |
| Conductor Cross-Section: | 0,5mm2 |
| Conductor Composition: | 16x0,195mm |
| Minimum Bend Radius: | 4 x Diameter |
| Temperature Range | |
| Fixed Installation | -40...+70°C |
| At Installation: | +5...+70°C |
|
|
Inkl. moms
v/10
Kr. 3,50
- v/100 – Kr. 2,00
- v/1000 – Kr. 1,50
Wire H05V-K 0,5mm² Rød
87-244
/ H05VK05RT
820 stk.
på lager
Gruppe:
G1243
XBK PVC Stranded Hook-Up Wires
Series: H05VK
Cross-Section: 0,5mm2
Colours: Various
| Features |
| • Harmonized PVC stranded hook-up wires • For internal wiring of devices • Being used to wire lighting, tubes, surfaces and concealed installations for signal systems |
|
| Construction |
| • Stranded copper wire conductor according to VDE 0295 class 5 • Insulated with PVC TI 1 according to HD 21.1 S3 • Conductor identification meets VDE 0293 |
|
| Technical Specifications |
|
|
| Outer Diameter: | 2,15mm |
| Rated Voltage, UO / U: | 300V/500V |
| Test Voltage: | 2000V |
| Conductor Cross-Section: | 0,5mm2 |
| Conductor Composition: | 16x0,195mm |
| Minimum Bend Radius: | 4 x Diameter |
| Temperature Range | |
| Fixed Installation | -40...+70°C |
| At Installation: | +5...+70°C |
|
|
