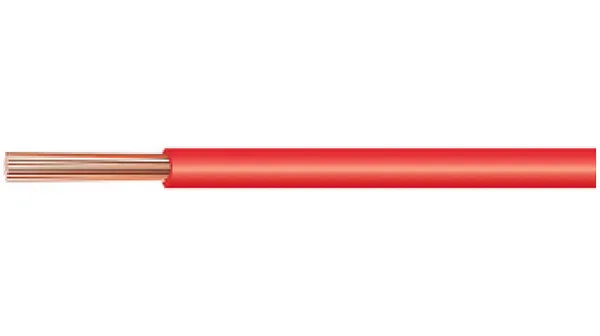

Wire LIY-V 0,25mm² Rød
Varenummer:
87-231
Varekode: LIYV025RT
Vægt: 5 g
1284 stk.
på lager
German Standard Industrial Cables LiY / LiYv / LiYv-t
| Application and Description | These PVC insulated stranded hook-up wires are employed in telecommunication systems, toys, sports equipment and general wiring equipment used in electrical engineering to meet stringent demands in terms of high and ultra-high flexibility. They are not permitted to be installed in heavy current applications outside of the equipment. |
| Standard and Approval | VDE 0812, CE Low Voltage Directive 73/23/EEC and 93/68/EEC, ROHS compliant |
| Cable Construction | - Tinned copper strands - Strands to VDE-0295 Class-5, IEC 60228 Cl-5 and HD383 - Special PVC core insulation, compound YI3 to DIN VDE 0812 - Cores identification to VDE-0293 |
| Technical Characteristics | - Working voltage: 0.14 mm² 500 V/0.25-1.50 mm² 900 V - Test voltage: 0.14 mm² 1200 V/0.25-1.50 mm² 2500 V - Flexing bending radius: 12.5 x Ø - Static bending radius: 12.5 x Ø - Flexing temperature: -5º C to +70º C - Static temperature: -30º C to +80º C(temporary 105 º C for LiYv-t) - Flame retardant: VDE 0472 part 804, test method B, and IEC 60332.1 - Insulation resistance: 10 MΩ x km |
Cable Parameter
|
AWG |
NO. OF CORES X NOMINAL CROSS SECTIONAL AREA # X MM² |
NOMINAL OVERALL DIAMETER MM |
NOMINAL COPPER WEIGHT KG/KM |
NOMINAL CABLE WEIGHT KG/KM |
|
26(18/38) |
1 x 0.14 |
1.1 |
1.4 |
3.0 |
|
24(14/34) |
1 x 0.25 |
1.3 |
2.4 |
4.0 |
|
22(19/34) |
1 x 0.34 |
1.4 |
3.6 |
5.0 |
|
20(16/32) |
1 x 0.50 |
1.8 |
4.8 |
8.0 |
|
18(24/32) |
1 x 0.75 |
2.0 |
7.2 |
10.0 |
|
17(32/32) |
1 x 1.00 |
2.1 |
9.6 |
13.0 |
|
16(30/30) |
1 x 1.50 |
2.6 |
14.4 |
19.0 |
|
14(30/50) |
1 x 2.50 |
3.4 |
24.0 |
31.0 |
