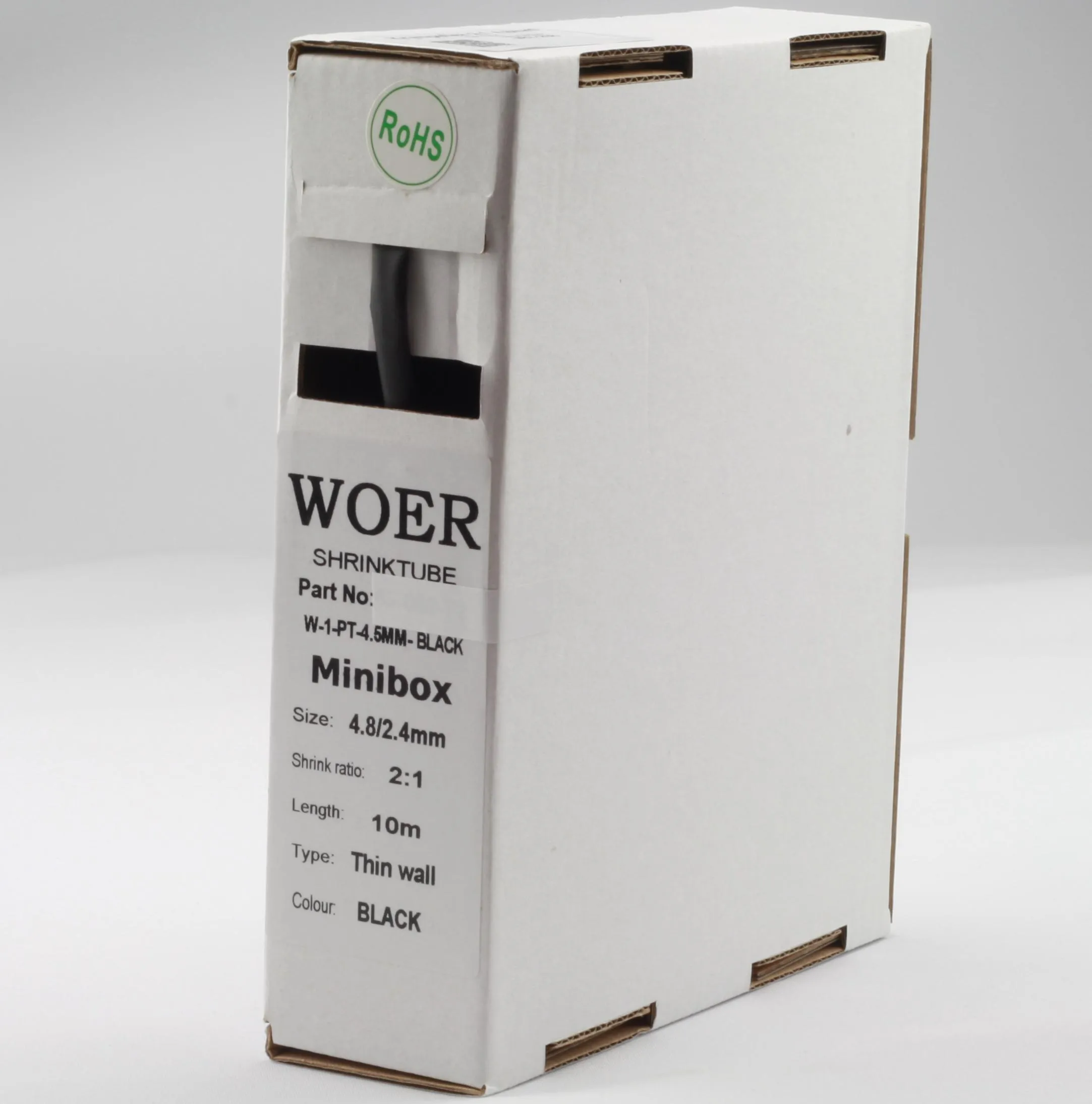

Krympeflex 2:1 4,8mm 10m Sort
Varenummer:
87-208
Varekode: SBOX48SW
Vægt: 169 g
4 stk.
på lager
Gruppe: G8631
Polyolefin Heat-Shrinkable Tubing
Series: SBOX
Thin Walled in Dispenser Box
Tubing: 2:1
Colours: Black, Blue, Red, Green, Yellow, Green/Yellow, Transparent
Features
| • Thin walled radiation-interlaced polyolefin • Flame retardant, self-extinguishing |
 |
| Technical Specifications |
|
|
| Continuous Operating Temperature: | -55...+125°C |
| Minimum Shrink Temperature: | 120°C |
| Dielectric Strength, Min.: | 20kV/mm |
| Flammability: | Self-Extinguishing, Flame Retardant |
|
|
| Approvals |
 UL 224 |
|
| Dimensions |
| Part Nr. | D | d | W |
| [mm] | [mm] | [mm] | |
| SBOX16_ | 1,6 | 0,8 | 0,45 |
| SBOX24_ | 2,4 | 1,2 | 0,51 |
| SBOX32_ | 3,2 | 1,6 | 0,51 |
| SBOX48_ | 4,8 | 2,4 | 0,51 |
| SBOX64_ | 6,4 | 3,2 | 0,64 |
| SBOX95_ | 9,5 | 4,8 | 0,64 |
| SBOX127_ | 12,7 | 6,4 | 0,64 |
| SBOX191_ | 19,0 | 9,5 | 0,76 |
| D = Inner Dimensions Before Shrinkage, d = Inner Dimensions After Shrinkage, W = Wall Strength | |||
Inkl. moms
Kr. 99,00
- v/3 – Kr. 79,00
- v/10 – Kr. 49,00
