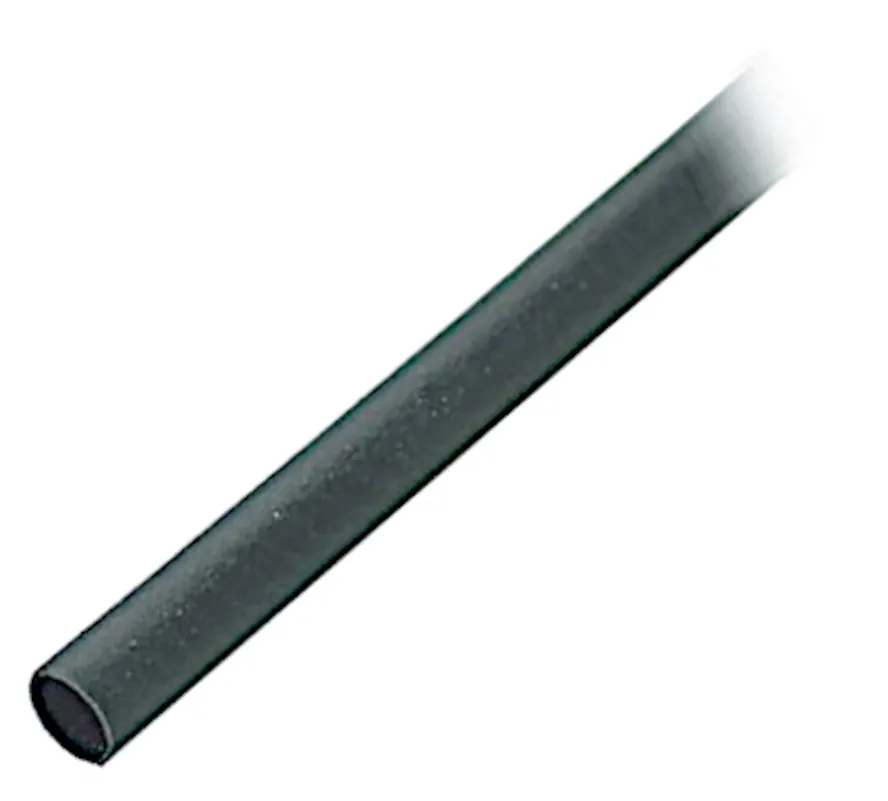

KrympeFlex 2:1 2,4mm 0,5m Sort/Black
Varenummer:
87-190
Varekode: PCX024SW
Vægt: 1 g
52 stk.
på lager
Gruppe: G8611
Polyolefin Heat-Shrinkable Tubing
Series: PCX
Thin Walled, Strips
Tubing: 2:1
Colours: Black, Blue, Red
| Features |
| • Thin walled radiation-interlaced polyolefin • Flame retardant, self-extinguishing |
 |
| Technical Specifications |
|
|
| Continuous Operating Temperature: | -55...+125°C |
| Minimum Shrink Temperature: | 120°C |
| Dielectric Strength, Min.: | 20kV/mm |
| Flammability: | Flame Retardant |
|
|
| Dimensions |
| Part Nr. | D | d | W |
| [mm] | [mm] | [mm] | |
| PCX016_ | 1,6 | 0,8 | 0,45 |
| PCX024_ | 2,4 | 1,2 | 0,51 |
| PCX032_ | 3,2 | 1,6 | 0,51 |
| PCX048_ | 4,8 | 2,4 | 0,51 |
| PCX064_ | 6,4 | 3,2 | 0,64 |
| PCX095_ | 9,5 | 4,8 | 0,64 |
| PCX127_ | 12,7 | 6,4 | 0,64 |
| D = Inner Dimensions Before Shrinkage, d = Inner Dimensions After Shrinkage, W = Wall Strength | |||
|
|||
| Approvals |
 UL 224 |
Inkl. moms
Kr. 9,00
- v/10 – Kr. 5,50
- v/30 – Kr. 5,00
- v/100 – Kr. 3,75
- v/1000 – Kr. 3,00
