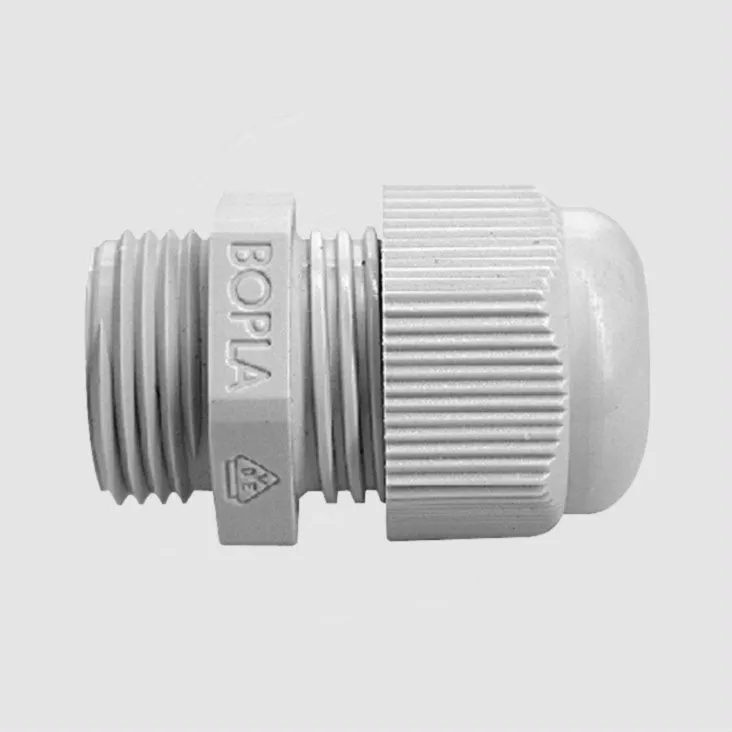

Kabelforskruning PG11, 5-10 mm, lys grå
Varenummer:
87-116
Varekode: BKV11
Vægt: 8 g
80 stk.
på lager
Bestil nu for afsendelse i morgen
Yderligere 1090 stk. kan skaffes mandag d. 9/11
Kabel forskruning PG11, 5-10 mm, lys grå
Features
| • PG cable glands made of polyamide IP68 • With strain relief lamellas for a secure cable grip |
 |
| Dimensions |
| Part Nr. | PG | Ø | SW | Cable-Ø |
| [mm] | [mm] | |||
| BKV7 | 7 | 12,5 | 15 | 3...6,5 |
| BKV9 | 9 | 15,2 | 19 | 4...8 |
| BKV11 | 11 | 18,6 | 22 | 5...10 |
| BKV13 | 13 | 20,4 | 24 | 6...12 |
| BKV16 | 16 | 22,5 | 27 | 10...14 |
| BKV21 | 21 | 28,3 | 33 | 13...18 |
| Ø = Diameter in Accordance with DIN 40430 |
||||
|
||||

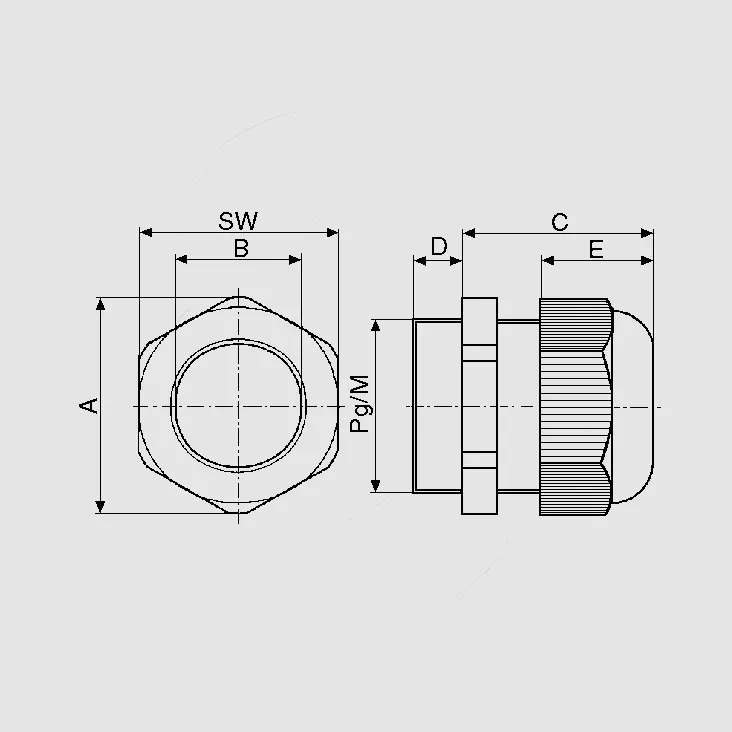

| Part Nr. | A | B | Cmax. | Cmin. | D | E |
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | |
| BKV7 | 16,2 | 7,0 | 22,5 | 19,0 | 8 | 13,0 |
| BKV9 | 21,2 | 8,5 | 26,0 | 21,0 | 8 | 15,5 |
| BKV11 | 24,5 | 10,5 | 29,0 | 22,5 | 8 | 17,5 |
| BKV13 | 26,5 | 12,5 | 30,0 | 23,5 | 9 | 18,0 |
| BKV16 | 29,8 | 14,5 | 32,5 | 25,0 | 10 | 18,6 |
| BKV21 | 36,0 | 18,5 | 36,5 | 29,0 | 11 | 22,5 |
|
||||||
Produktfiler
