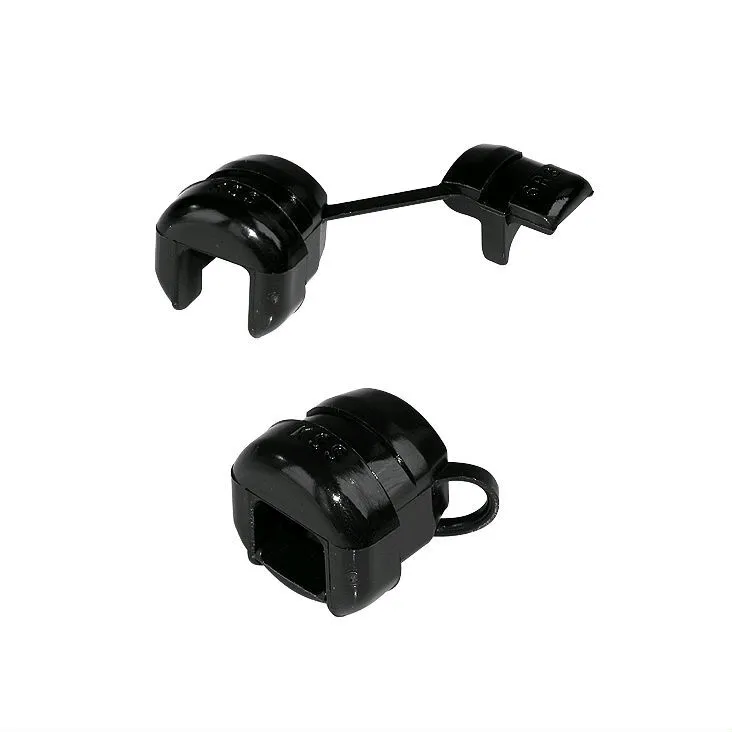

Cable Gland Round 6,2-7,4mm
Varenummer:
87-112
Varekode: SR5R2
Vægt: 1 g
75 stk.
på lager
Gruppe:
G8413
PVC Cable Glands
Series: SRF
With Strain Relief
Colour: Black
PVC Cable Glands
Series: SRF
With Strain Relief
Colour: Black
| Features |
| Serves as a housing feedthrough for cables Protects the connecting cable on the electrical device from tension and pressure |
 |
| Selection Table |
| Part Nr. | Cable Profile | Cable- | Cable- |
| Min. | Max. | ||
| [mm] | [mm] | ||
| SRF23 | Flat | 2,3x4,5 | 2,8x5,3 |
| SRF42 | Flat | 3,0x7,1 | 3,8x7,6 |
| SR5R2 | Round | 6,2 | 7,4 |
| SR6R3 | Round | 8,2 | 9,2 |
| |||
| Dimensions |
| Part Nr. | A | B | D | F | F |
| min. | max. | ||||
| [mm] | [mm] | [mm] | [mm] | [mm] | |
| SRF23 | 9,5 | 8,7 | 10,3 | 1,8 | 3,2 |
| SRF42 | 12,7 | 11,8 | 10,3 | 1,8 | 2,5 |
| SR5R2 | 12,7 | 11,5 | 11,0 | 1,8 | 2,5 |
| SR6R3 | 15,9 | 14,0 | 14,8 | 1,9 | 3,2 |
| F = Wall Thickness | |||||
| |||||
| Approvals |
Material: 94V-2SRF23, SRF42, SR6R3: E98727 |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 100 pieces |
|
| Manufacturer |
| Various |
|
Inkl. moms
Kr. 3,38
- v/10 – Kr. 2,70
- v/25 – Kr. 1,69
- v/100 – Kr. 1,05
- v/1000 – Kr. 0,76
