CuZn-Spacer, UNC 05/08
Varenummer:
87-013
Varekode: UU4305
Vægt: 1 g
0 stk.
på lager
Kontakt os for at få oplyst leveringstid
Gruppe:
G8285
Brass Adapter Spacers
Series: UU4
Nickel-Plated
Inner/Outer Thread: UNC4-40
Key Width: 5mm
Brass Adapter Spacers
Series: UU4
Nickel-Plated
Inner/Outer Thread: UNC4-40
Key Width: 5mm
| Features |
| Made of brass, nickel-plated Inner thread and thread bar with UNC4-40 thread |
 |

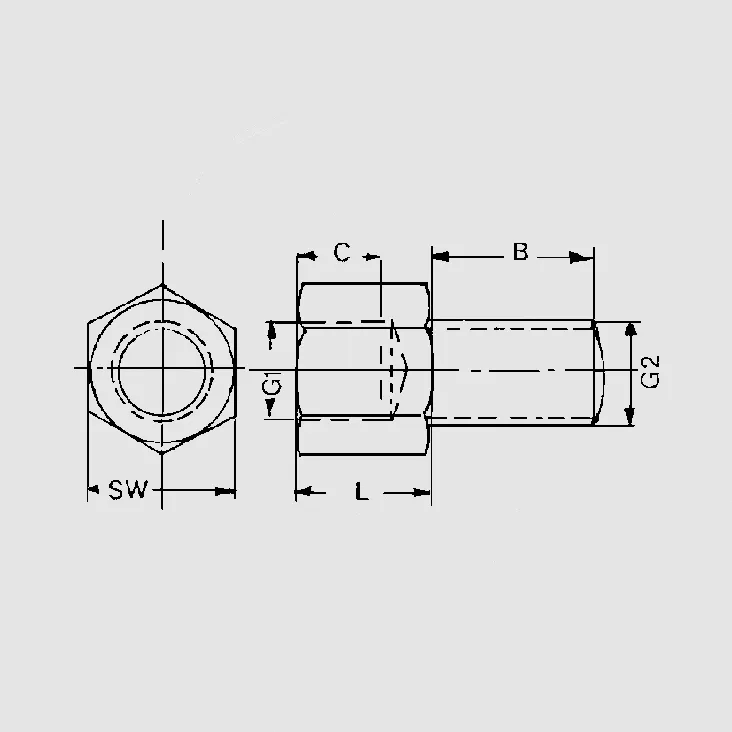

| Dimensions |
| |
| Length Tolerance: | ±0,1mm |
| Key Width (SW): | 5,0 |
| Thread (G1, G2): | UNC4-40 |
| |
| Part Nr. | L | C | B |
| [mm] | [mm] | [mm] | |
| UU4205 | 5 | 3 | 7 |
| UU4305 | 5 | 3 | 8 |
| |||
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 100 pieces |
|
| Manufacturer |
| Various |
|
