ABS Enclosure SK+L
Varenummer:
86-720
Varekode: SSG200
Vægt: 59 g
Produktet udgår - Sælges så længe lager haves!
5 stk.
på lager
Bestil inden kl. 14 i dag for afsendelse i dag
Vis lignende produkter i kategorien "Netdel huse"
Coding of Article Description
|
EU = Euro plug
S = Schuko plug
SK = Schuko contour plug
SD = Schuko socket
E = Grounding clamp
L = Louvred cover
|
 |

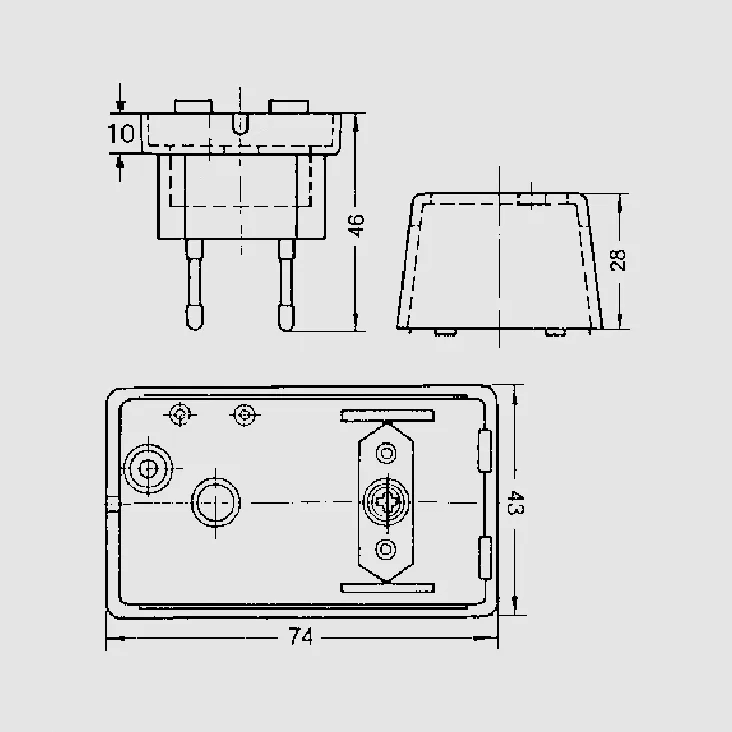

SSG100
|
Black Enclosure with Molded Euro Plug and Louvred Cover
|
|
• Base contains molded Euro plug
• Upper part includes louvred cover
• Plug contacts made of brass, nickel-plated with solder terminals in interior of enclosure, screw-on underneath
|
|
|
|
|
Outer:
|
74x43x38mm
|
Inner:
|
66x37x30mm
|
|
| Norms |
Conforms to protection class 2
|
|
SG500SD
|
Black Enclosure with Molded Schuko Plug, Grounding Clamp and Schuko Socket in Upper Part
|
|
• Base contains molded schuko plug, grounding clamp, without louvred cover
• Upper part with Schuko socket, grounding clamp, without louvred cover
• Suitable for protection class 1 devices
• Plug contacts made of brass, nickel-plated with soldered terminals, screw-on underneath
|
|
|
|
|
Outer:
|
85x55x47mm
|
Inner:
|
80x50x42mm
|
|
| Norms |
Corresponds to protection class 1: EE7, standard VII
|
|
SSG200
|
Black Enclosure with Molded-on Schuko Contour Plug without Grounding Clamp, Louvred Cover
|
|
• Base with molded-on schuko contour plug without grounding clamp, with louvred cover
• Lowered surface in the upper part for sticking on an identification plate, screws on at the top
• Plug contacts made of brass, nickel-plated with solder terminals in interior of enclosure
|
|
|
|
|
Outer:
|
73x53x43mm
|
Inner:
|
68x48x38mm
|
|
| Norms |
Conforms to protection class 2
|
|
SG421
|
Black Enclosure with Molded-on Schuko Plug With Grounding Clamp and Louvred Cover
|
|
• Lower part with molded on Schuko plug, center earthing contact and grounding clamp, plug contacts made of brass, nickel-plated, soldered connection
• Suitable for protection class 1 (CEE7) devices
• Upper part with louvred cover
• Cams available for attaching a PCB
• Opening for cable (Ø 6mm max.), with cams for screwing a strain relief clip with 16mm screw distance (You will find suitable cable clamps for strain relief, part KZ0441 in product group G8485. Suitable screws are available in product group G8191.)
• Screw connection to both enclosure halves in lower part using four self-tapping screws
|
|
|
|
|
Outer:
|
113x69x52mm
|
Inner:
|
105x62x40mm
|
|
| Norms |
Conforms to protection class 1: CEE7, standard VII
|
|
SG422
|
Black Enclosure with Molded-on Schuko Plug with Grounding Clamp and Schuko Socket and Louvred Cover in Upper Part
|
|
• Similar to SG421 but with a schuko plug connector set in upper part
|
|
| Norms |
Conforms to protection class 1: CEE7, Standard VII
|
|
SG1021GR, SG1021SW
|
Enclosure with Molded on Schuko Plug and Grounding Clamp
Colour of SG1021GR: Grey
Colour of SG1021SW: Black
|
|
• Base with molded on Schuko plug and grounding clamp
• Plug contact made of brass, nickel-plated, soldered terminals in inner part of enclosure
|
|
|
|
|
Outer:
|
121x66x55mm
|
Inner:
|
114x59x48mm
|
|
| Manufacturer |
Various
|
|
|
