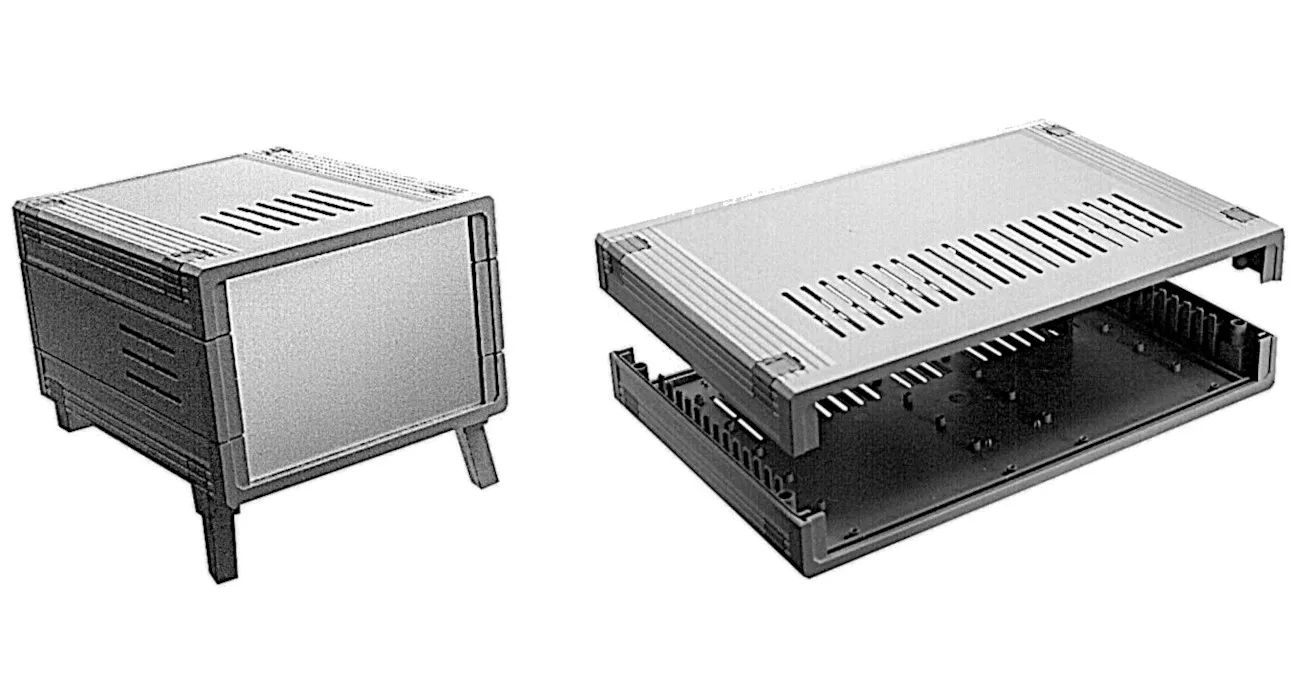

Front panel for UT32 standard enclosure

Varenummer: 86-682
Varekode: UT30009FP
0 stk. på lager
Kontakt os for at få oplyst leveringstid
Vis lignende produkter i kategorien "ABS/Aluminium"
Features
• The enclosure is composed of two shell halves.
• Optional:
• Front and back wall
• Assembly set in two depths
• Four foot stands
• Two stands and two folding feet
Half Shell Enclosures
• The half shell enclosure consists of an ABS with molded, covered louvers in the upper and lower part.
• The surface has a light-grey eroding structure, similar to RAL 7035.
• Due to the symmetry of the half shells, connection possible using four M3 screws in the upper or lower part.
• The screw holes can be covered with eight provided cover caps.
• Cams for cutting screws are available in the enclosure shell halves. The cam mass is especially co-ordinated to meet European card format.
• The nuts in the side panels of the shell half slots are attached at a distance of 10mm, in order to be able to push in panels vertically.
Front and Back Wall
• Made of anodized aluminium, insertable, 2mm thick, 11 front panels available in different variations
Assembly Set UT2_
• The enclosure height can be extended by a maximum of three mounting sets, each 45,72mm (1.8").
• Material ABS, color light-grey, similar to RAL 7035.
• The assembly parts are connected with M3 screws underneath each other.
Mountable Leg Set UTAS
• This mountable leg set consists of four firm leg stands in agate grey (similar to RAL 7038)
• Enclosure has more ground room (12mm) which particularly improves the air circulation of either horizontally or vertically stacked enclosures.
• The legs can alternatively be used for horizontal or vertical placed enclosures.
Foldable Leg Set UTASK
• This mountable leg set consists of two folding legs and two firm leg stands in agate grey (similar to RAL 7038)
• Enclosure is diagonally set up to facilitate e.g. reading displays. The legs can be alternatively used for horizontal or vertical enclosures.
Selection Table
    Part Nr. Description UT32009L 2 Half Shells UM3, Louvred UT32609L 2 Half Shells, UM3, Deep, Louvred UT52011L 2 Half Shells UM5, Louvred UT62009L 2 Half Shells UM6, Louvred UT62609L 2 Half Shells UM6, Deep, Louvred UT2009LAB Assembly Set, Louvred UT2609LAB Assembly Set, Deep, Louvred UT30009FP 1 Front Panel For UM3 Without AB UT30018FP 1 Front Panel For UM3 With 1AB UT50011FP 1 Front Panel For UM5 Without AB UT50020FP 1 Front Panel For UM5 With 1AB UT60009FP 1 Front Panel For UM6 Without AB UT60018FP 1 Front Panel For UM6 With 1AB UT60027FP 1 Front Panel For UM6 With 2AB UTAS Mountable Leg For Horizontal or Vertical Enclosure UTASK Foldable Leg For Horizontal or Vertical Enclosure
Dimensions
        Part Nr. W H D   [mm] [mm] [mm] UT32009L 157,5 62,2 199 UT32609L 157,5 62,2 259 UT52011L 224,2 72,4 199 UT62009L 290,9 62,2 199 UT62609L 290,9 62,2 259 UT2009LAB   45,72 199 UT2609LAB   45,72 259 UT30009FP   148,7 56,3 UT30018FP   148,7 102,0 UT50011FP   215,6 66,4 UT50020FP   215,6 112,2 UT60009FP   282,0 56,3 UT60018FP   282,0 102,0 UT60027FP   282,0 147,7
W, H, D = Outer Dimensions
Manufacturer
Bopla
http://www.bopla.de
Inkl. moms
Kr. 35,63
  • v/10 – Kr. 30,28
  • v/25 – Kr. 23,16
