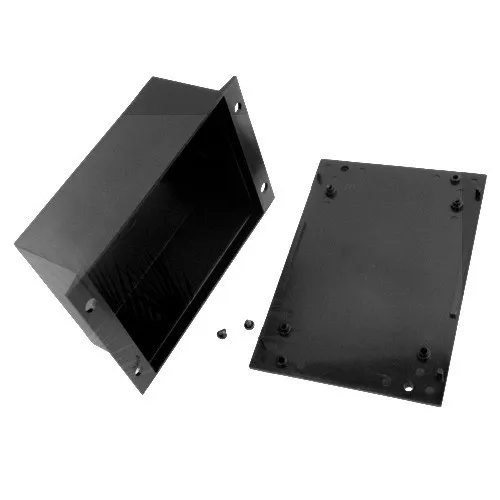

ABS Enclosure 67x80x31 Black
Varenummer:
86-646
Varekode: KG516
Vægt: 38 g
0 stk.
på lager
Ved bestilling nu, får vi dem hjem tirsdag d. 27/10
Specifikationer
| Farve | sort |
|---|---|
| Materiale | plastik |
| Produkt | boks |
| Bredde | 8 cm |
| Længde | 6.7 cm |
| Højde | 3.1 cm |
Gruppe:
G4331
ABS Universal Enclosures
Series: KG51
With Flanged Lid
Colour: Black
ABS Universal Enclosures
Series: KG51
With Flanged Lid
Colour: Black
| KG515 |
 |
| Features |
| Base plate and cover are bolted onto the wall through four holes at the corners ( 3,3mm) Eight cams to bond a supporting plate |
|
| KG516, KG518 |
|
| Features |
| Attachment to the wall by two holes at the corners ( 4,3mm) Two further holes to bolt ground plate and cover before wall assembly Spacing holders for the lower wall part, 1,5mm (KG516), 3mm (KG518) |
|
| Dimensions |
| Part Nr. | A | B | C | H | E | F |
| [mm] | ||||||
| KG515 | 68 | 45 | 54 | 21 | 30 | 38 |
| KG516 | 98 | 67 | 80 | 31 | 43 | 57 |
| KG518 | 130 | 90 | 109 | 42 | 66 | 85 |
| ||||||
| Part Nr. | e | f | h | h1 | d |
| [mm] | |||||
| KG515 | 30 | 60 | 1,5 | - | 2 |
| KG516 | 46 | 88 | 1,5 | 2,0 | 2 |
| KG518 | 60 | 119 | 2,5 | 2,5 | 2 |
| |||||
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 5 pieces |
|
| Manufacturer |
| Various |
|
Inkl. moms
Kr. 40,79
- v/10 – Kr. 33,98
- v/25 – Kr. 27,19
- v/100 – Kr. 23,11
