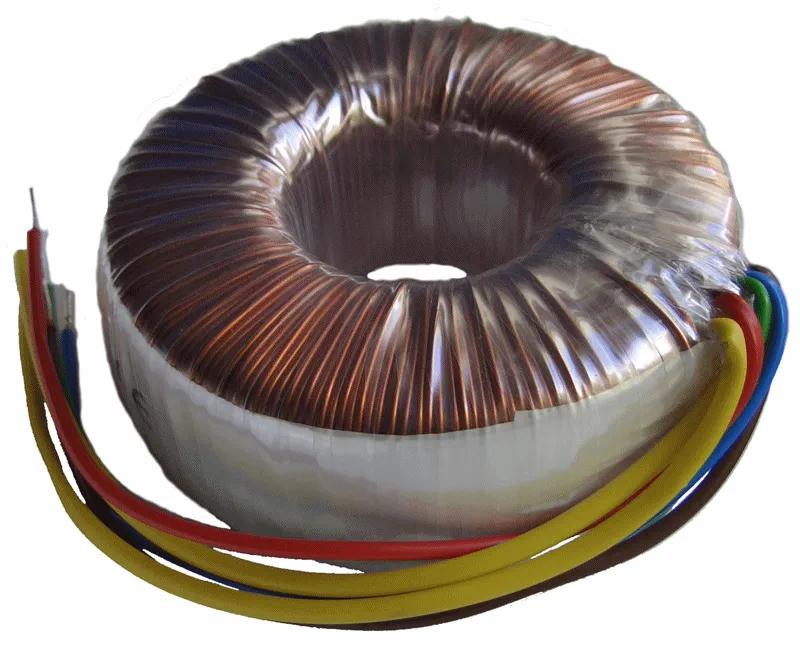

Ringkerne Transformator 80VA 1x230V 2x12V
Varenummer:
86-554
Varekode: TRT80212
Vægt: 955 g
1 stk.
på lager
| Technical Specifications |
 |
|
| Power: | 80VA |
| Primary Voltage, ±10%: | 230V |
| Secondary Voltage | |
| TRT80212: | 2x12V |
| Copper Loss, Typ. (120°C): | 11,8W |
| Iron Loss, Typ.: | 0,51W |
| No-Load Voltage, Typ. (230V): | 5,6mA |
| Dimensions: | 92x36mm |
| Weight: | 1,0kg |
|
|
| Labelling |
 |
|
| Approvals |
  05 |
| Minimum order quantity: 1 PKU = 1 piece Delivery contents: transformer, 1 dished steel washer, 2 rubber pads, 1 central screw, 1 bolt |
|
Ringkerne Transformator 80VA 1x230V 2x12V
86-554
/ TRT80212
1 stk.
på lager
| Technical Specifications |
|
|
| Power: | 80VA |
| Primary Voltage, ±10%: | 230V |
| Secondary Voltage | |
| TRT80212: | 2x12V |
| Copper Loss, Typ. (120°C): | 11,8W |
| Iron Loss, Typ.: | 0,51W |
| No-Load Voltage, Typ. (230V): | 5,6mA |
| Dimensions: | 92x36mm |
| Weight: | 1,0kg |
|
|
| Labelling |
| |
|
| Approvals |
| 05 |
| Minimum order quantity: 1 PKU = 1 piece Delivery contents: transformer, 1 dished steel washer, 2 rubber pads, 1 central screw, 1 bolt |
|
