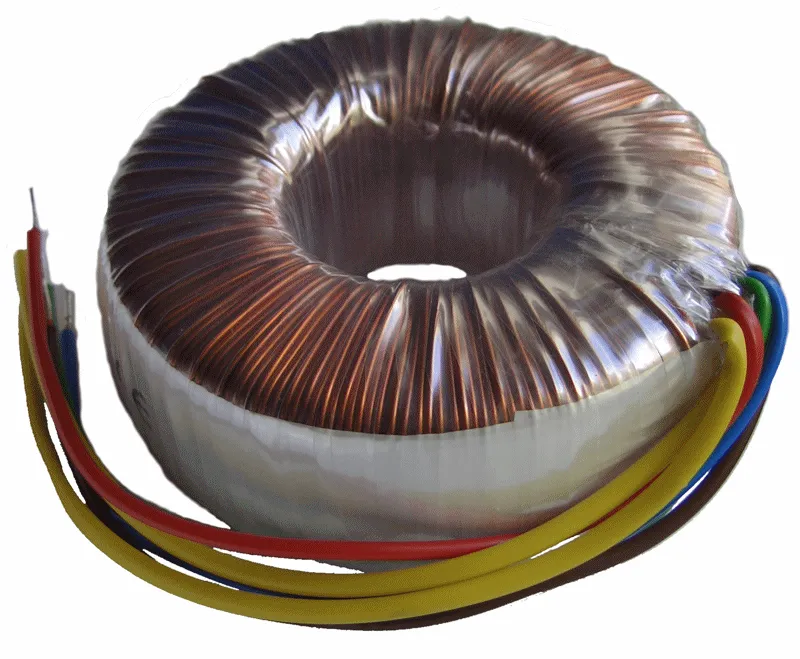

Ringkerne Transformer 30VA 1x230V 2x22V
Varenummer:
86-542
Varekode: TRT30222
Vægt: 513 g
2 stk.
på lager
Gruppe: D8111
TALEMA Toroidal Transformers
Open Style
Output: 30VA
Input Voltage: 1x230V or 2x115V
| Technical Specifications |
 |
|||||||||||||||||||||||||||||||
| Power: | 30VA | Primary Voltage, ±10% | TRT_: | 1x230V | TRT_UL: | 2x115V | Secondary Voltage | TRT30209: | 2x9V | TRT30212: | 2x12V | TRT30215_: | 2x15V | TRT30218: | 2x18V | TRT30222: | 2x22V | Copper Loss, Typ. (120°C): | 5,0W | Iron Loss, Typ.: | 0,26W | No-Load Current, Typ. (230V): | 2,8mA | Dimensions: | 70x32mm | Weight: | 0,5kg | ||||
|
|||||||||||||||||||||||||||||||
| Note |
| General product information see introduction text "D8111 to D8128" before this product group. |
|
| Labelling |
 |
|
| Approvals |
TRT_:   05TRT_UL:  05 |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece Delivery contents: transformer, 1 dished steel washer, 2 rubber pads, 1 central screw, 1 bolt |
|
| Manufacturer |
 |
| http://www.talema.de |
|
