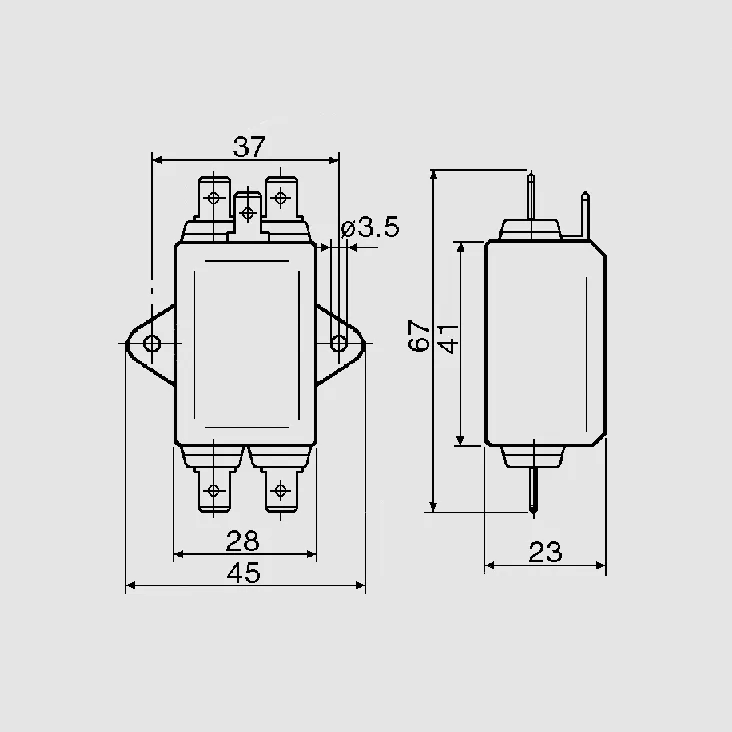

FIL2150_
|
 |
• Compact design
• Universal application
• Quality metal housing
• Faston plug terminal 6,3x0,8mm
|
|
FIL3100ZF
|
|
• Compact design
• Universal application
• Faston plug terminal 2,8x0,5mm
|
|
FIL3300ZC, FIL3600, FIL3300ZD, FIL3640
|
|
• Compact design
• Universal application
• Quality metal housing
• Faston plug terminal 6,3x0,8mm
|
|
|
|
|
Rated Voltage:
|
250V, 50/60Hz
|
Voltage Test, 2s:
|
Line to Ground 3kV DC or 1,8kV AC
|
Line to Line 1,7kV DC
|
Temperature Range:
|
-25...+85°C
|
Climatic Category:
|
HPF (25/085/21)
|
|
|
|
|
|
|
|
|
Part Nr.
|
IR
|
L
|
CX
|
CY
|
IL
|
R
|
| |
[A]
|
[mH]
|
[μF]
|
[nF]
|
[mA]
|
[MW]
|
| FIL2150 |
1,5
|
2x10
|
0,015
|
2x2200
|
2x0,2
|
-
|
| FIL2150-6,5 |
6,5
|
2x1,0
|
0,015
|
2x2200
|
2x0,2
|
-
|
| FIL2150-10 |
10
|
2x0,5
|
0,033
|
2x2200
|
2x0,2
|
1,0
|
| FIL3100ZF |
6,5
|
2x1
|
0,1
|
2x2500
|
2x0,23
|
-
|
IR = Rated Current at 40°C, L = Inductance, IL = Leakage Current, max. at 220V, 50Hz, R = Resistance
|
|
|
|
|
|
|
|
|
|
|
Part Nr.
|
IR
|
L
|
L2
|
CX1
|
CX2
|
CY
|
IL
|
R
|
FIL_
|
[A]
|
[mH]
|
[mH]
|
[μF]
|
[μF]
|
[nF]
|
[mA]
|
[MW]
|
| 3300ZC |
10
|
2x0,5
|
2x0,5
|
0,15
|
0,15
|
2x2200
|
2x0,2
|
1
|
| 3600 |
16
|
2x1
|
-
|
-
|
0,6
|
2x2500
|
2x0,23
|
0,47
|
| 3300ZD |
20
|
2x0,5
|
2x0,5
|
0,15
|
0,15
|
2x2200
|
2x0,2
|
1
|
| 3640 |
40
|
2x0,23
|
-
|
-
|
0,6
|
2x4700
|
2x0,43
|
0,47
|
IR = Rated Current, at 40°C, L = Inductance, IL = Leakage Current, Max. at 220V, 50Hz, R = Resistance
|
|
| Approvals |
 0565-3,
FIL3640: No Approvals
|
|
|
