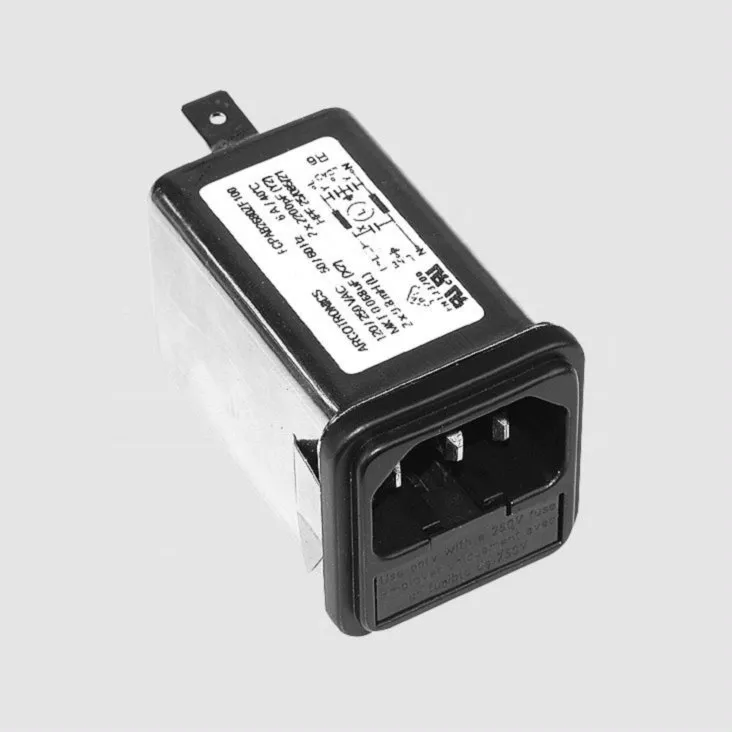

Line Filter IEC Plug Fuse 6A Snap-in
Varenummer:
86-353
Varekode: FIL2680CP
Vægt: 60 g
0 stk.
på lager
Kontakt os for at få oplyst leveringstid
| Features |
| • Filter built in a metal housing with integrated power line connector and fuse holder • Fuse holder for 5x20mm fuse • Faston plug terminal 6,3x0,8mm • FIL2680BP: Screw mounting • FIL2680CP: Snap-in mounting |
 |
| Technical Specifications |
| |
| Rated Voltage: | 250V, 50/60Hz |
| Dielectric Strength, 2s | |
| Line To Ground: | 3kV DC or 1,8kV AC |
| Line To Line: | 1,7kV DC |
| Temperature Range: | -25...+85°C |
| Climatic Category: | HPF (25/085/21) |
| |
| Part Nr. | IR | L | CX | CY | IL |
| [A] | [mH] | [µF] | [pF] | [mA] | |
| FIL2680BP | 6 | 2x0,8 | 0,068 | 2x2200 | 2x0,2 |
| FIL2680CP | 6 | 2x0,8 | 0,068 | 2x2200 | 2x0,2 |
| IR = Rated Current, at 40°C, L = Inductance, IL = Leakage Current, Max. at 220V, 50Hz | |||||
| |||||
| Approvals |
 EN133200,  c |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece |
|
| Manufacturer |
 |
| http://www.kemet.com |
|
Inkl. moms
Kr. 181,41
- v/10 – Kr. 151,17
- v/25 – Kr. 120,94
- v/100 – Kr. 108,84
